Headlamp Aiming (Alternate Procedure)

TOOL REQUIRED:
J 25300-B Headlamp Aiming Kit
1. Prepare vehicle. Refer to Aim Preparation.
2. The universal aimer should be used on a level floor or calibrated for floor slope.

Headlamp Adjustment Screws:

3. Select and assemble the universal adapter that fits the aiming pad pattern on the lens of the headlamp.

Composite Aiming Setting:

4. Move the adjustment rods to the number that agrees with the number located on the headlamp lens.
5. Attach adapters making certain that the correct adapter is used with the correct side aimer.

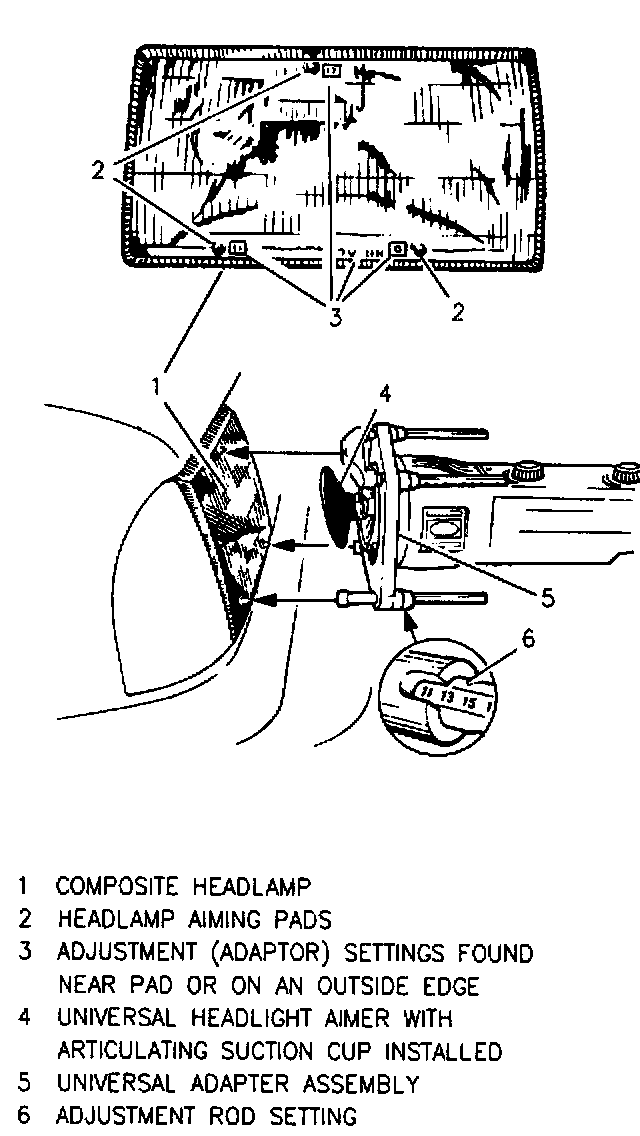

Composite Aiming Mount:

6. Place the aimers with adapters on to their respective sides making sure all adjustment rods are contacting the aiming pads. It may be necessary to add or remove an extension stud.
7. Aim headlamps according to the instructions included in J 25300-B headlamp aiming kit.
