Home
>>
Oldsmobile
>>
1998
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Diagrams
Power Window Switch: Diagrams
LF Power Window Switch: C1:
RR Power Window Switch:
LF Power Window Switch: C2:
RF Power Window Switch:

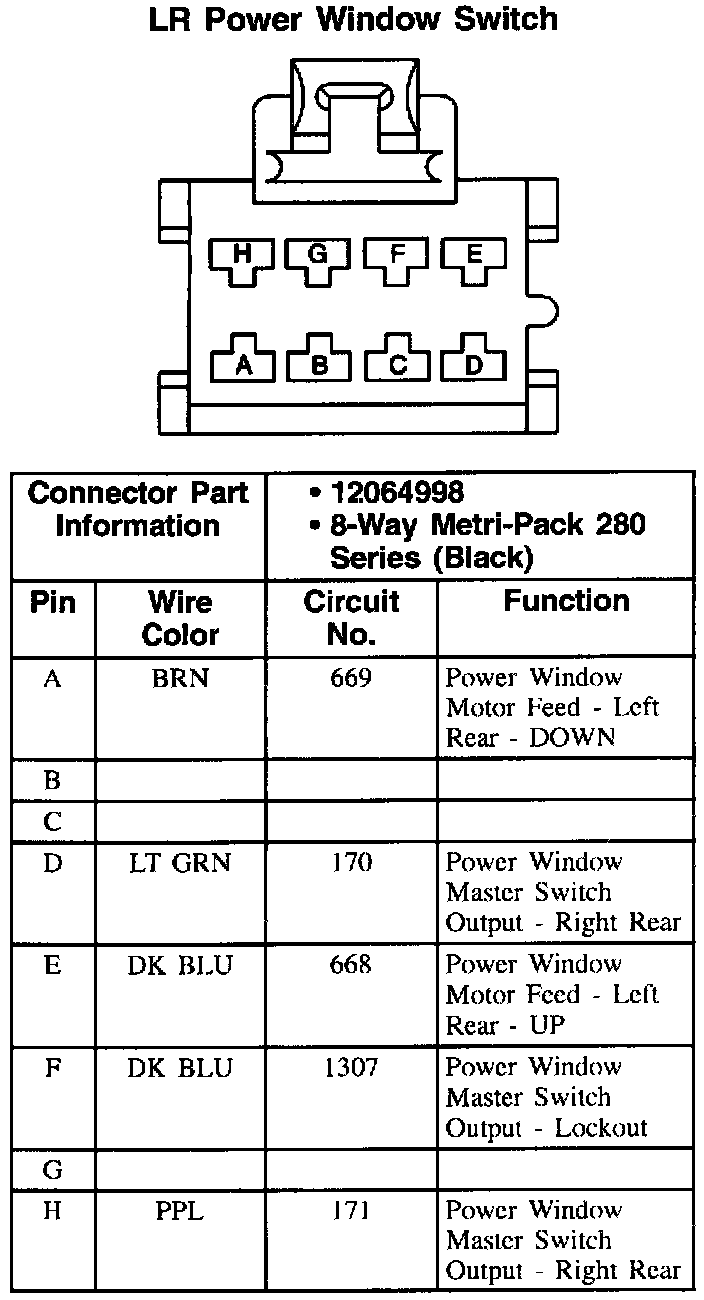

LR Power Window Switch:
