Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

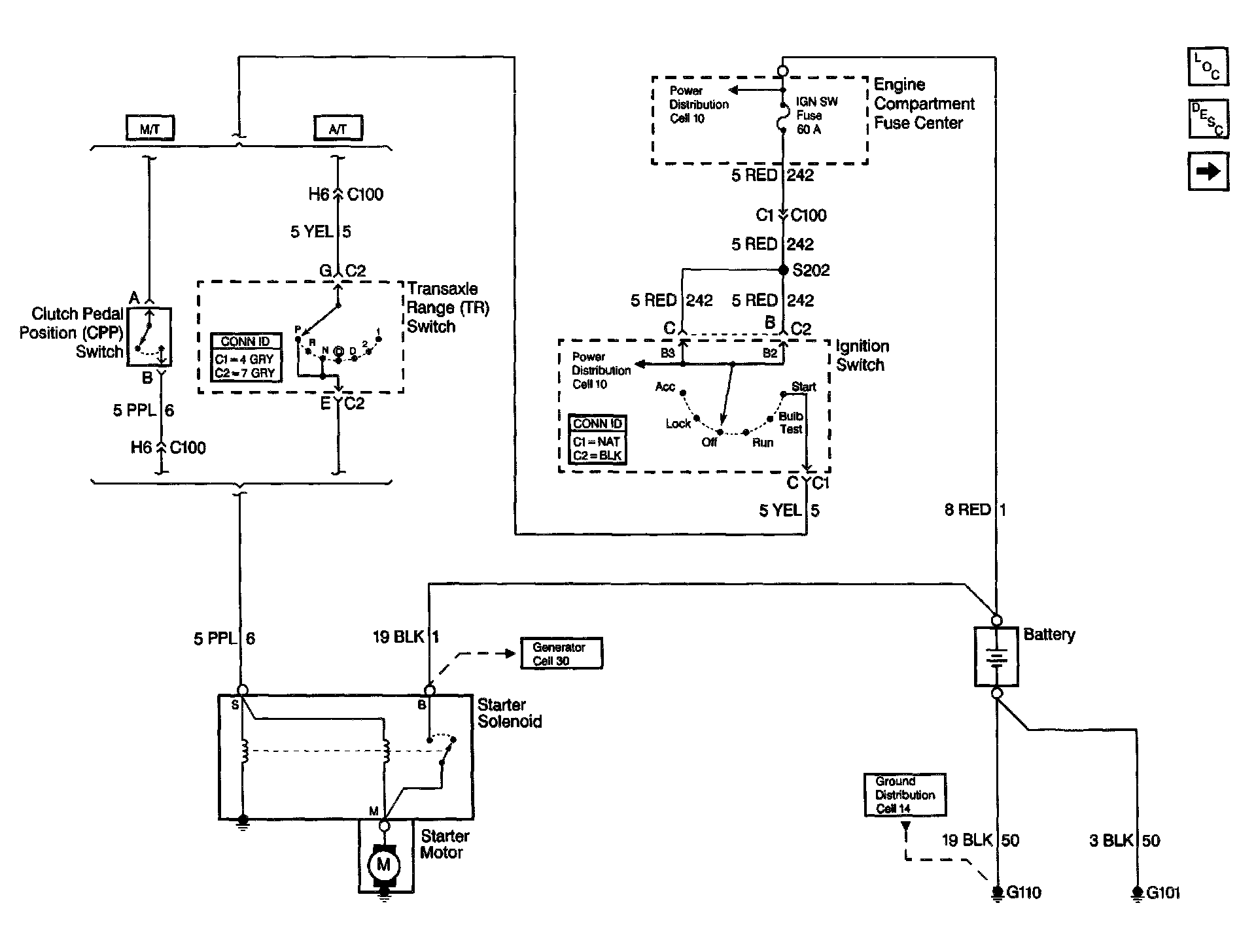

Starting And Charging Schematics Cell 30: Starting System:
