Wiper Blade: Testing and Inspection

Blade Element Set Check

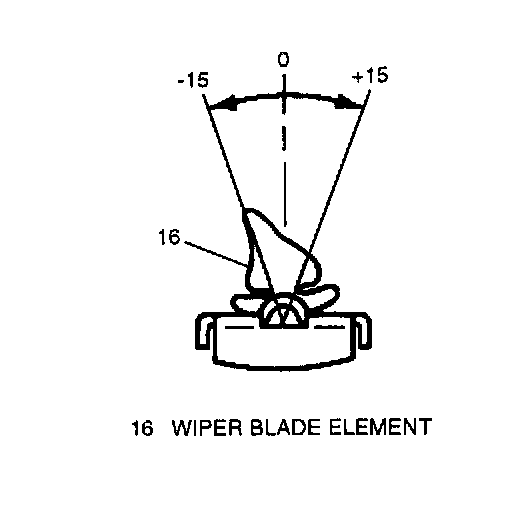

Remove the wiper blade assemblies from the wiper arm assemblies. Refer to "Wiper Blade Assembly Replacement." Look down the length of the wiper blade element (16). The rubber part of the wiper blade element (16) that contacts the glass must be on the centerline of the wiper blade assembly +1- 15 degrees. Replace the wiper blade element (16), if necessary. Wiper Blade Assembly Replacement
