Home >> Oldsmobile >> 1998 >> Eighty-Eight V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Headlights

Headlights

Headlamps:

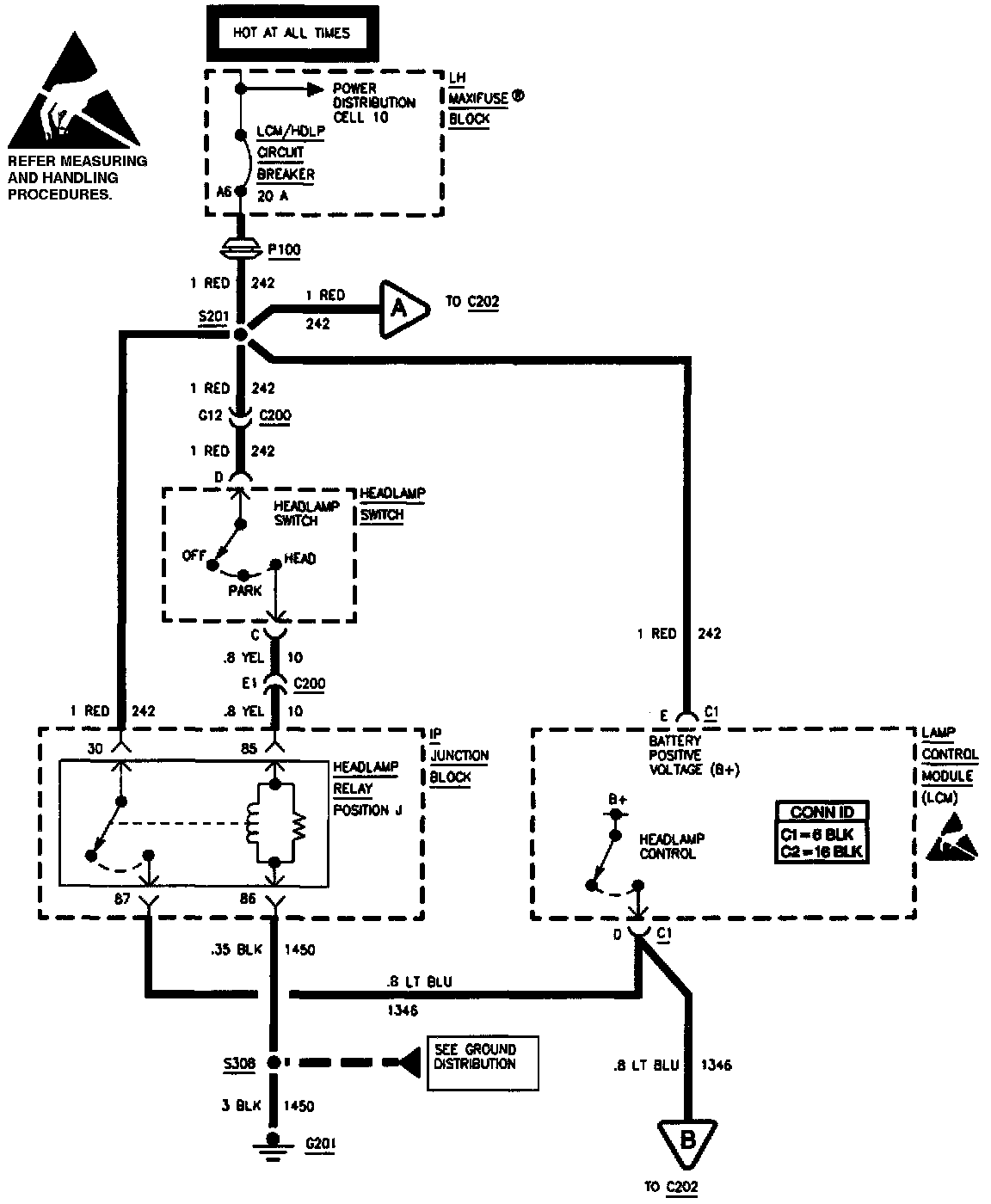

Headlamps (Part 1 Of 3):




Headlamps (Part 2 Of 3):




Headlamps (Part 3 Of 3):
