Home >> Oldsmobile >> 1998 >> LSS V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats >> Recline W/AG1

Recline W/AG1

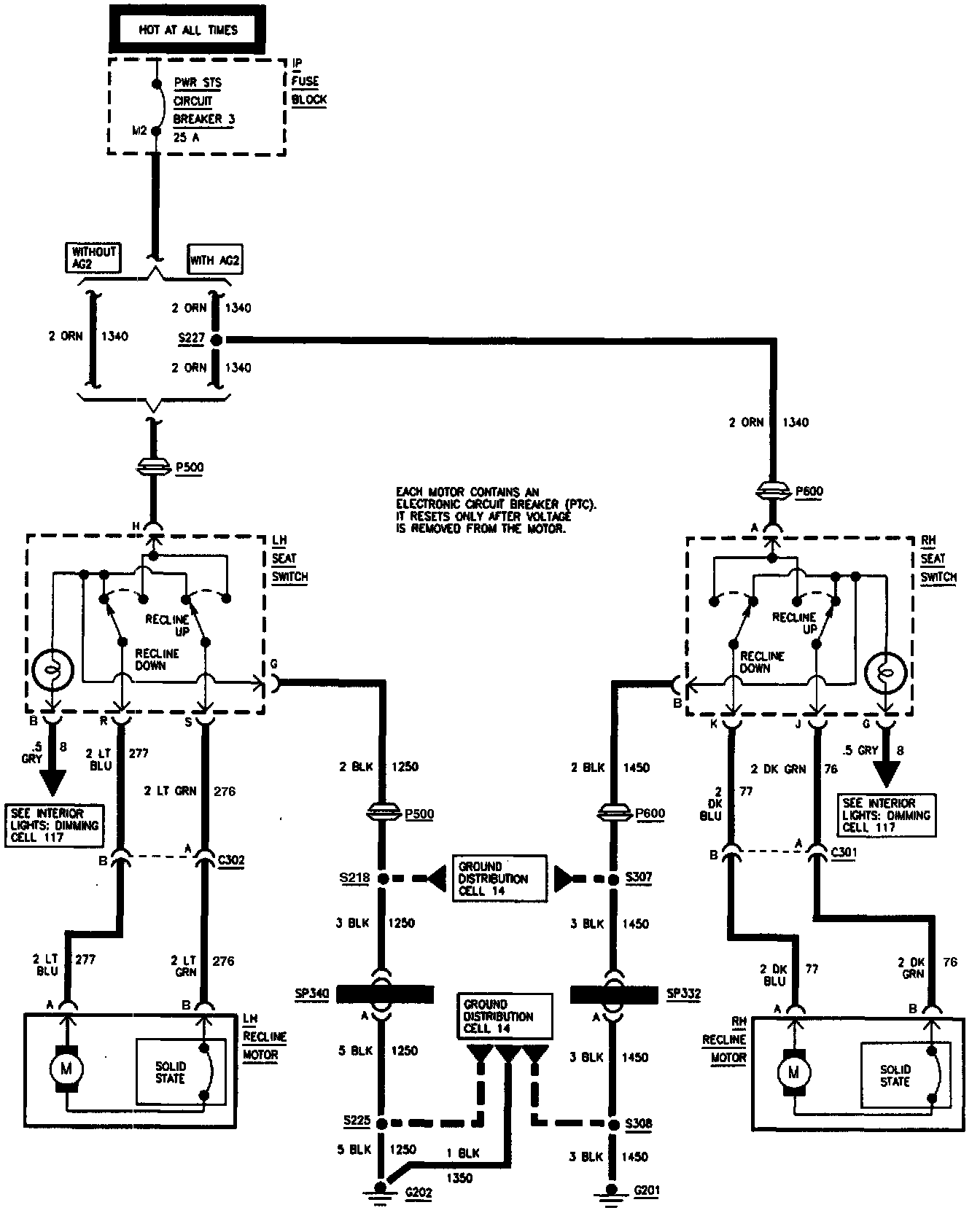

Power Seats: Recline - With AG1:
