Instrument Panel Cluster Replacement

REMOVAL PROCEDURE
1. Remove the instrument panel (IP) cluster trim plate.

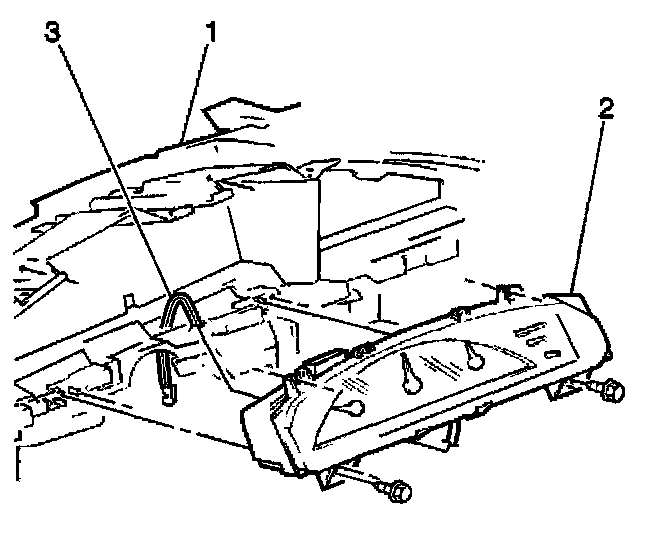

2. Remove the PRNDL cable (3), if equipped.
3. Remove the instrument cluster fasteners to the IP (1).
Pull the IP cluster (2) rearward.
4. Disconnect the cluster connector.
5. Remove the instrument panel (IP) cluster (2).

INSTALLATION PROCEDURE
1. Connect the instrument cluster connector to the cluster (2).
2. Install the PRNDL cable (3), if equipped.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

3. Install the instrument panel cluster fasteners.

Tighten
Tighten the fasteners to 1.6 N.m (14 lb in).

4. Install the IP cluster trim plate.
