Fuses
>>
LH BEC BATT 2
LH BEC BATT 2

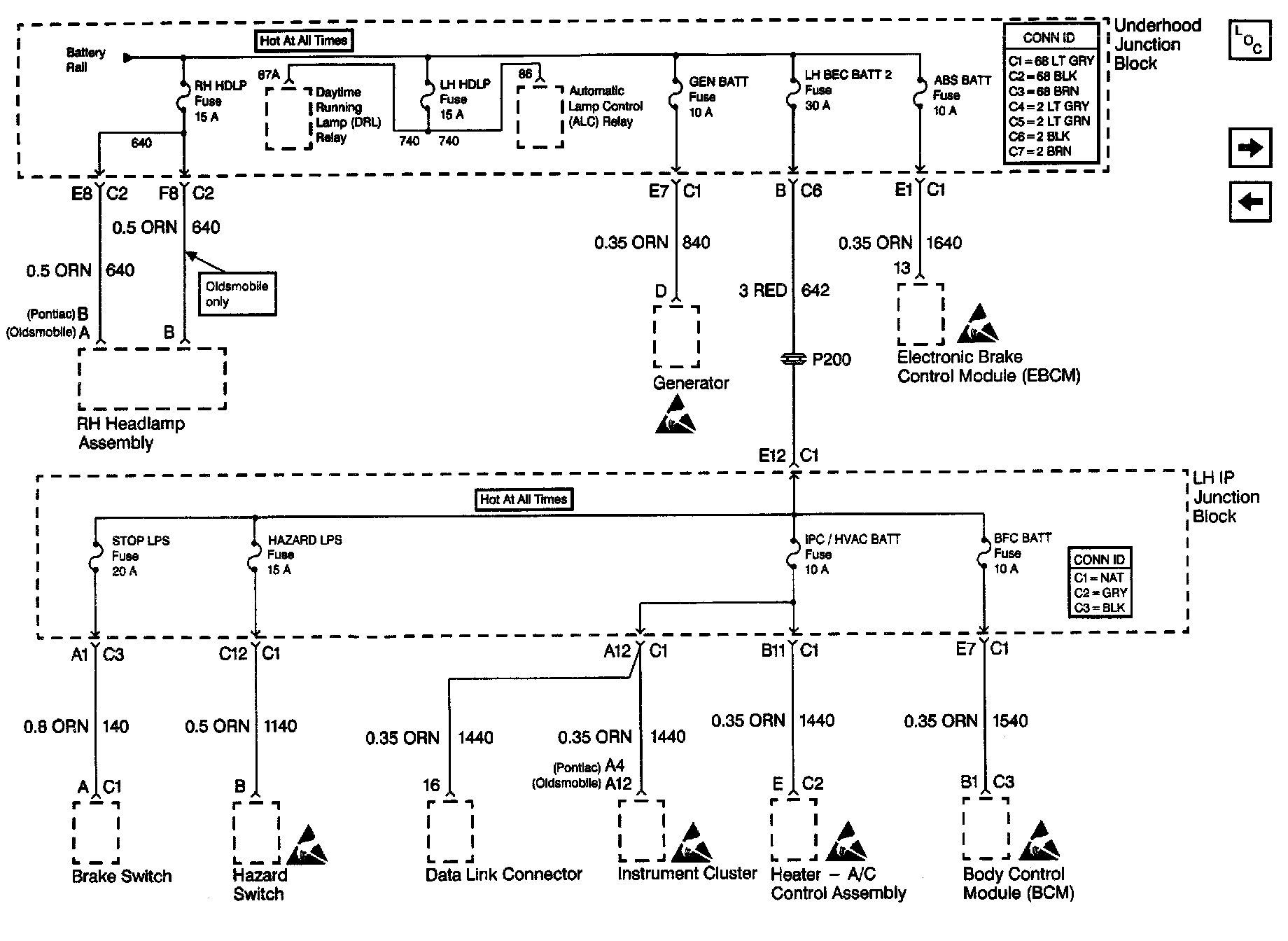

Power Distribution Schematics: RH HDLP, LH HDLP,GEN BATT, LH BEC BATT2, ABS BATT, STOP LPS, HAZARD LPS, IPC/HVAC BATT And BFC BATT Fuses:
