Traction Active Indicator Not Operating Properly

CIRCUIT DESCRIPTION
When the EBTCM is operating in the traction control mode, the EBTCM will command the instrument cluster to turn ON the TRACTION ACTIVE indicator. This will alert the driver that the traction control system is operating.

DIAGNOSTIC AIDS
The following conditions may cause improper operation of the TRACTION ACTIVE indicator:
^ An open fuse
^ An open bulb
^ A malfunctioning EBTCM
^ A malfunctioning instrument cluster

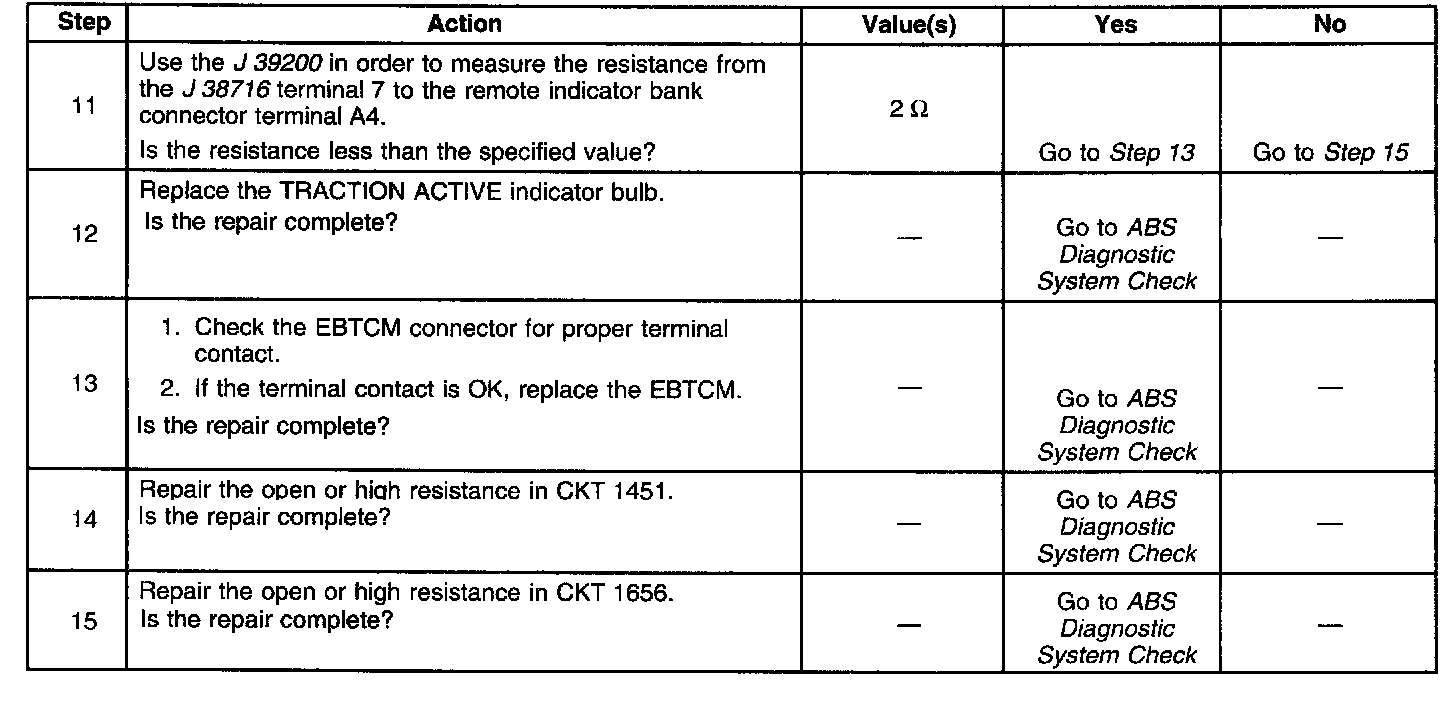

Part 1 Of 2:

Part 2 Of 2:

TRACTION ACTIVE INDICATOR NOT OPERATING PROPERLY (OLDSMOBILE)
