C202

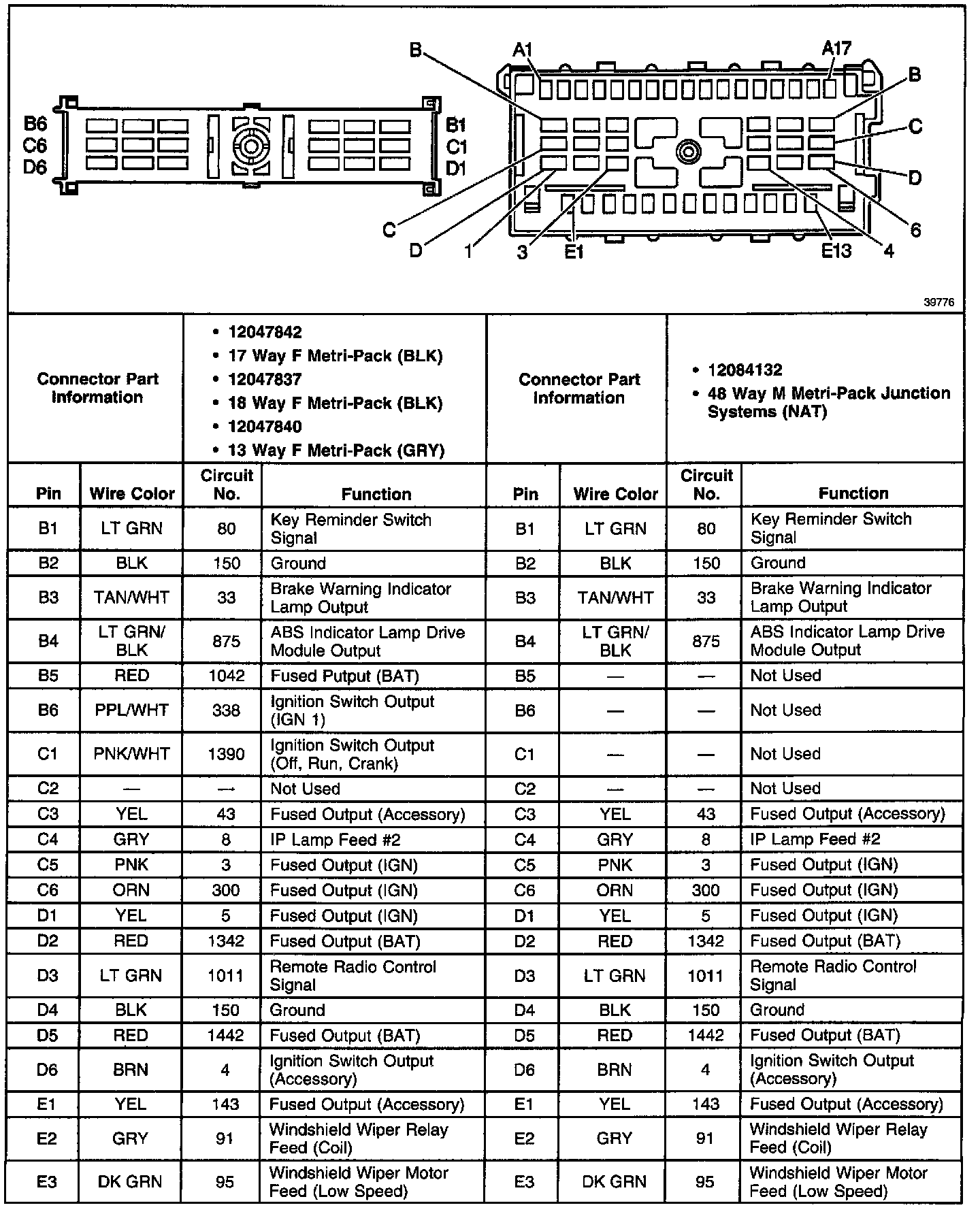

C202 (Oldsmobile) (Part 1 Of 3):



C202 (Oldsmobile) (Part 2 Of 3):



C202 (Oldsmobile) (Part 3 Of 3):
