15. Crankshaft Front Oil Seal Removal

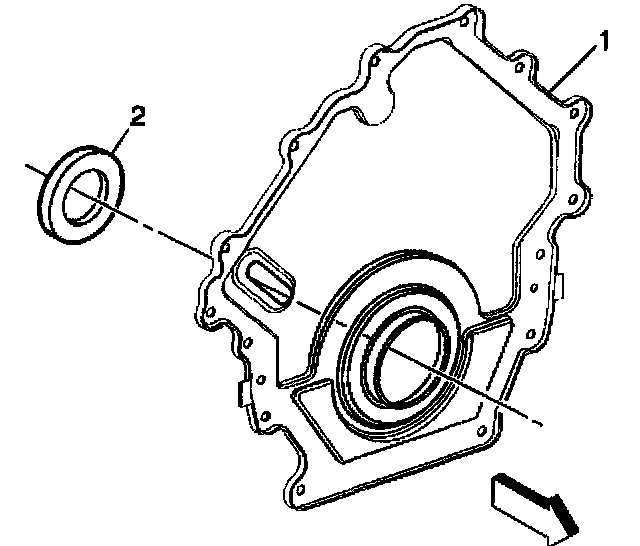

1. Insert a screwdriver between the engine front cover (1) and the front crankshaft oil seal (2).
2. Pry out the seal. The seal should remove easily.

Important: Be careful not to gouge the front cover when prying out the seal.
