Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Dimming Schematics >> Instrument Panel and Console Lamps

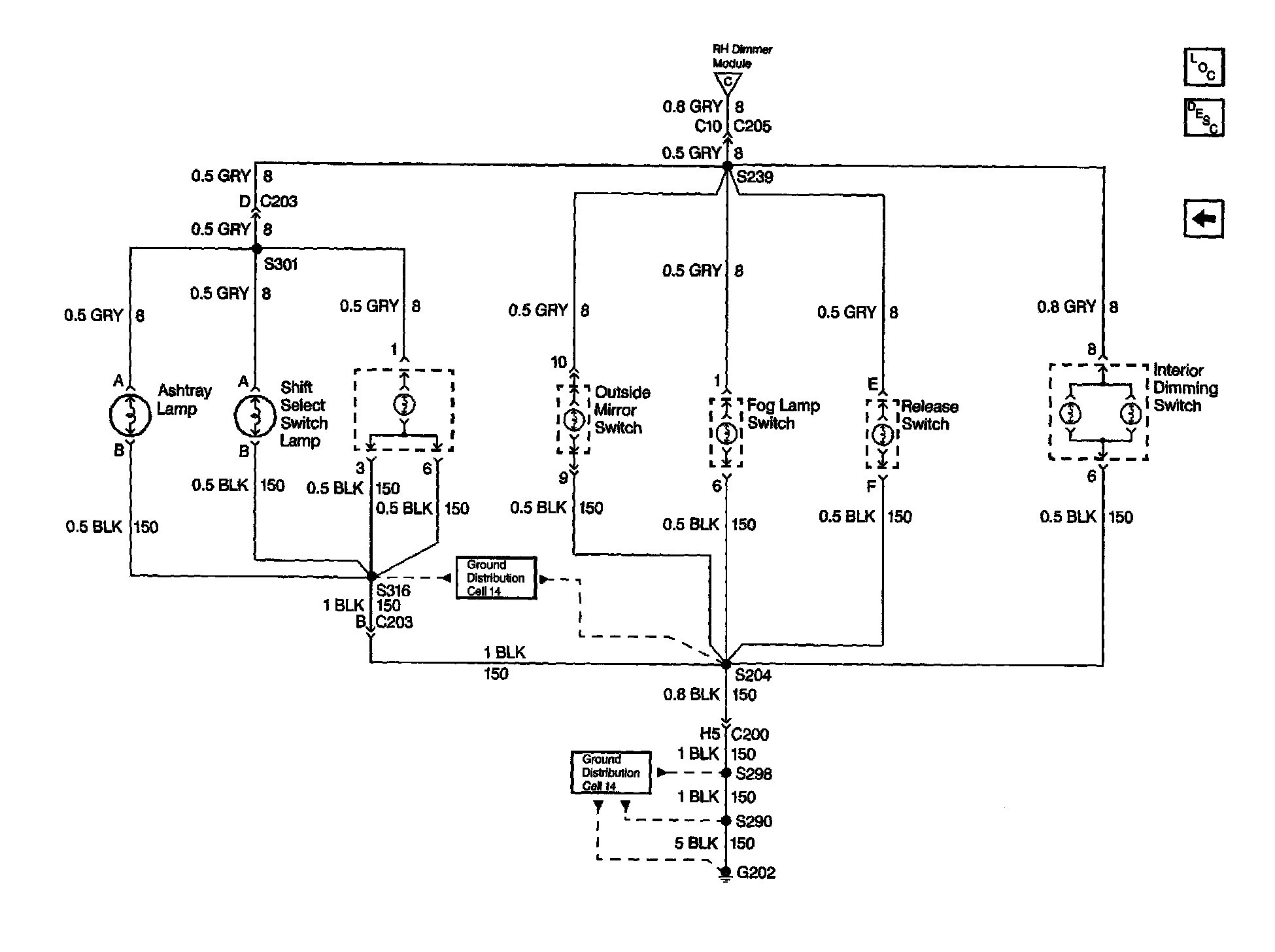

Instrument Panel and Console Lamps

Interior Lights Dimming Schematics (Oldsmobile): Instrument Panel And Console Lamps:
