Installation Procedure

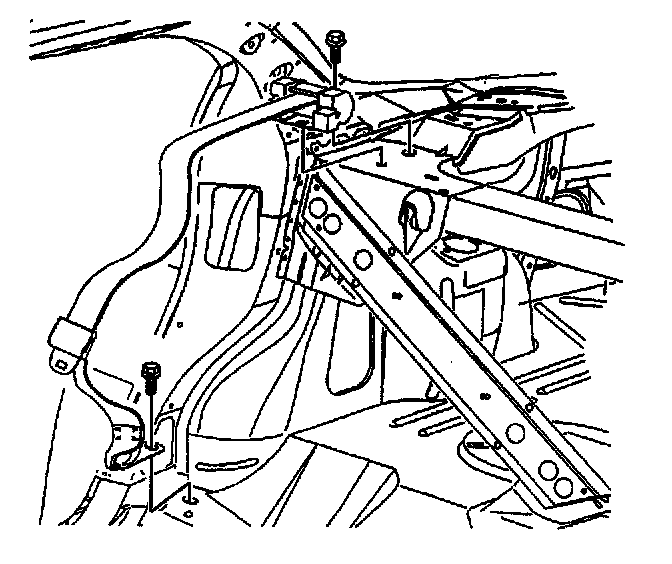

1. Install the outside belt assembly.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the lower anchor bolt.

Tighten
Tighten the lower anchor bolt to 41 N.m (30 lb ft).

3. Install the upper retractor anchor bolt.

Tighten
Tighten the lower anchor bolt to 41 N.m (30 lb ft).

4. Install the rear shelf trim panel.
5. Install the sail panel trim.
6. Install the rear seatback.
7. Install the center lap belt assembly.
8. Install the anchor bolts.

Tighten
Tighten the anchor bolts to 41 N.m (30 lb ft).

9. Install the rear seat cushion.
