Radio Replacement

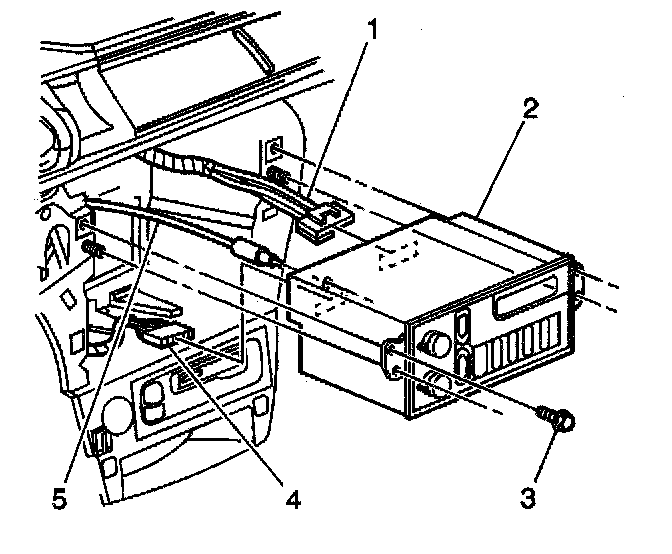

REMOVAL PROCEDURE
1. Remove the instrument panel accessory trim plate.
2. Remove the screws (3) from the radio (2).
3. Remove the radio (2) from the instrument panel.
4. Disconnect the electrical connectors (1, 4) from the rear of the radio (2)
5. Disconnect the antenna lead (5) from the rear of the radio (2).

INSTALLATION PROCEDURE
1. Connect the antenna lead (5) to the radio (2).
2. Connect the electrical connectors (1, 4) to the radio (2)
3. Push the radio (2) into place in the instrument panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the screws (3) to the radio (2).

Tighten
Tighten the screws to 2 N.m (18 lb in).

5. Install the instrument panel accessory trim plate.
