Sunroof / Moonroof: Adjustments

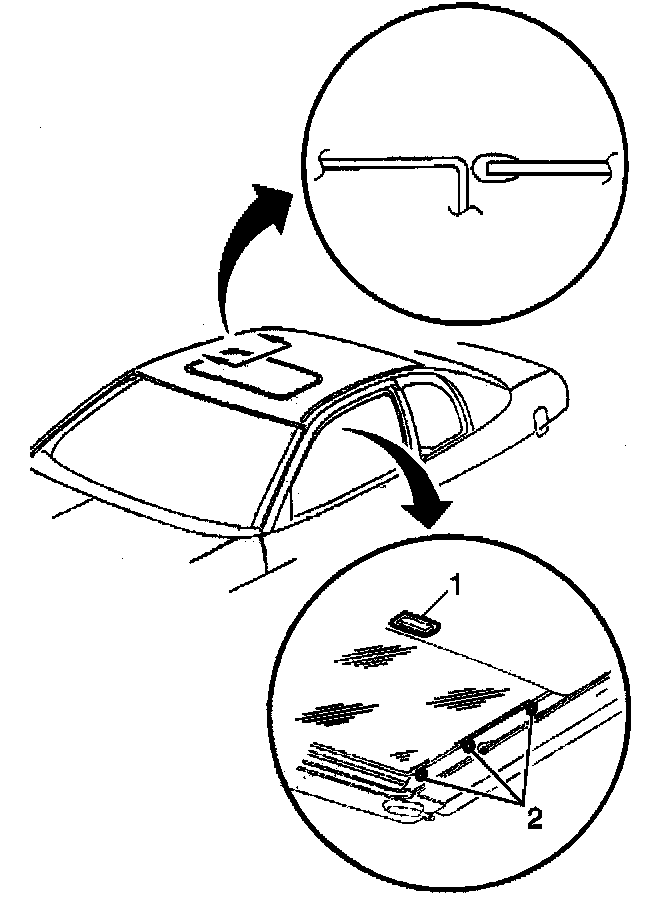

Sunroof Glass Height and Opening Fit Adjustment




1. Slide the sunroof sunshade completely open.
2. Completely close the sunroof window.
3. Loosen the adjusting screws (2).
4. Adjust the corners of the window panel.




5. Adjust the front of the sunroof window (1) to 1 mm (0.03 in) below the top surface of the roof panel.
6. Adjust the rear of the sunroof window (3) to 1 mm (0.03 in) above the top surface of the roof panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.




7. Tighten the adjusting screws (2).

Tighten
Tighten the adjusting screws to 4 N.m (35 lb in).
