Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Center Mounted Brake Lamp
>>

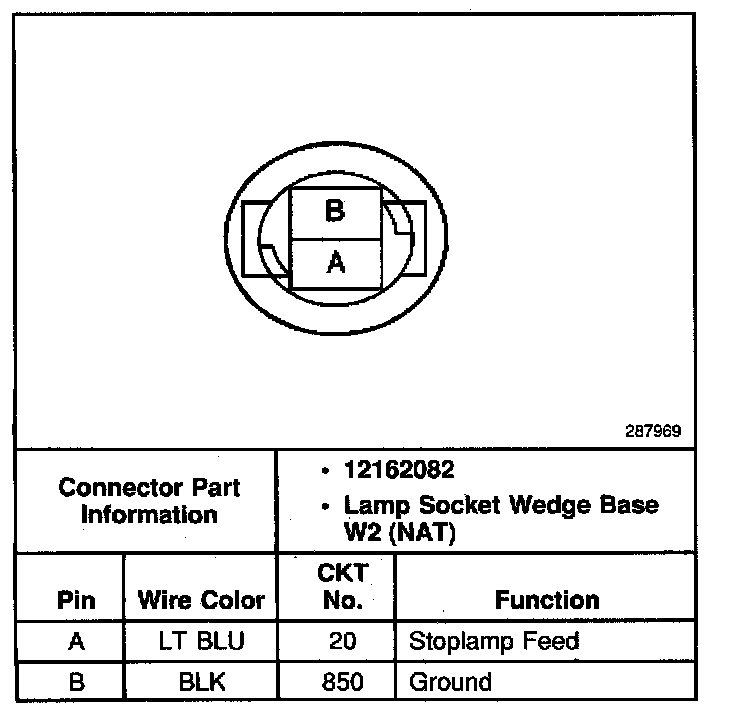

High Mounted Stoplamp Assembly C2
High Mounted Stoplamp Assembly C2
High Mounted Stoplamp Assembly C2:
