Home >> Oldsmobile >> 1999 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Front Speakers

Front Speakers

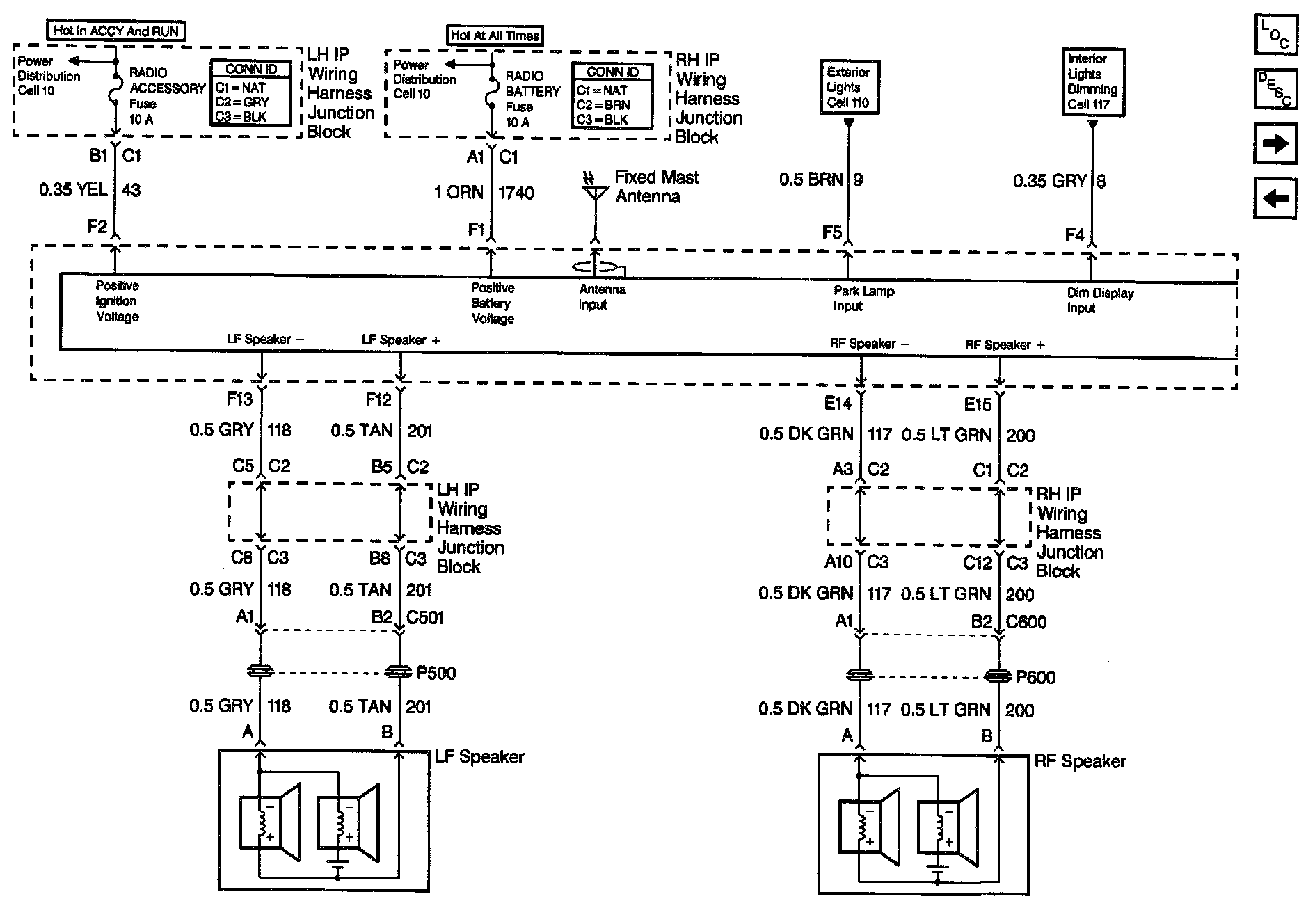

Radio/Audio System Schematics: Front Speakers:
