Cigarette Lighter: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the accessory trim plate.
3. Disconnect the electrical connector.

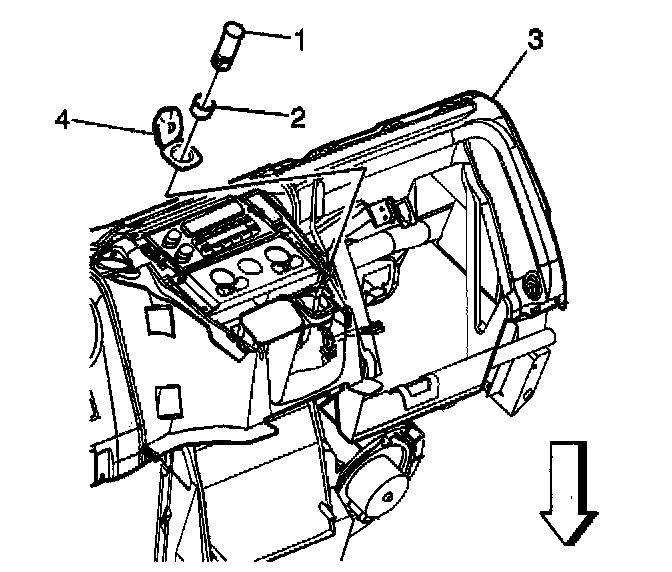

4. Remove the cigar lighter housing (1) from the trim plate (4).

INSTALLATION PROCEDURE
1. Install the cigar lighter housing (1) to the trim plate (4).
2. Connect the electrical connector.
3. Install the accessory trim plate.
4. Connect the negative battery cable.
