Instrument Panel (IP) - Accessory Trim Plate Replacement

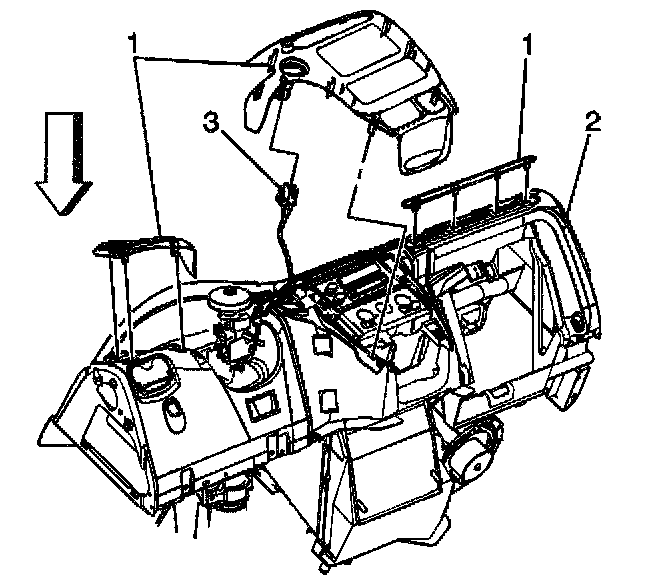

REMOVAL PROCEDURE
1. Remove the ignition key trim cover. Pry off with a flat bladed tool.
2. Gently pull the plate (1) rearward in order to disengage the retainers from the instrument panel (2).
3. Remove the plate (1).

INSTALLATION PROCEDURE
1. Connect the cigarette lighter (3) connector.
2. Align the trim plate (1) tabs to the instrument panel.
3. Snap the plate (1) into place.
4. Install the ignition key trim cover. Ensure the unit is retained.
