Fog/Driving Lamp: Service and Repair

REMOVAL PROCEDURE




1. Remove the headlamp assembly.

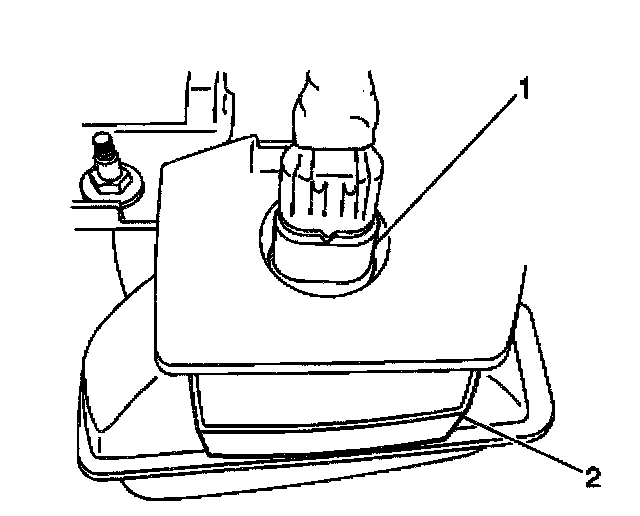

2. Disconnect the electrical connector (1) from the fog lamp (2).




3. Remove the fog lamp mounting screws (1).
4. Remove the fog lamp (2) from the vehicle.

INSTALLATION PROCEDURE




1. Position the fog lamp (2) on the vehicle
2. Connect the electrical connector to the fog lamp (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.




3. Install the fog lamp mounting screws (1).

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the headlamp assembly.
