Ride/Trim Height Specifications
Trim Height SpecificationsZ Dimension: 0
D Dimension: 123 mm (4 27/32 inch)
J Dimension: 237 mm (9 21/64 inch)
K Dimension: 244 mm (9 39/64 inch)
NOTE: All measurements are taken with a full fuel tank. All measurements of D, J, K and Z all have ± 10 mm (3/8 inch).
Z Measurement:
Z Measurement:

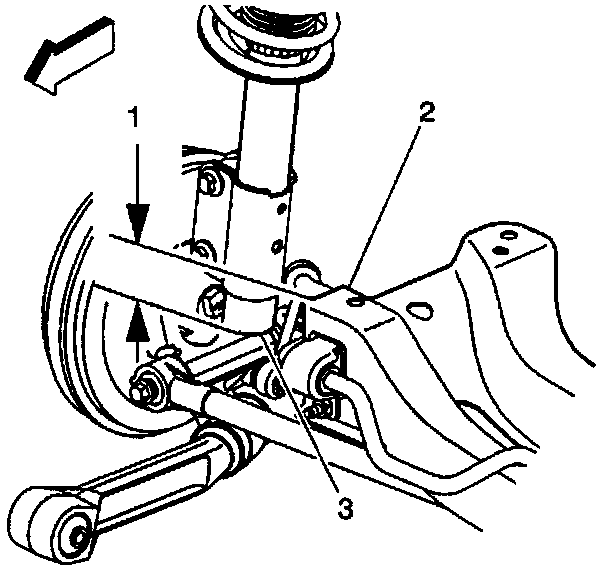

Measure the Z distance (1) between the frame rail (2) and the parallel off ball joint (3).
D Measurement:
D Measurement:

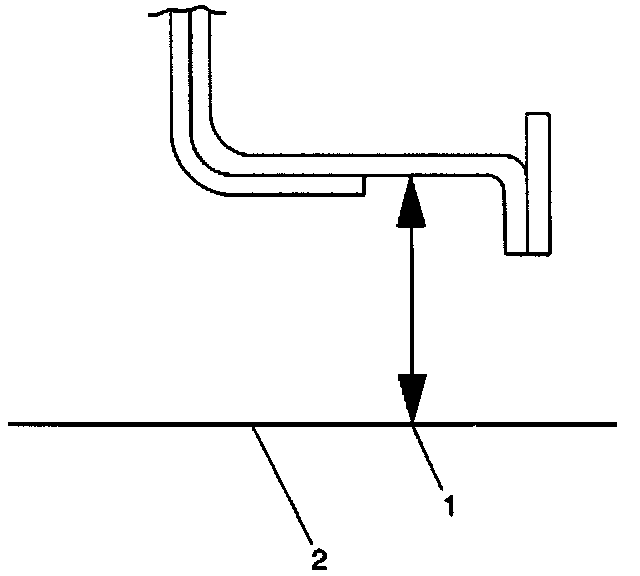

Measure the D dimension (1) from the rocker panel to the ground (2).
J,K Measurement:
J,K Measurement:

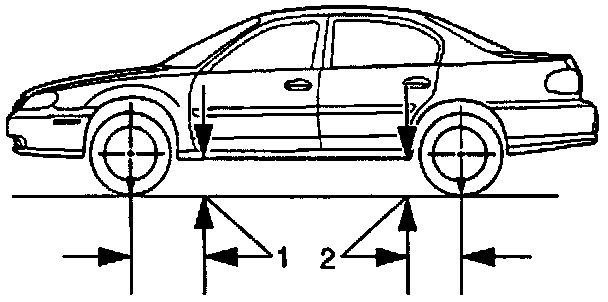

Where To Measure On The Rocker Panel:
Measure the J,K distance (1,2) from the rocker panel to the ground (2).
Z Measurement:
Z Measurement:
Measure the Z distance (1) between the frame rail (2) and the parallel off ball joint (3).
