Washer Solvent Container Replacement

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the left splash shield.
3. Remove the electronic brake control module.
4. Remove the electrical connector from the washer pump.
5. Remove the hose from the washer pump.
6. Remove the electrical connector from the solvent level sensor.

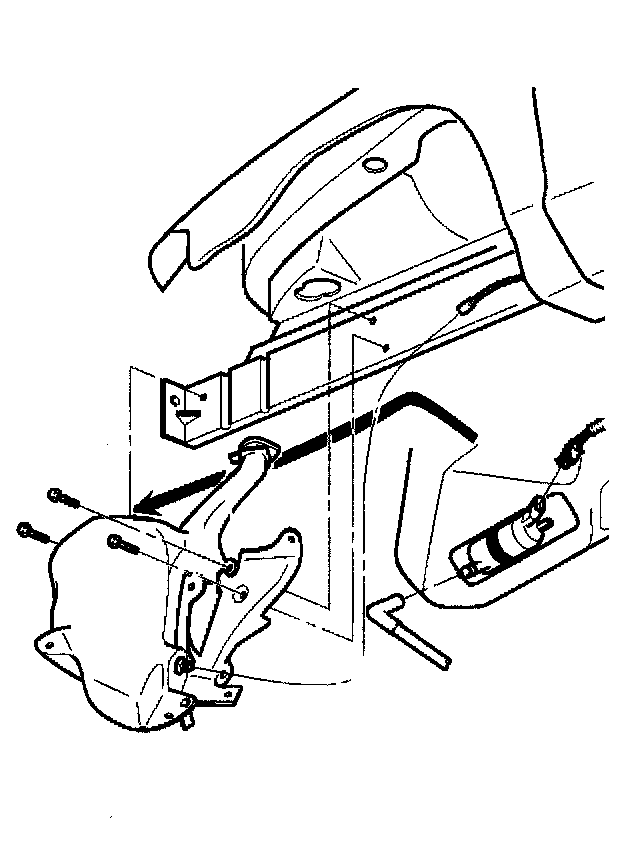

7. Remove the 3 screws and the washer solvent container from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the washer solvent container onto the vehicle with the 3 screws.

Tighten
Tighten the 3 screws to 6 N.m (53 lb in).

2. Connect the electrical connector to the solvent level sensor.
3. Connect the hose to the washer pump.
4. Connect the electrical connector to the washer pump.
5. Install the electronic brake control module.
6. Install the left splash shield.
7. Lower the vehicle. Refer to Lifting and Jacking the Vehicle.
