Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

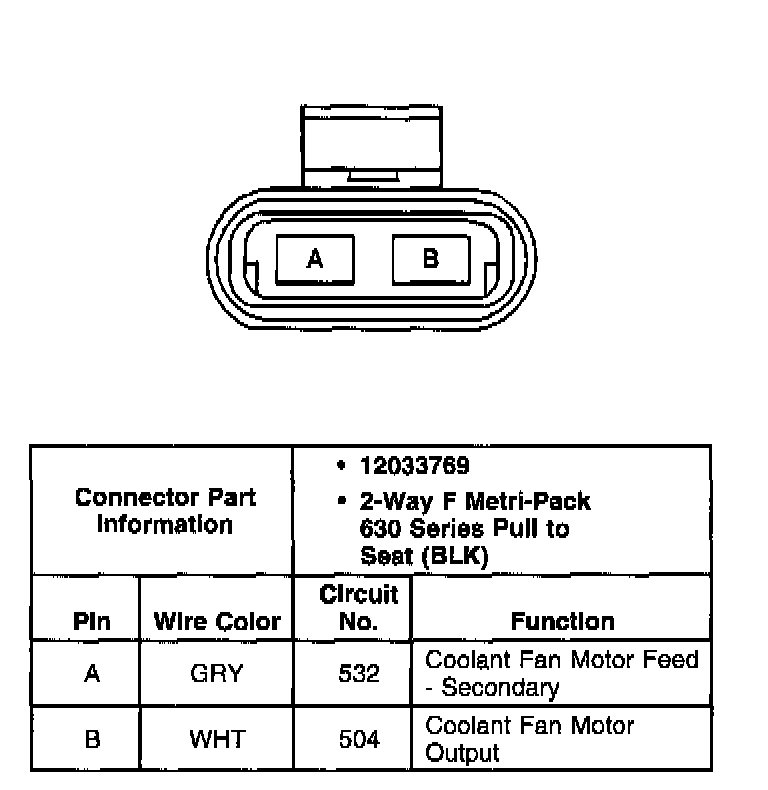

ENGINE COOLANT FAN MOTOR #1 (RIGHT)
ENGINE COOLANT FAN MOTOR #2 (LEFT)
