Transmission Control Systems
AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (CELL 39: POWER GROUND AND VSS)

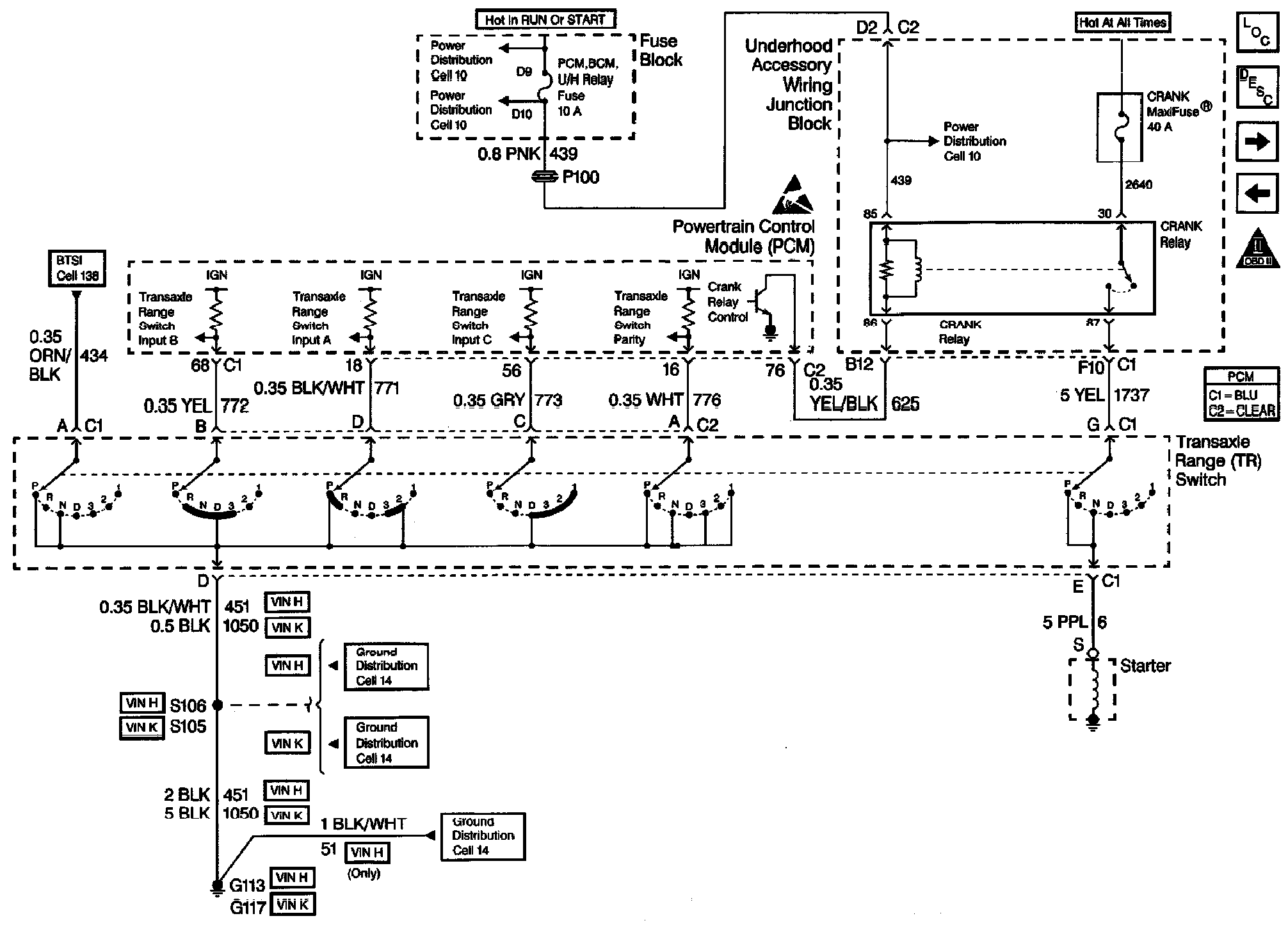

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (CELL 39: TRANSAXLE RANGE SWITCH)

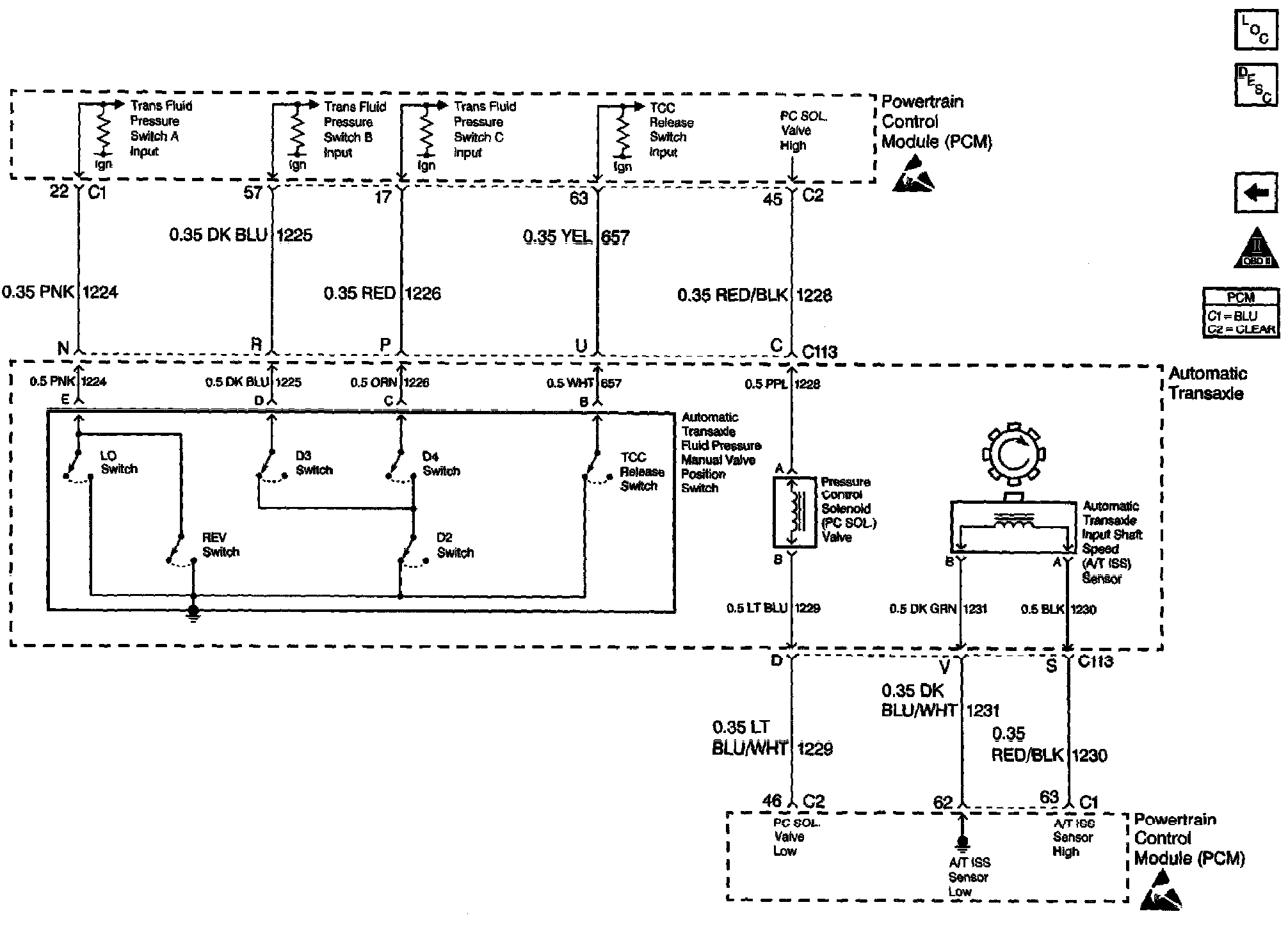

AUTOMATIC TRANSMISSION CONTROLS SCHEMATICS (CELL 39: A/T FLUID PRESSURE MANUAL VALVE POSITION SWITCH, PC SOL VALVE AND A/T ISS SENSOR)
