Engine

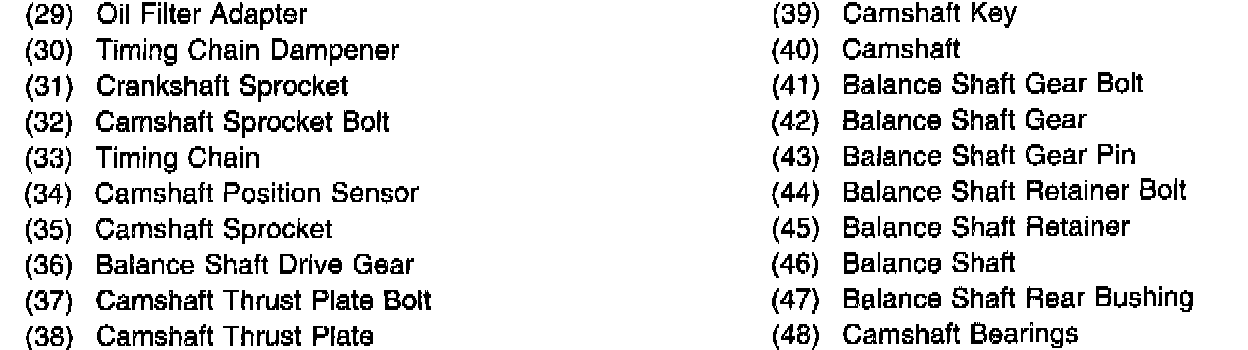

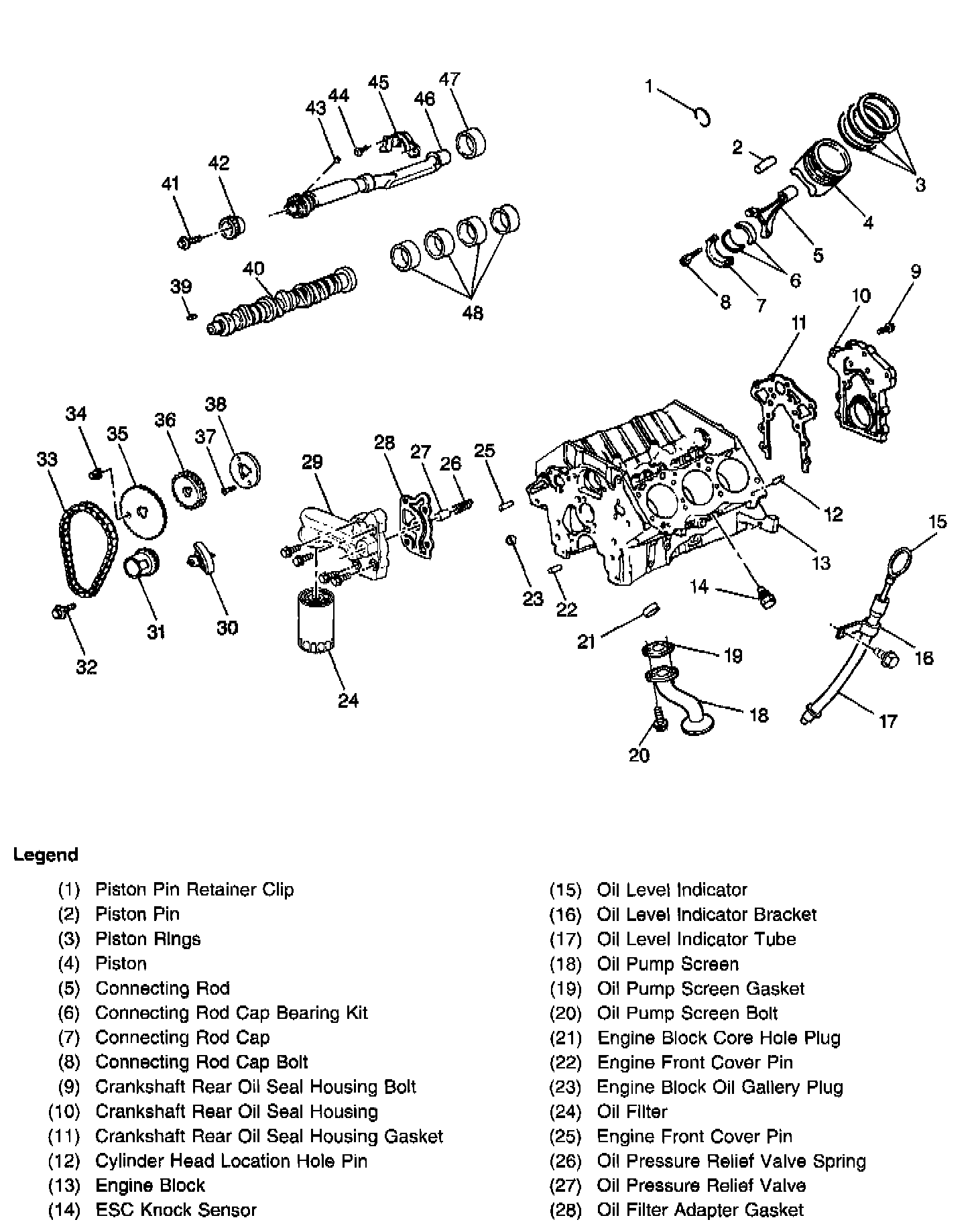

ENGINE BLOCK AND COMPONENTS

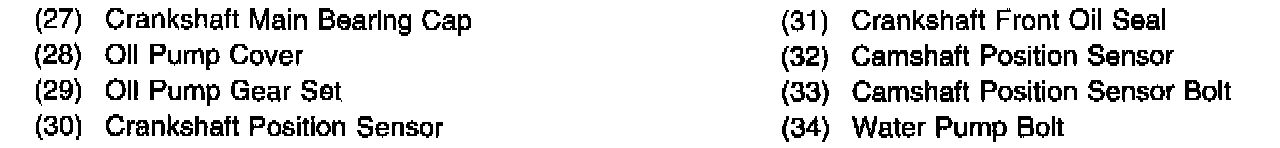

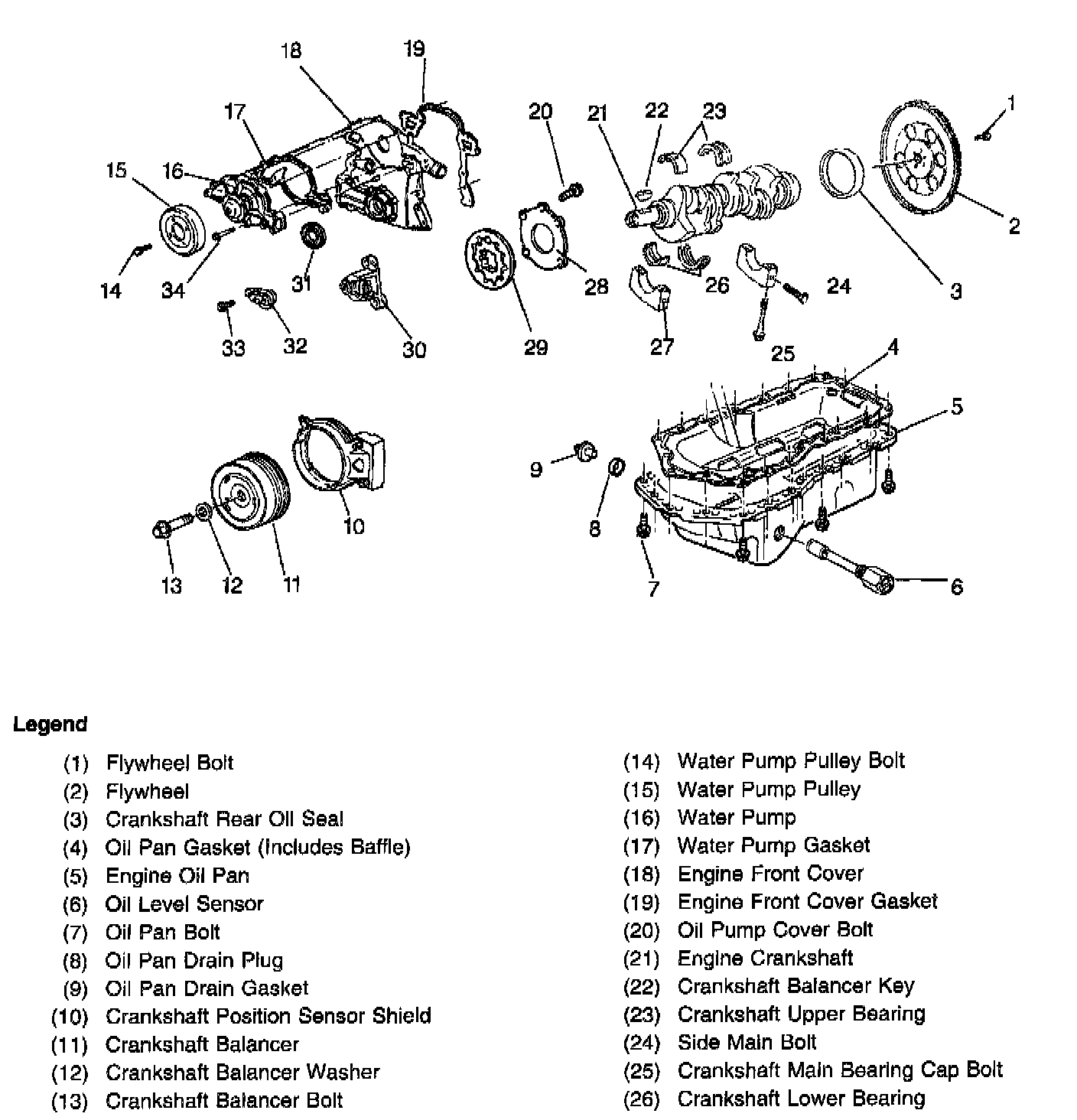

CRANKSHAFT AND COMPONENTS

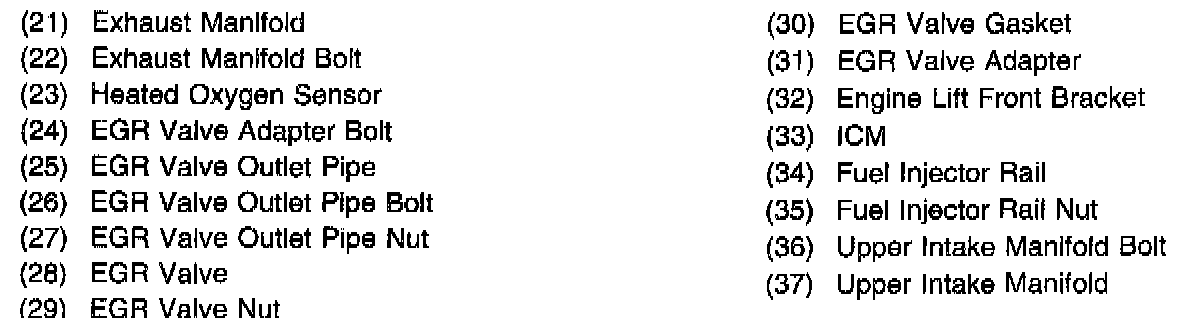

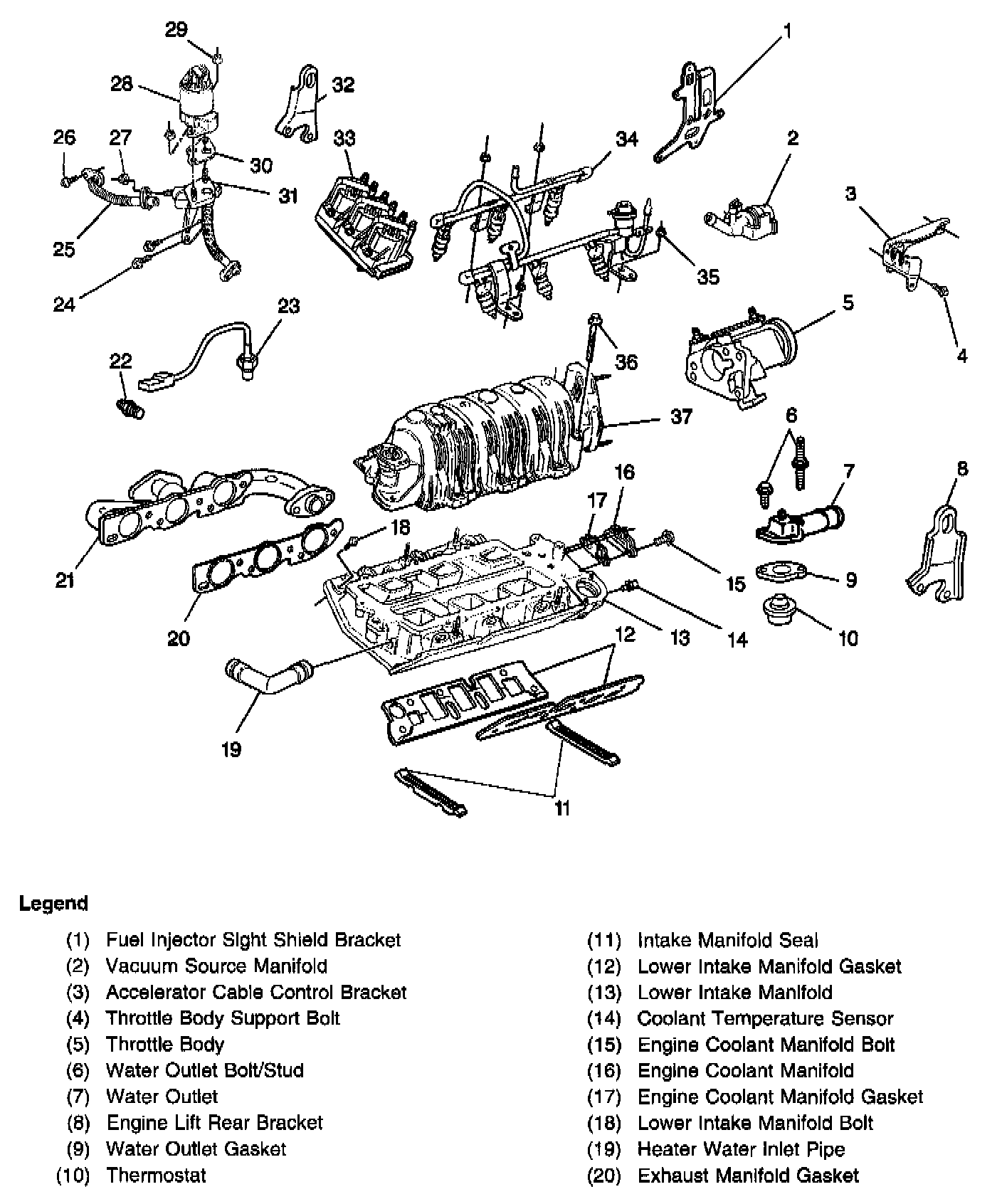

INTAKE MANIFOLD AND COMPONENTS

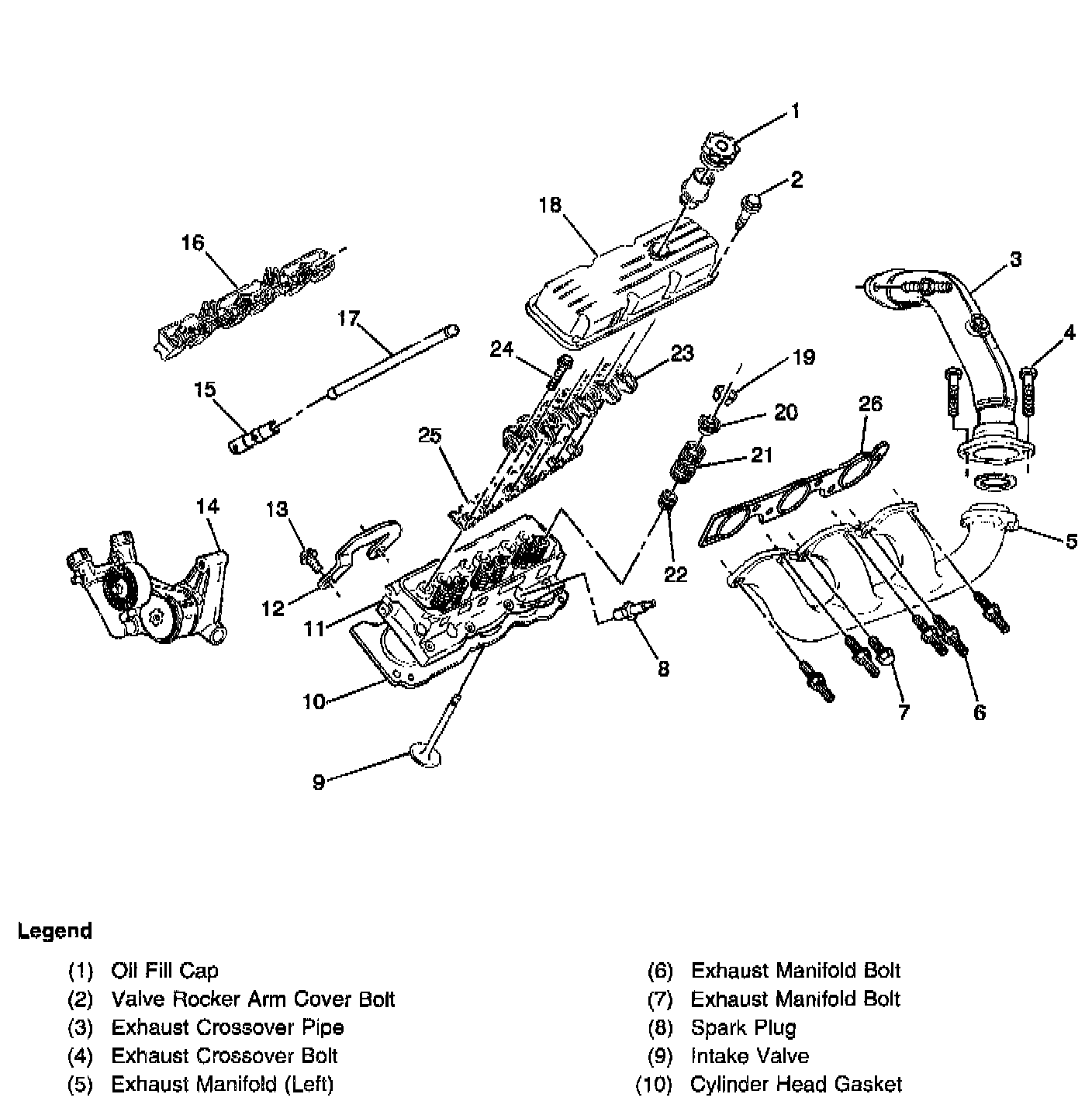

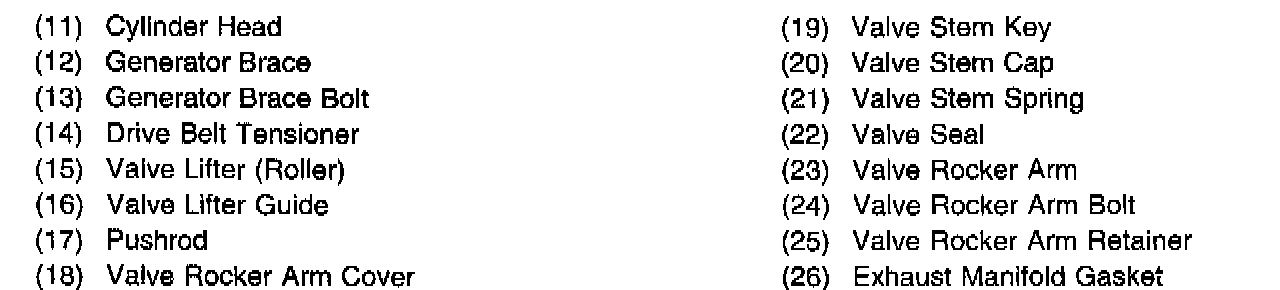

CYLINDER HEAD AND COMPONENTS
