Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Diagrams

Blower Motor: Diagrams

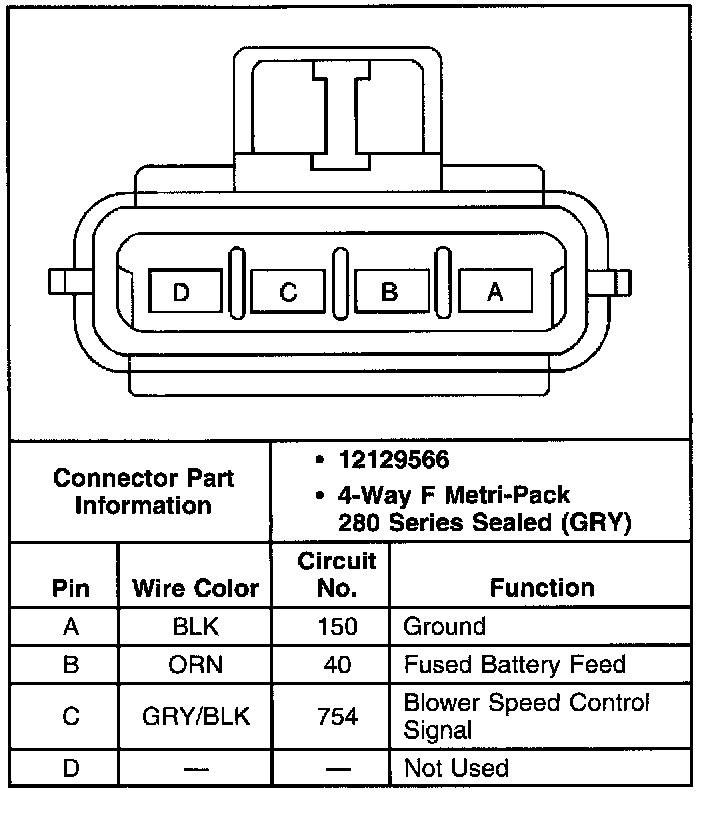

Blower Motor Control Module C1-Auto A/C:
