Cigarette Lighter: Service and Repair

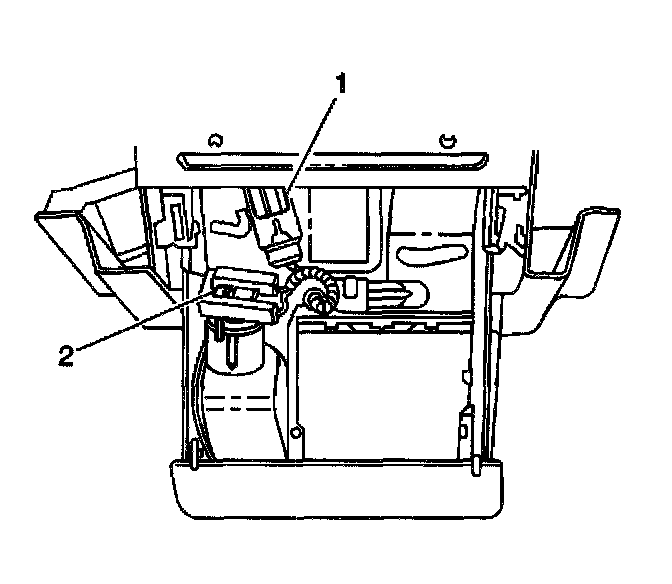

REMOVAL PROCEDURE
1. Pull rearward the ashtray.
2. Disconnect electrical connector (2).
3. Remove the cigar lighter socket retainer.
4. Remove the cigar lighter socket.

INSTALLATION PROCEDURE
1. Install the cigar lighter socket.
2. Install the cigar lighter socket retainer.
3. Connect the electrical connector (2).
4. Push forward the ashtray.
