Wiper Motor Linkage: Service and Repair

REMOVAL PROCEDURE




TOOLS REQUIRED
J 39232 Wiper Transmission Separator

1. Remove the wiper arm and blades.
2. Remove the air inlet grille panel.
3. Disconnect the transmission drive link sockets from the wiper motor crank arm and the transmission drive shafts using the J 39232 Wiper Transmission Separator.




4. Remove six screws.

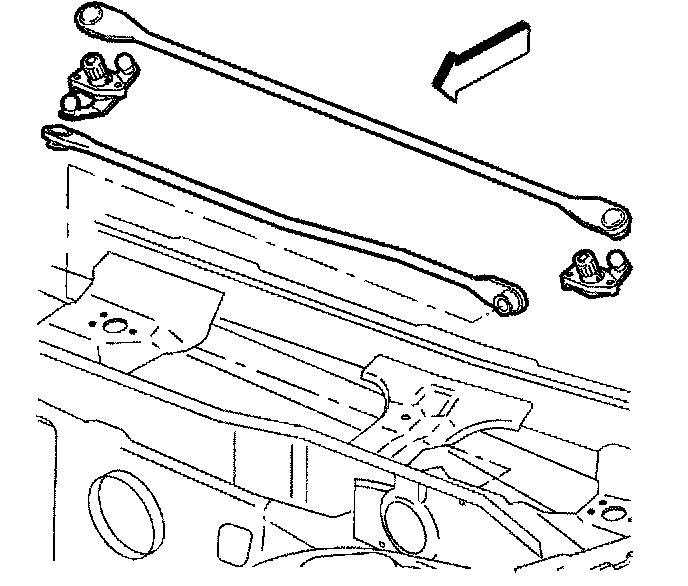

5. Remove the transmission drive shafts and drive links by guiding them through the access hole in the shroud upper panel.

INSTALLATION PROCEDURE




TOOLS REQUIRED
J 39529 Wiper Transmission Installer

1. Install the transmission drive shafts by positioning them in the plenum chamber through the shroud upper panel openings.




2. Install the drive links on the drive shafts using the J 39529 Wiper Transmission Installer.




NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the transmission with the drive shafts positioned through the drive shaft clearance holes.
4. Install six screws.

Tighten
Tighten the screws to 8 N.m (71 lb in).




IMPORTANT: The socket must be fully seated on the ball.

5. Install the transmission drive link socket to the wiper motor crank arm ball using the J 39529 Wiper Transmission Installer.
6. Install the air inlet grille panel.
7. Install the wiper arms.
