Home >> Oldsmobile >> 2000 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Diagrams

Blower Motor Resistor: Diagrams

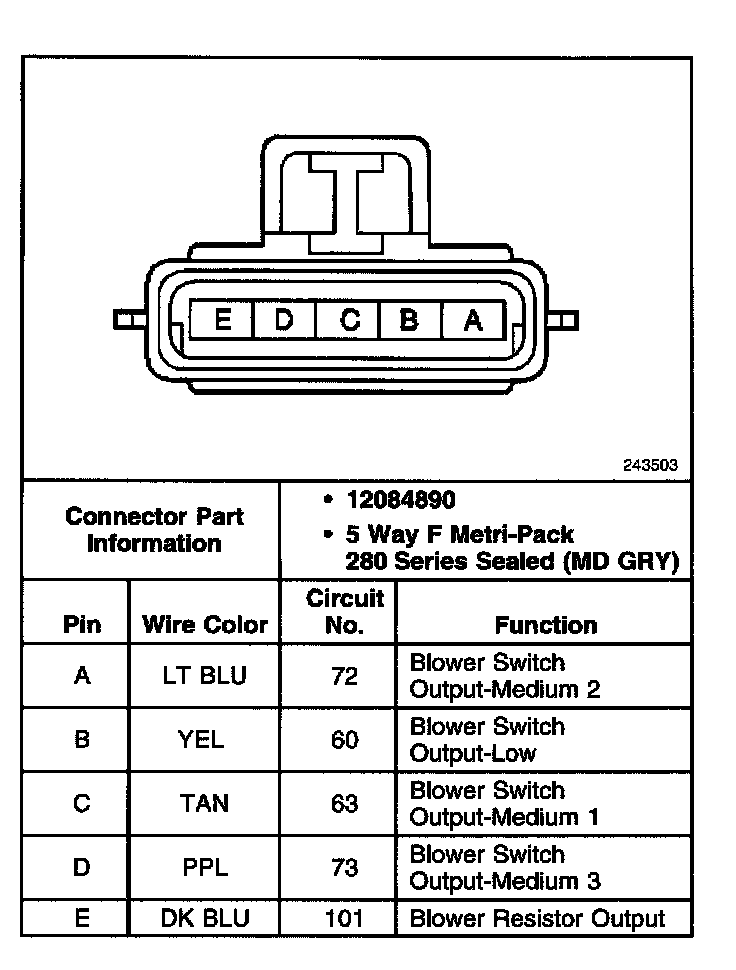

Blower Resistor Assembly:
