Instrument Panel (IP) - Accessory Trim Plate Replacement



Instrument Panel Accessory Trim Plate Replacement (Oldsmobile)

Removal Procedure

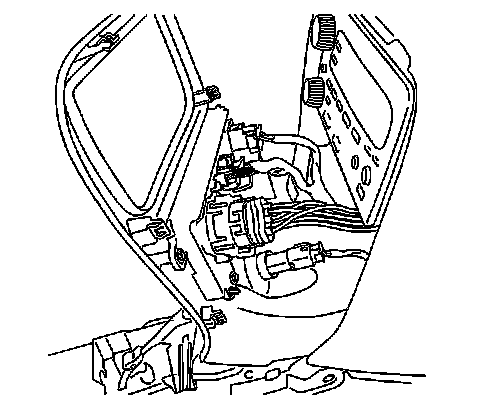

1. Remove the instrument panel accessory trim plate, by pulling rearward to release the retainers.
2. Remove the HVAC control head from the instrument panel accessory trim plate.
3. Disconnect the electrical connector from the 12 volt power supply.
4. Remove the 12 volt power supply from the instrument panel accessory trim plate, if required.

Installation Procedure




1. Install the HVAC control head to the instrument panel accessory trim plate.
2. Install the 12 volt power supply to the instrument panel accessory trim plate, if required.
3. Connect the electrical connector to the 12 volt power supply.
4. Install the instrument panel accessory trim plate to the instrument panel, pressing into place until fully seated.
