T/L ASSY &/or Backup, Sidemarker, Stop, Turn SIG Bulb Rep

REMOVAL PROCEDURE




1. Pull back the rear compartment trim. Refer to Compartment Trim Panel Replacement Rear in Trunk/Liftgate.

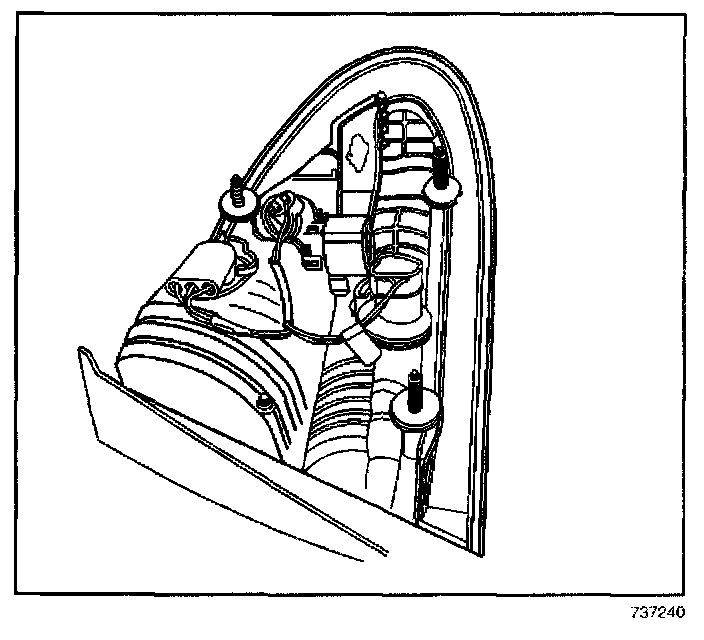

2. Remove the taillamp thumb nuts.
3. Remove the taillamp from the rear body panel.




4. Disconnect the electrical connector from the taillamp.
5. Remove the taillamp from the vehicle.




6. Disconnect the electrical connector retainer from the taillamp housing, if required.

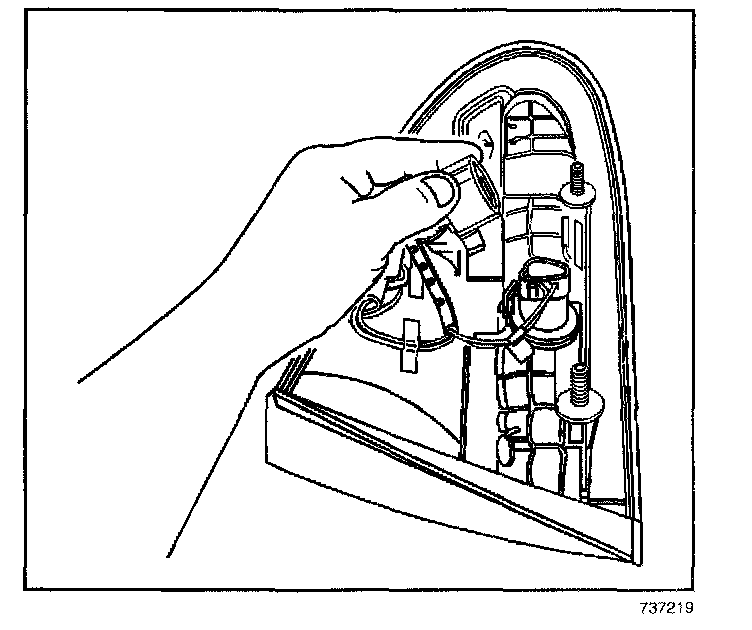

7. Remove the bulb socket(s) from the taillamp by rotating counterclockwise, if required.
8. Remove the bulb(s) from the socket(s), if required.

INSTALLATION PROCEDURE




1. Install the bulb(s) to the socket(s), if required.
2. Install the bulb socket(s) to the taillamp by rotating clockwise, if required.
3. Connect the electrical connector retainer to the taillamp housing, if required.




4. Connect the electrical connector to the taillamp.




5. Install the taillamp to the rear body panel.
6. Install the taillamp thumb nuts, and hand tighten.
7. Pull back the rear compartment trim. Refer to Compartment Trim Panel Replacement - Rear in Trunk/Liftgate.
