Home >> Oldsmobile >> 2001 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Case and Associated Parts

Case and Associated Parts

Disassembled Views

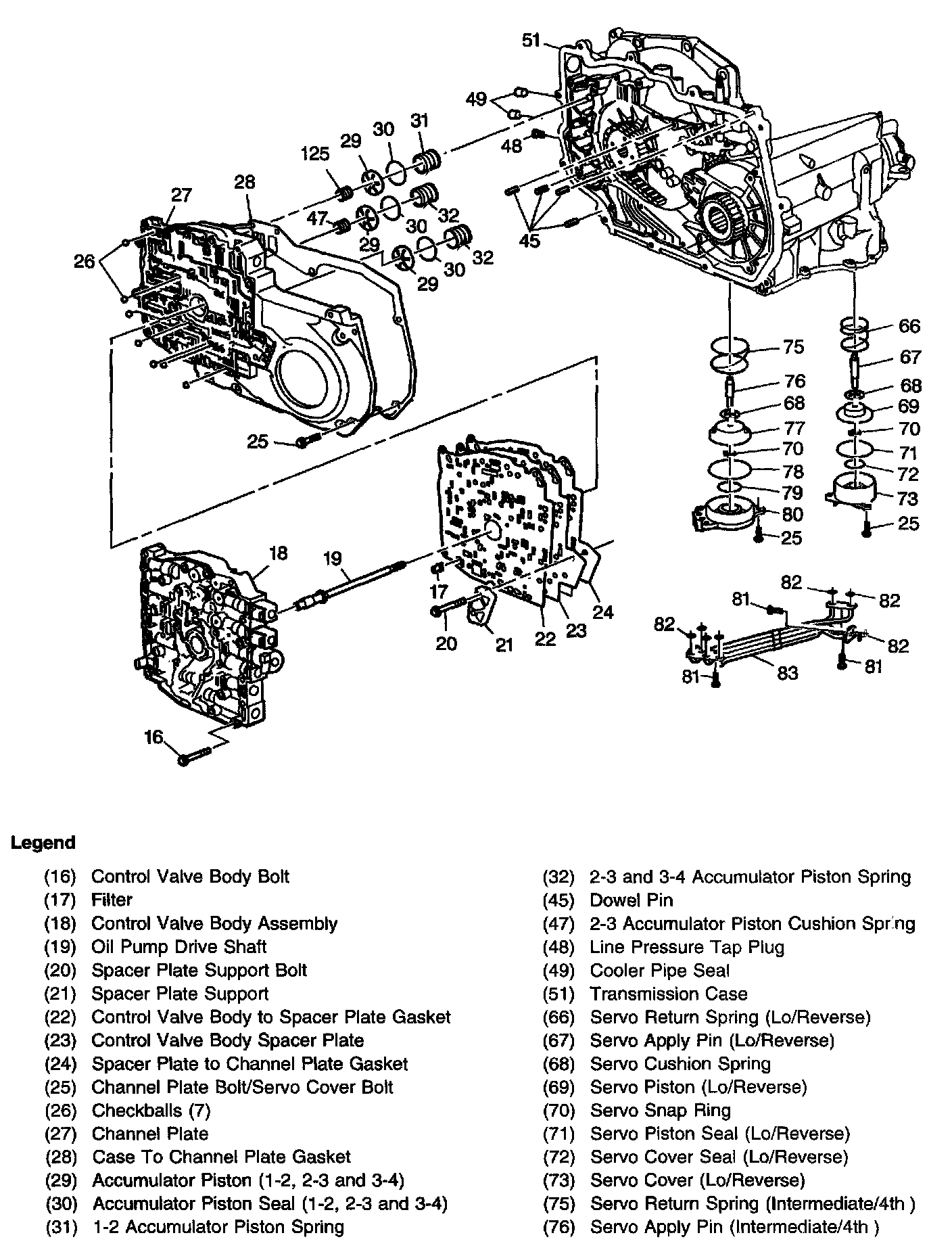

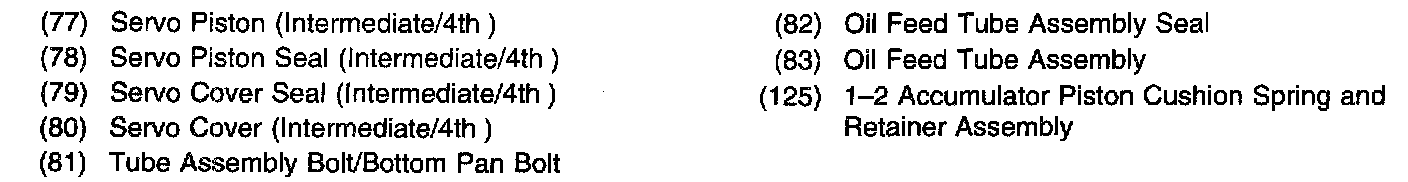

Case and Associated Parts (1 of 3)

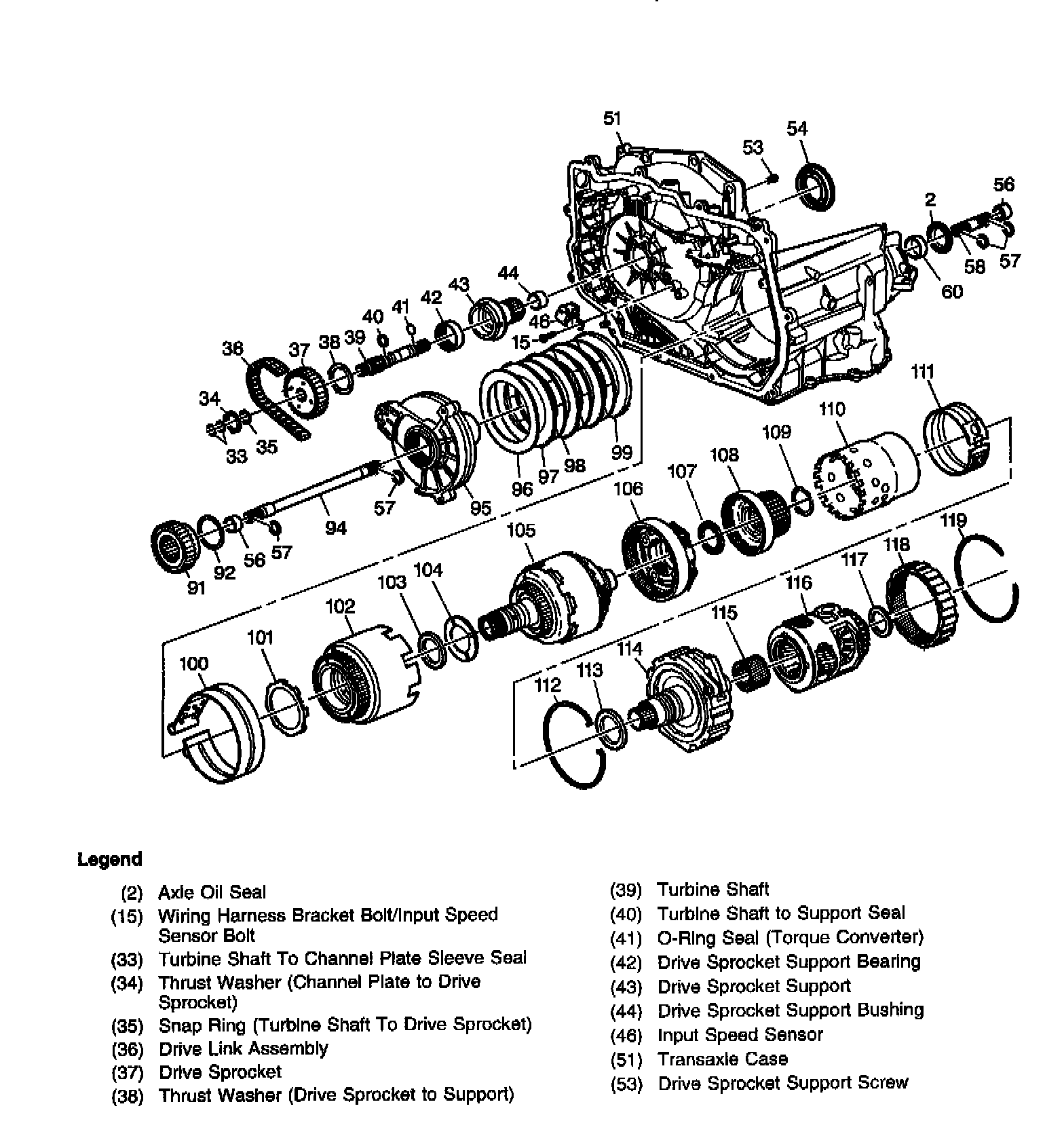

Case and Associated Parts (2 of 3)

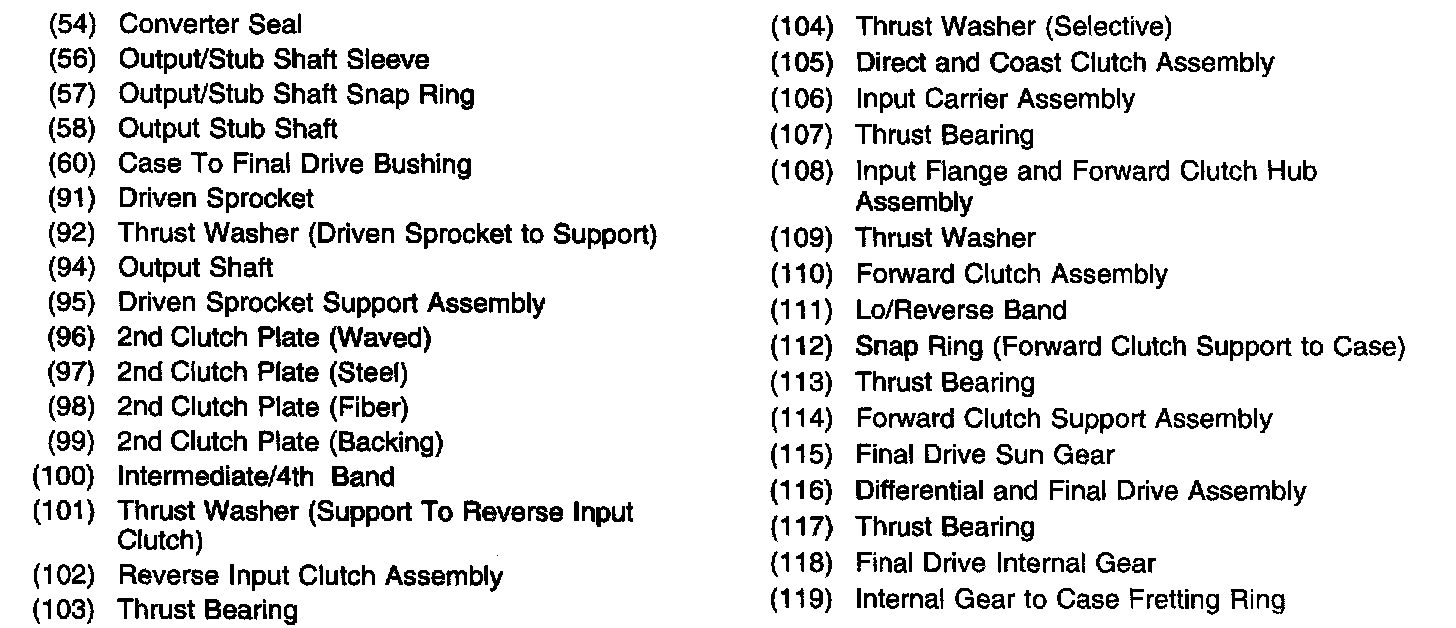

Case and Associated Parts (3 of 3)
