Home
>>
Oldsmobile
>>
2001
>>
Alero V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Control Valve Body
Control Valve Body
Part 1 of 2
Part 1 of 2

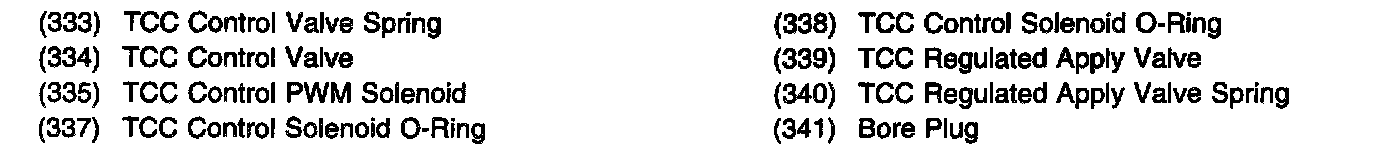

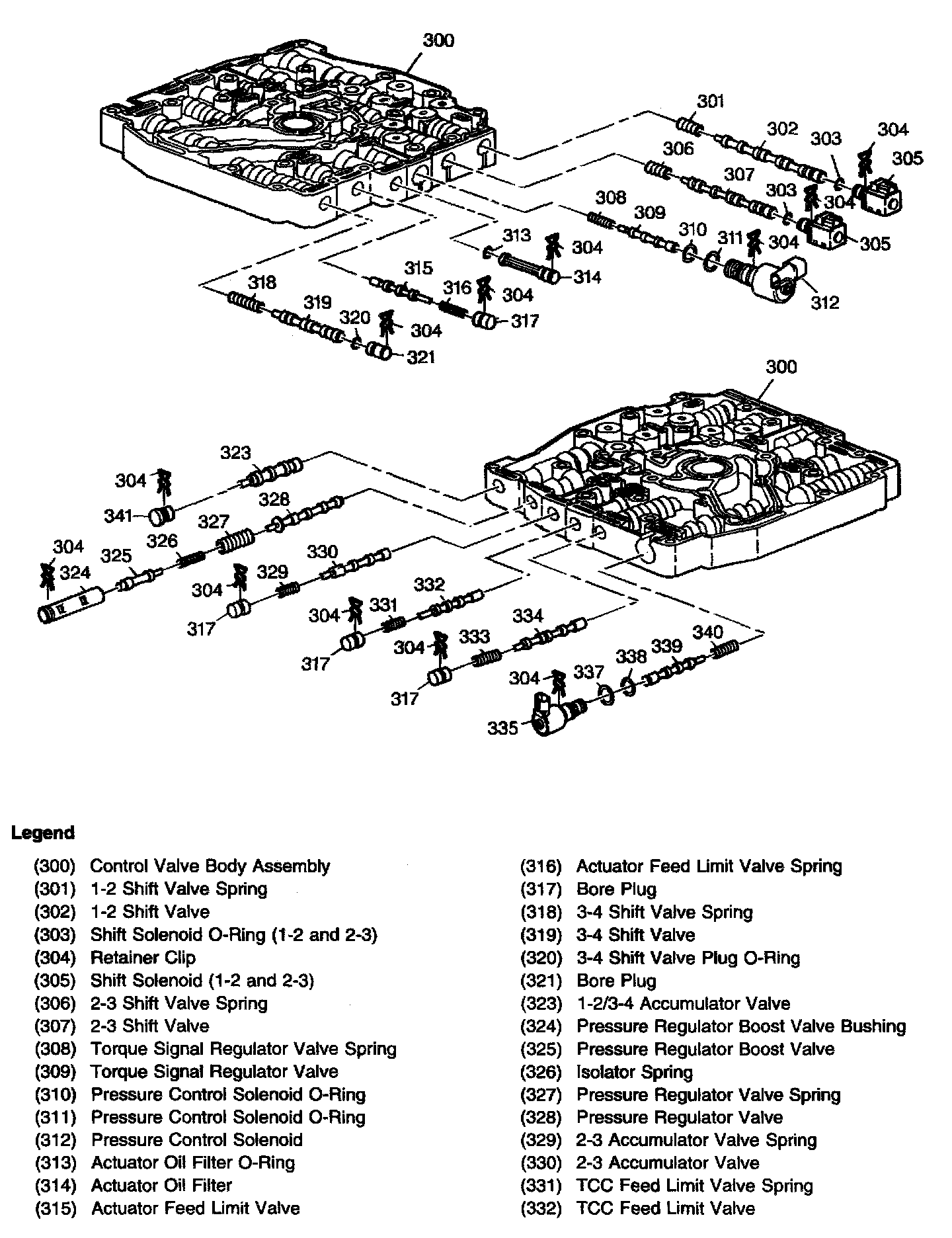

Control Valve Body Assembly
