Windshield Washer Pump: Service and Repair

WASHER PUMP REPLACEMENT

REMOVAL PROCEDURE

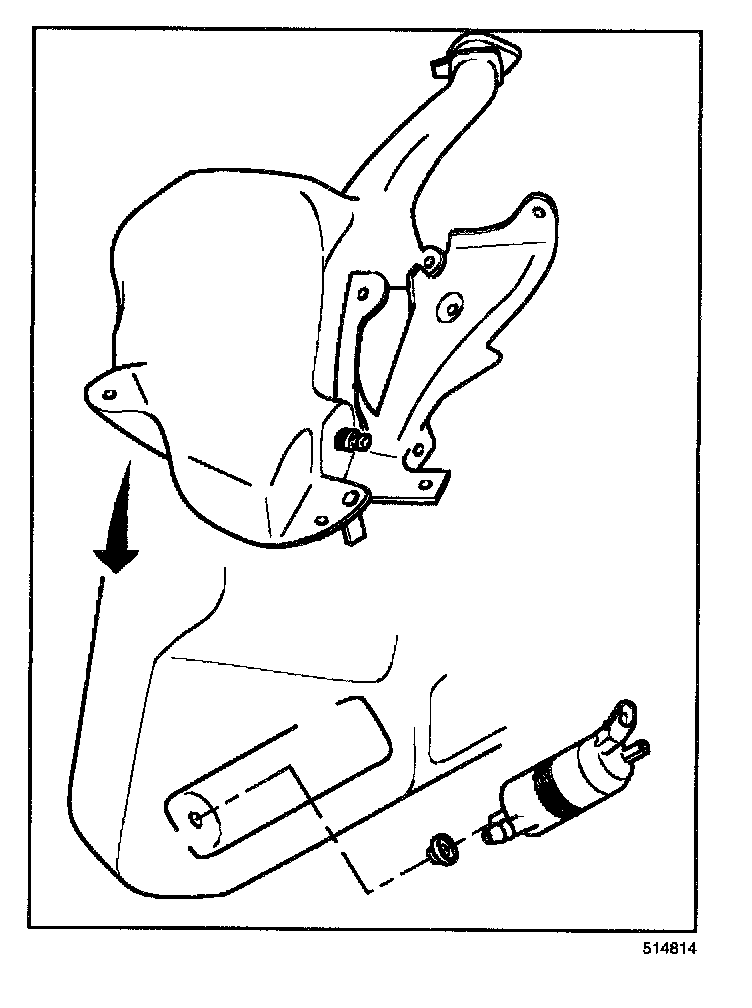

1. Remove the washer solvent container.
2. Disconnect the electrical connector from the washer pump.
3. Disconnect the hose from the washer pump.
4. Remove the washer pump from the washer solvent container.

INSTALLATION PROCEDURE




1. Install the washer pump in the washer solvent container.
2. Connect the hose to the washer pump.
3. Connect the electrical connector to the washer pump.
4. Install the washer solvent container.
