Home
>>
Oldsmobile
>>
2001
>>
Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>

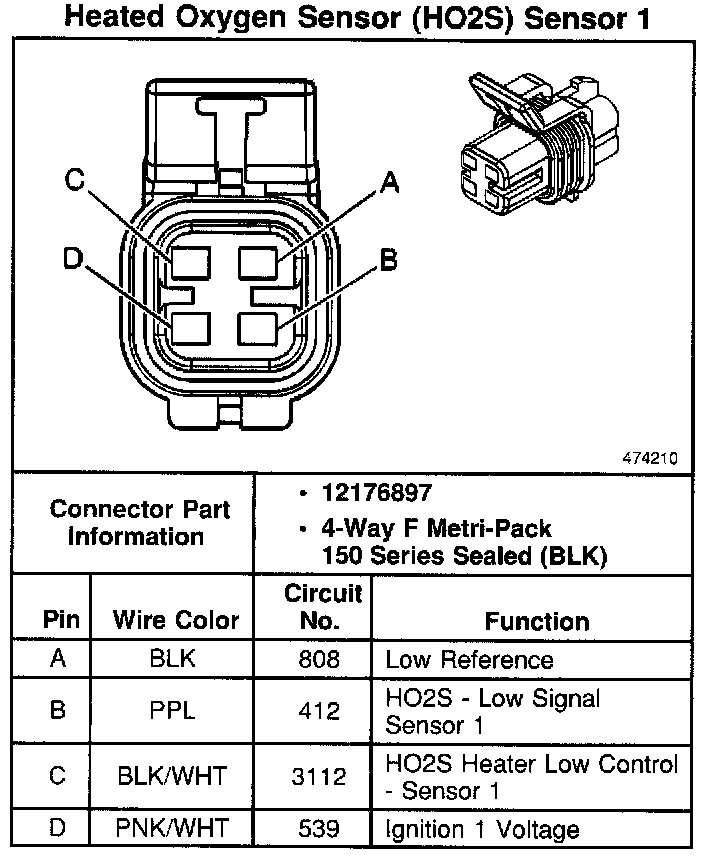

Heated Oxygen Sensor (HO2S 1)
Heated Oxygen Sensor (HO2S 1)
Heated Oxygen Sensor (HO2S) Sensor 1:
