Thread Repair Specifications

Thread Repair Specifications

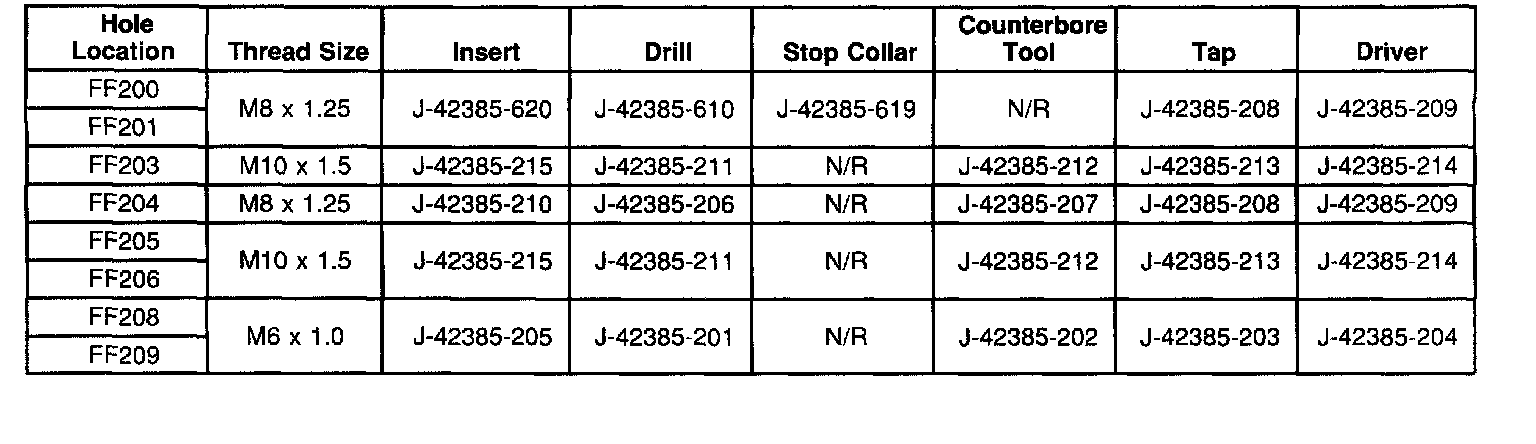

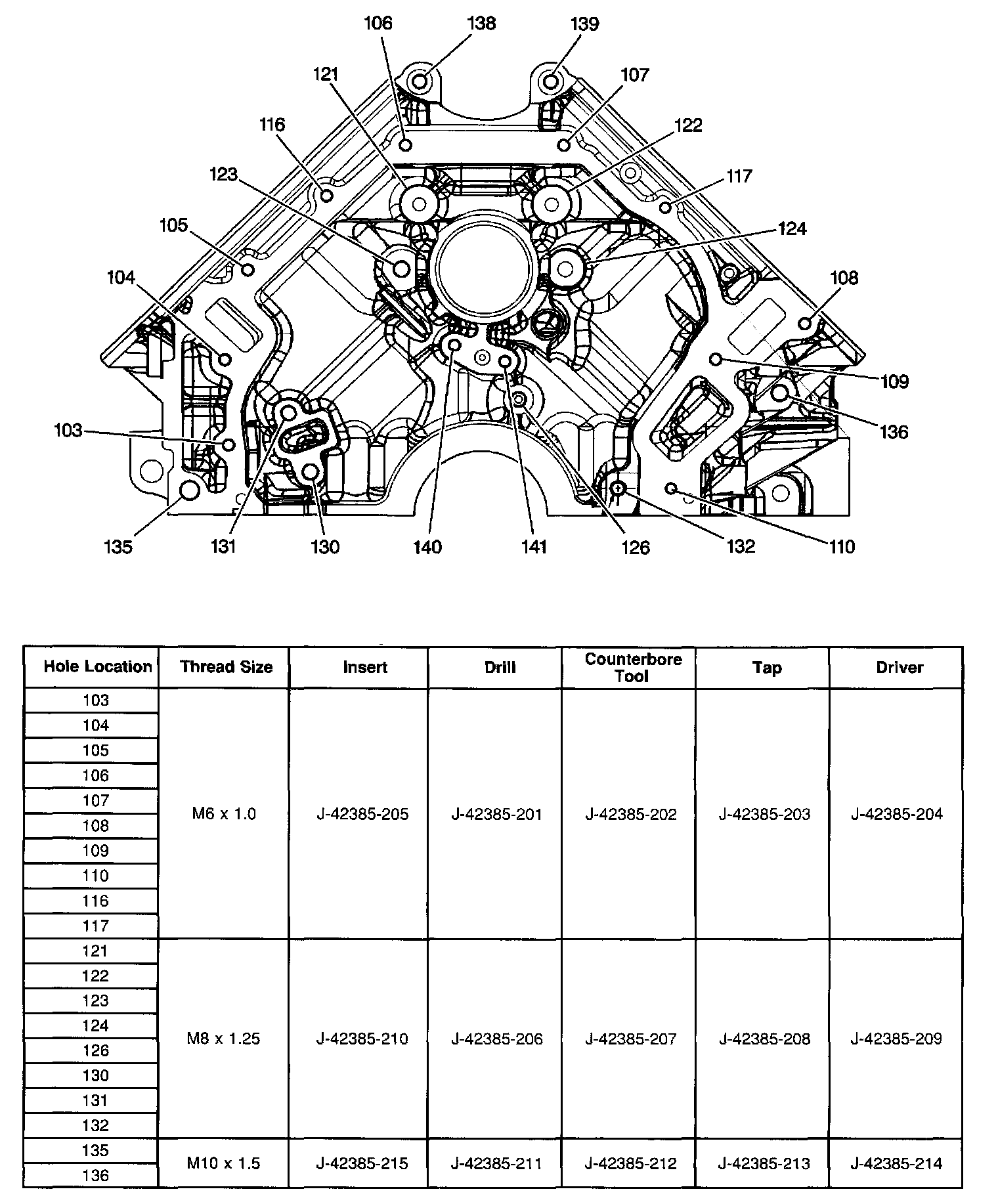

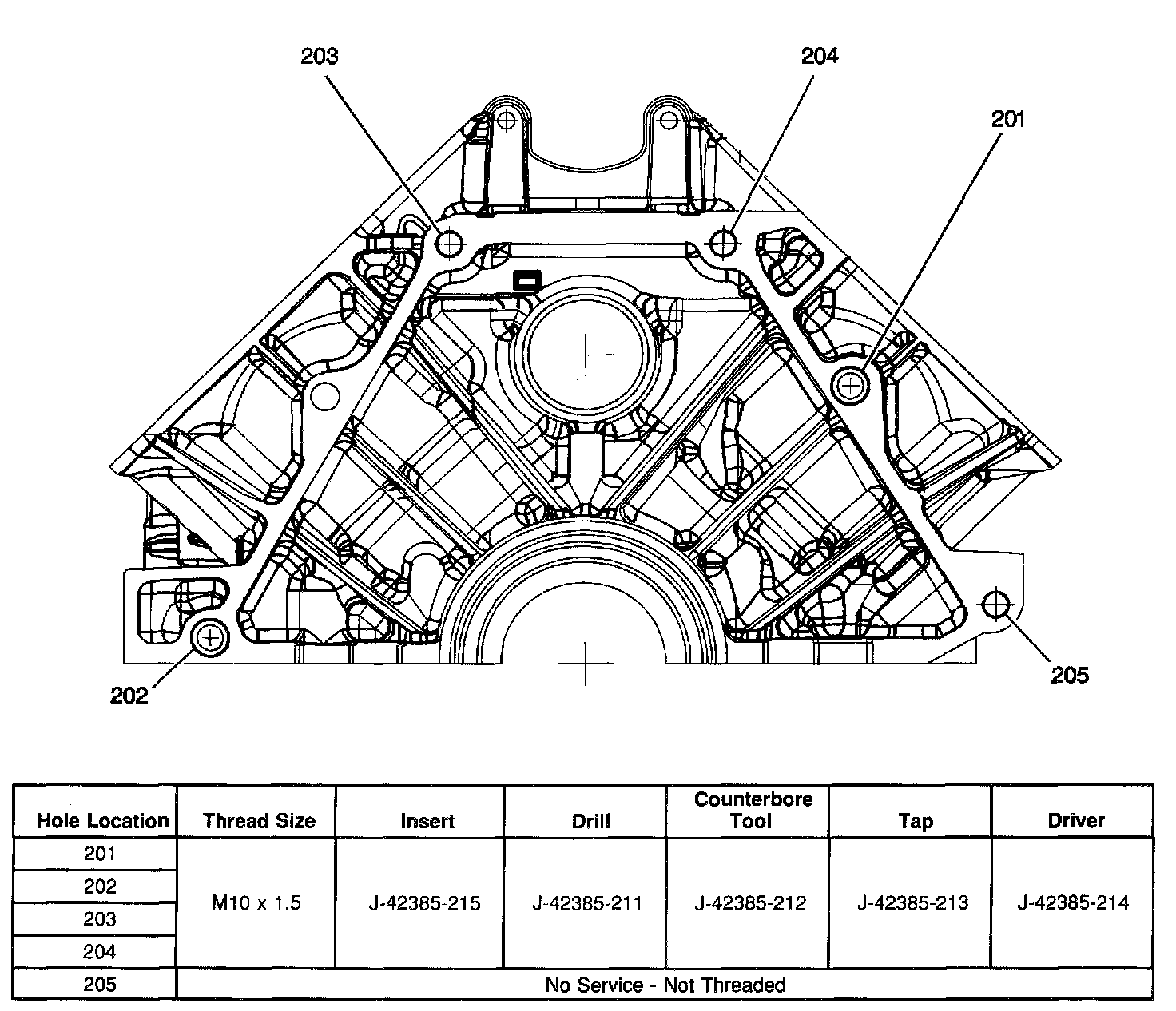

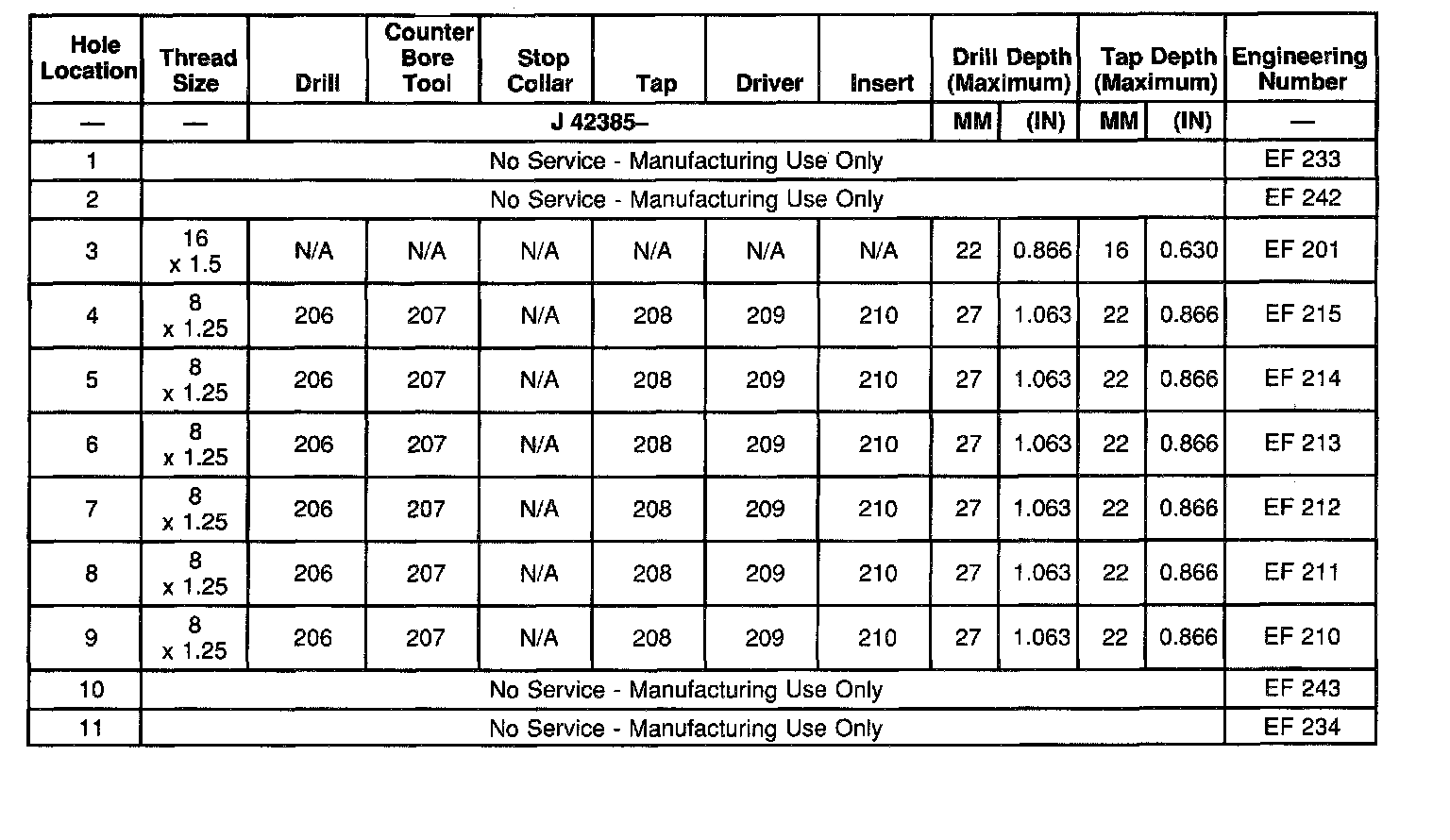

Cylinder Block- Front Face

Part 1 of 3

Part 2 of 3

Part 3 of 3

Cylinder Block - Left Side

Part 1 of 2

Part 2 of 2

Cylinder Block - Right Side

Part 1 of 2

Part 2 of 2

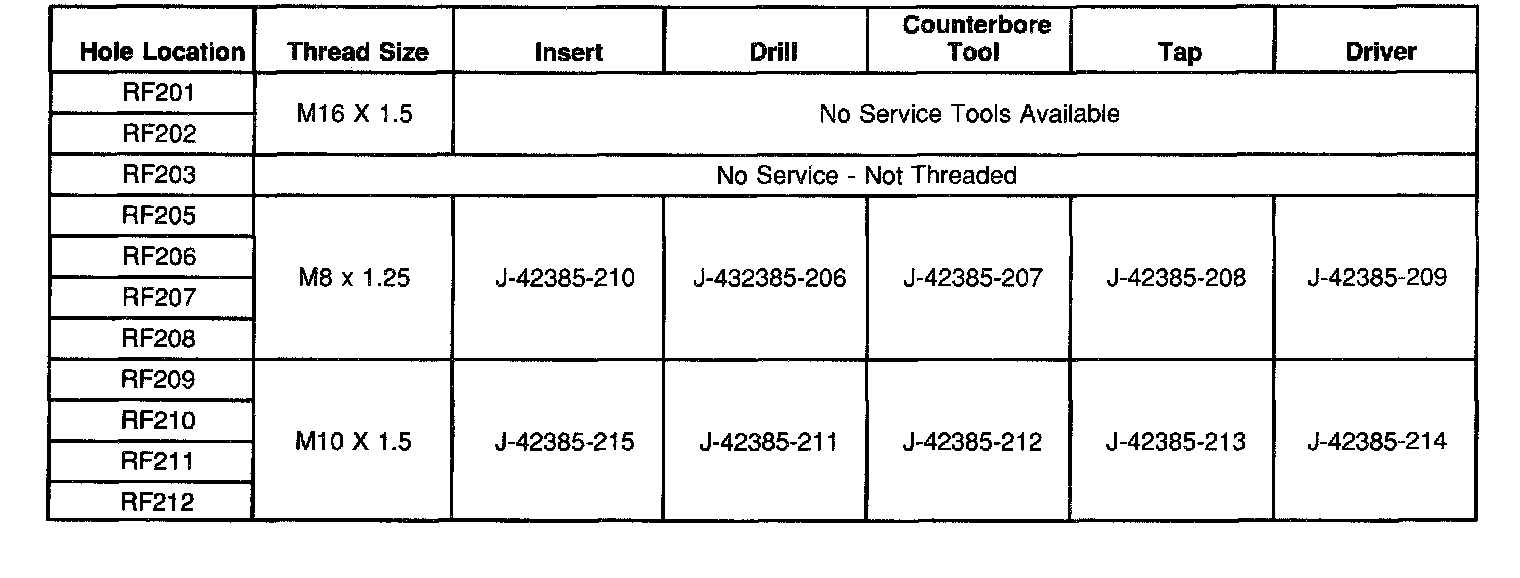

Cylinder Block- Rear Face

Part 1 of 2

Part 2 of 2

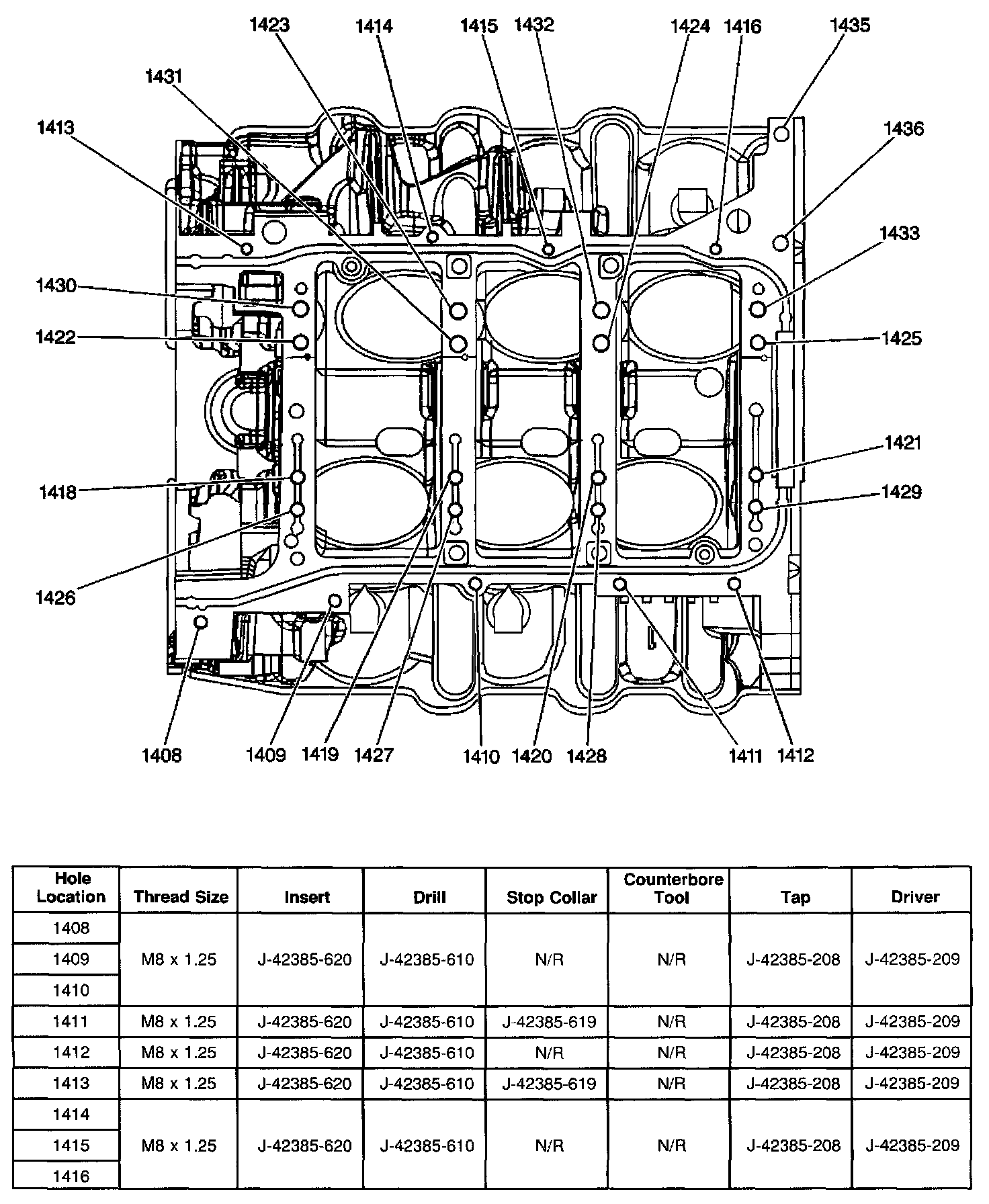

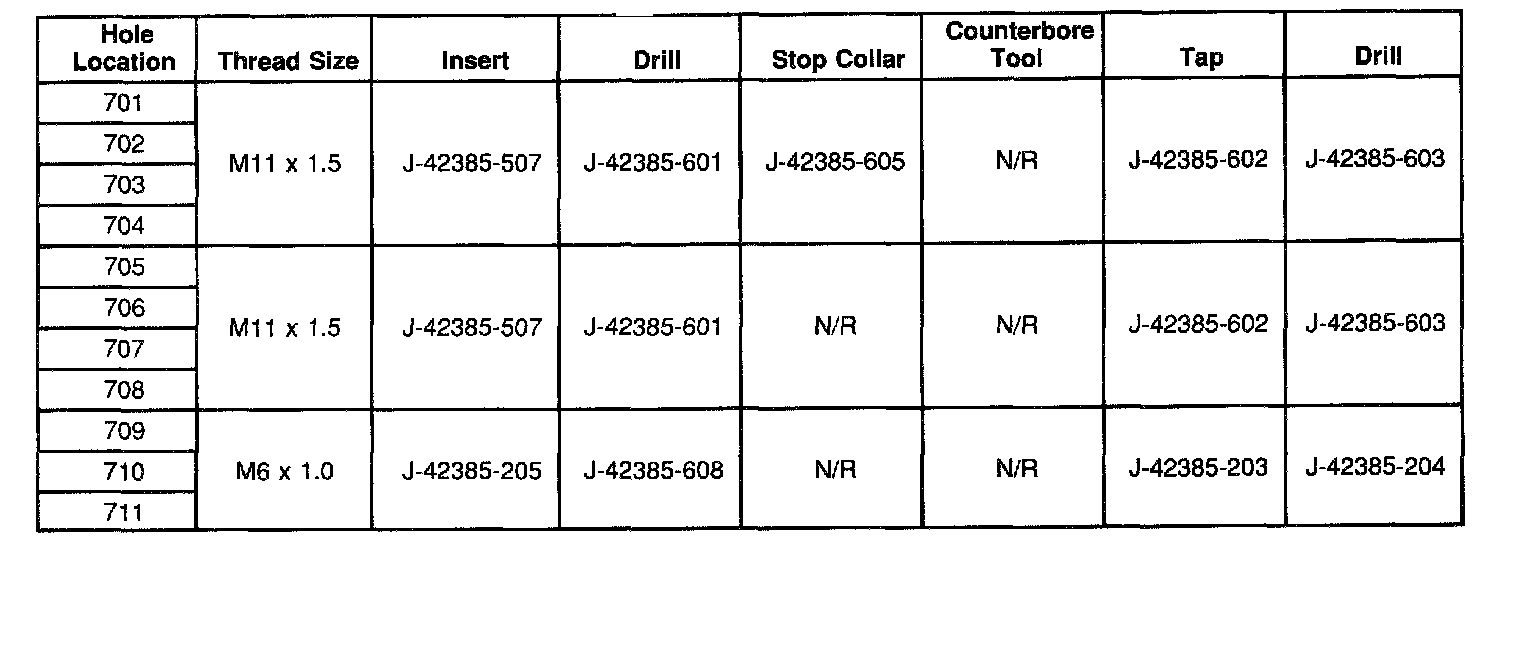

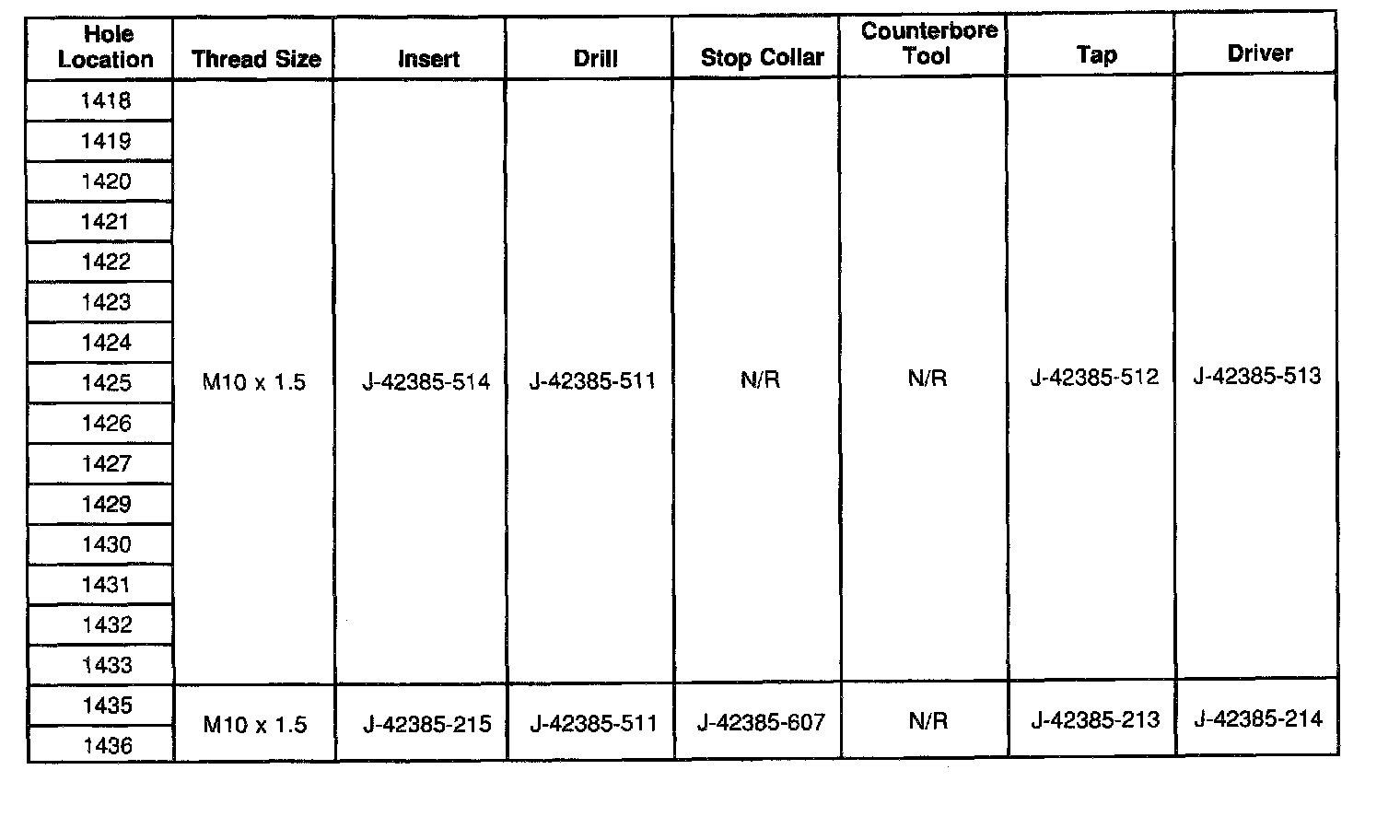

Cylinder Block - Upper Joint Face

Part 1 of 3

Part 2 of 3

Part 3 of 3

Left Bank Deck Face

Part 1 of 2

Part 2 of 2

Right Bank Deck Face

Part 1 of 2

Part 2 of 2

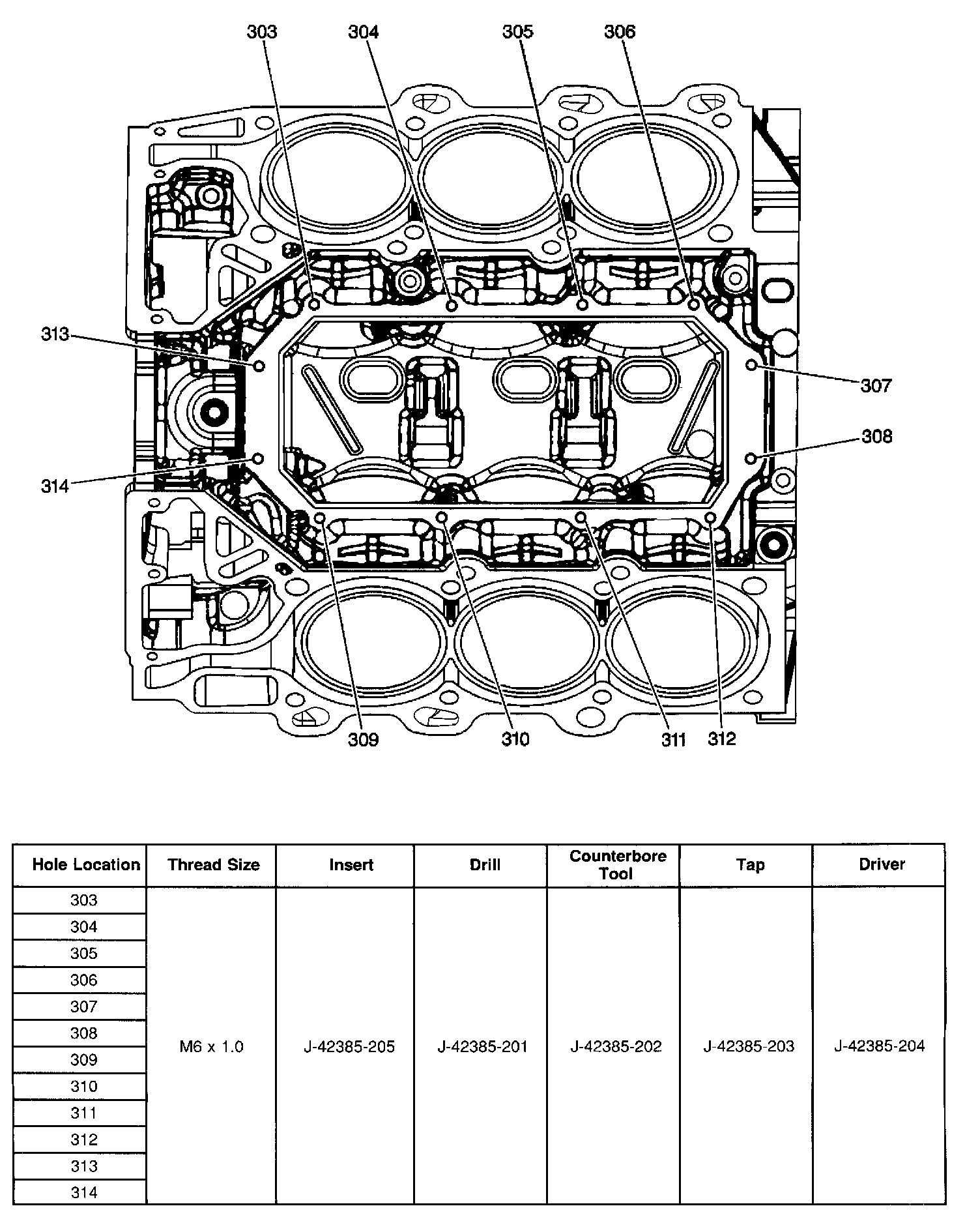

Cylinder Block Top View

Part 1 of 2

Part 2 of 2

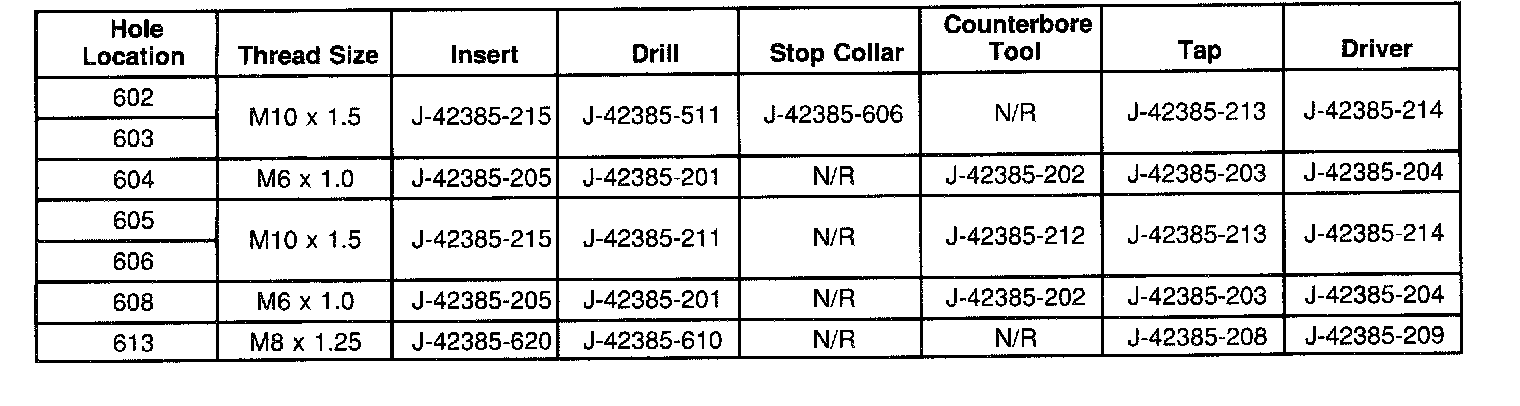

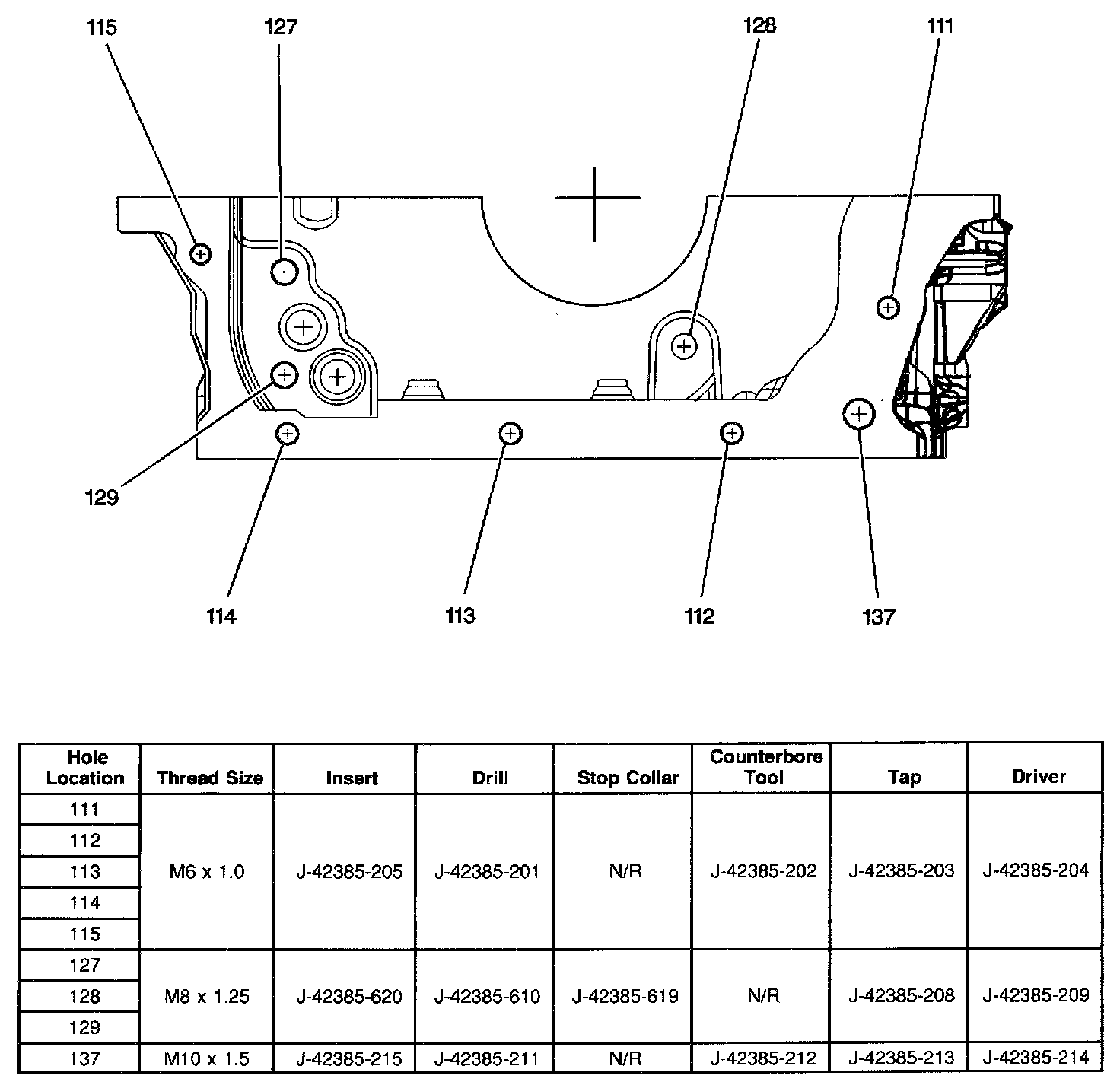

Lower Crankcase Front Face

Part 1 of 2

Part 2 of 2

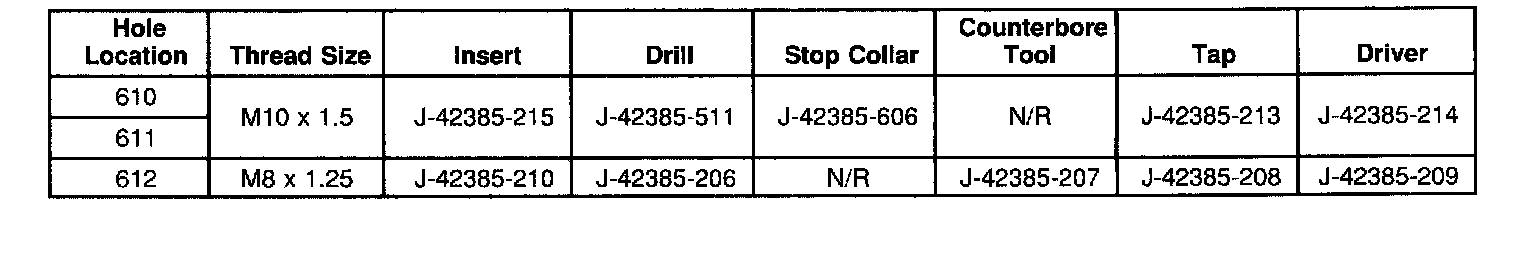

Lower Crankcase Left Side

Part 1 of 2

Part 2 of 2

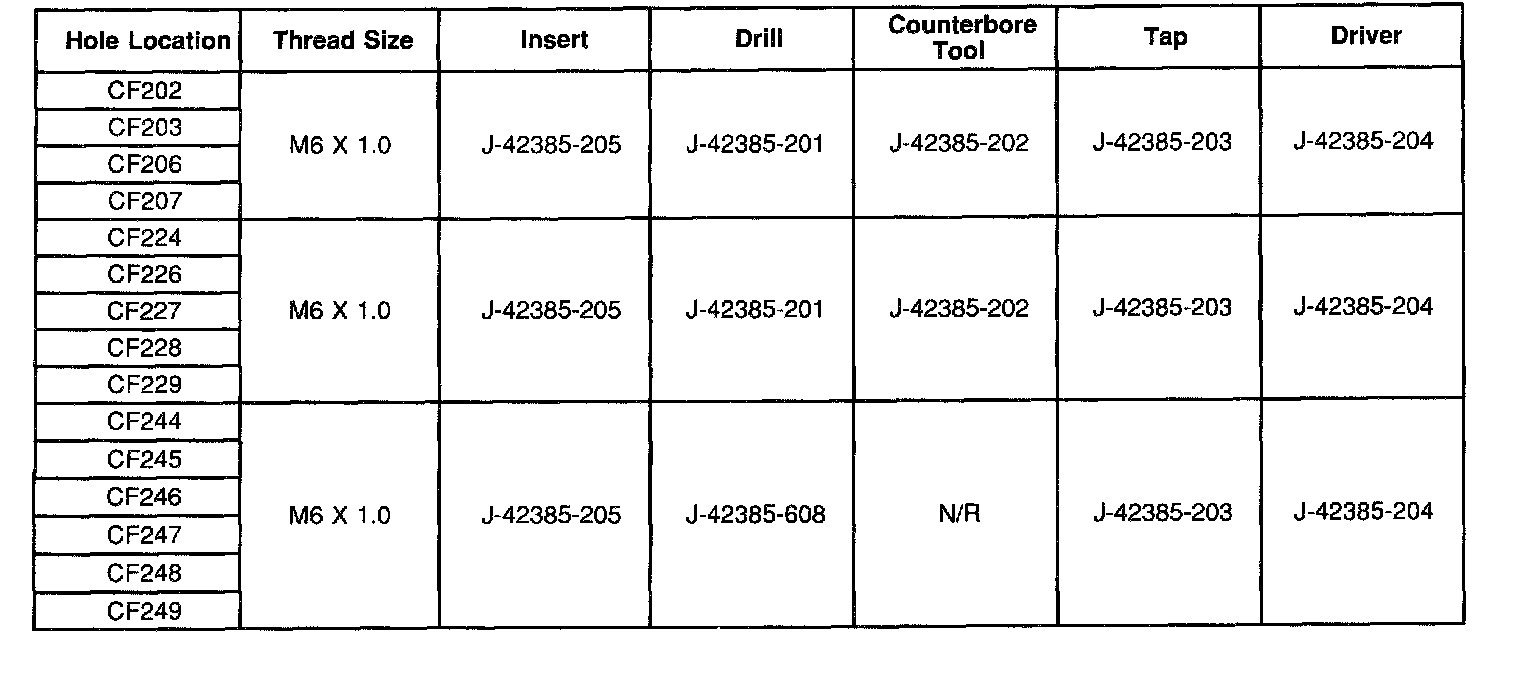

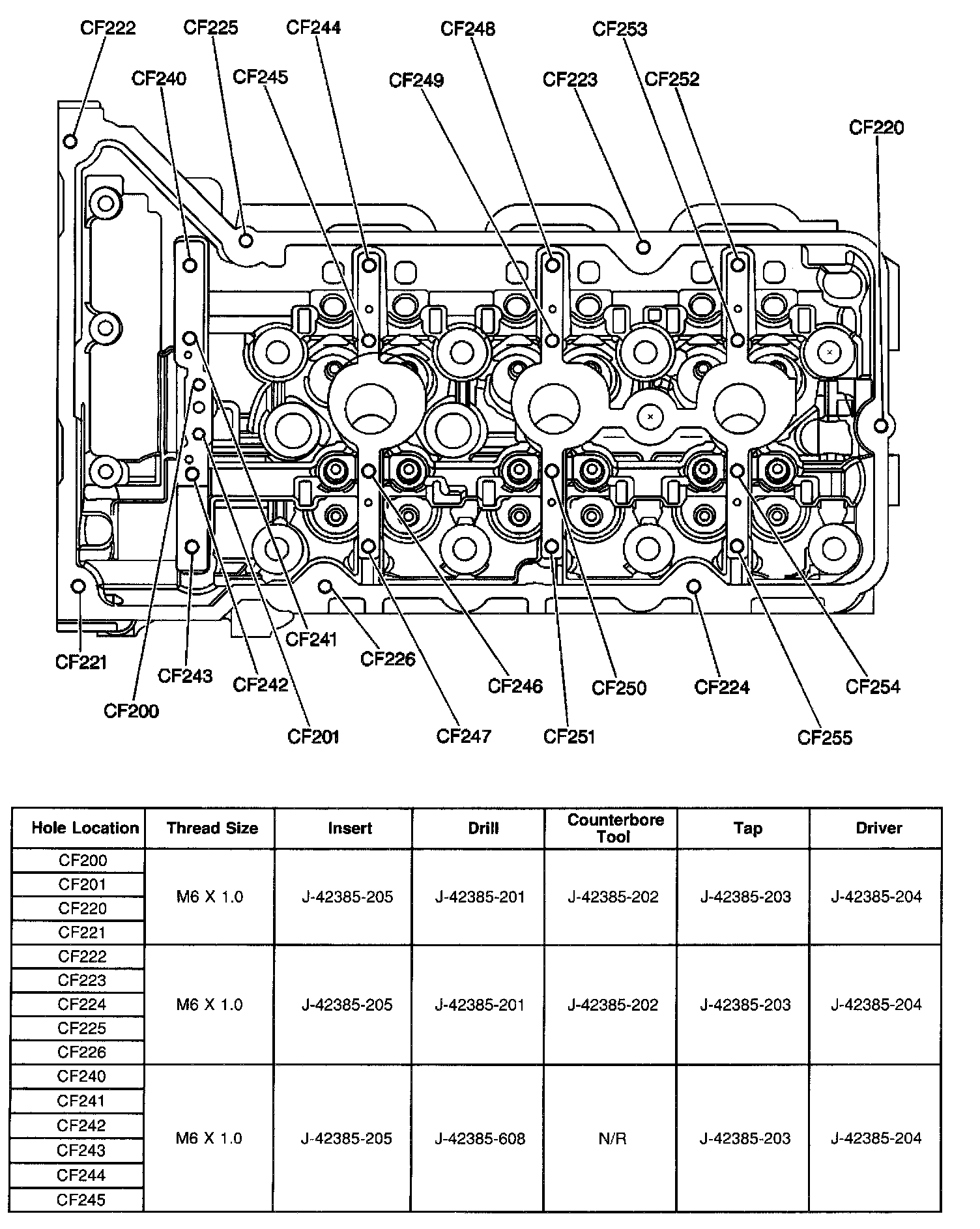

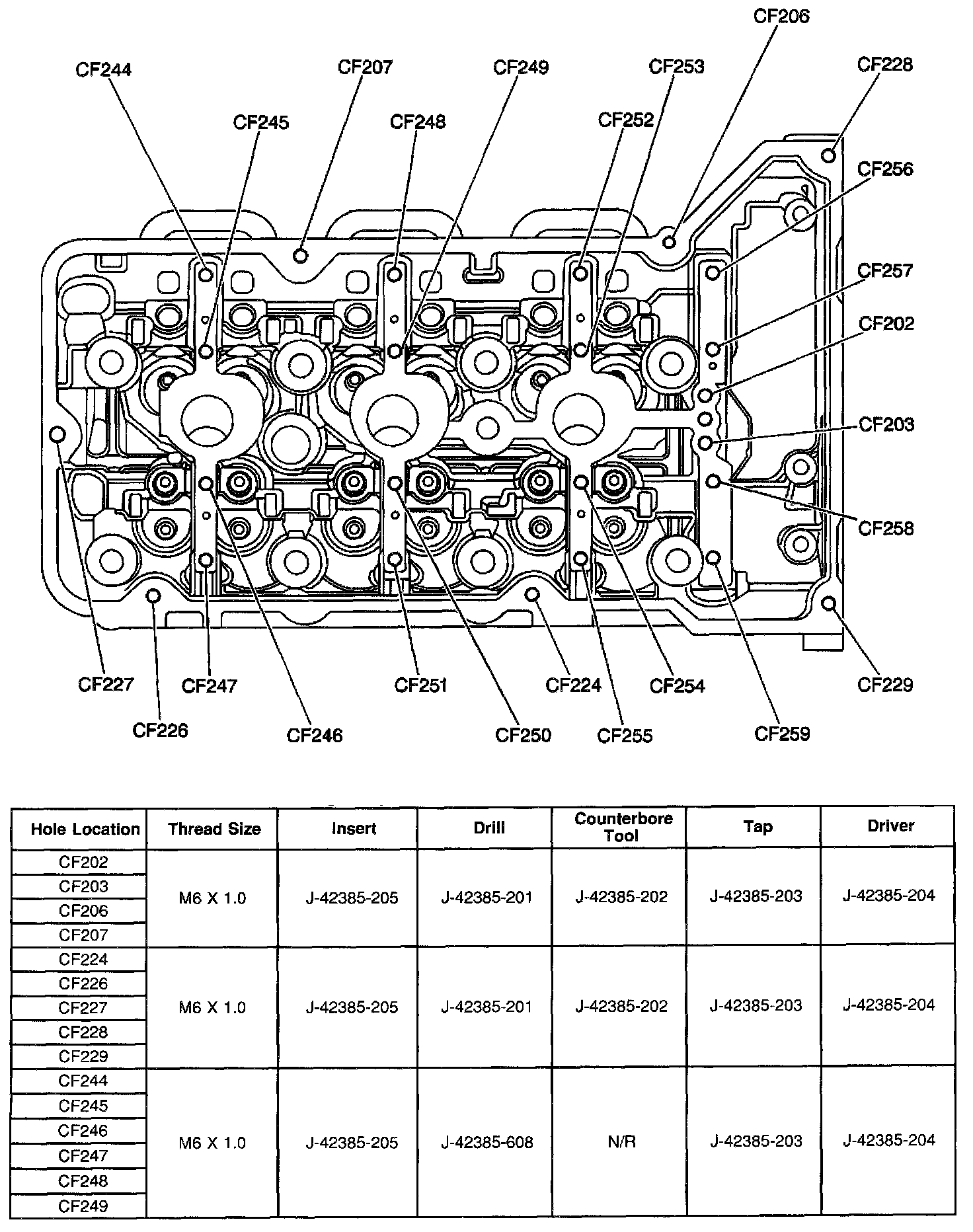

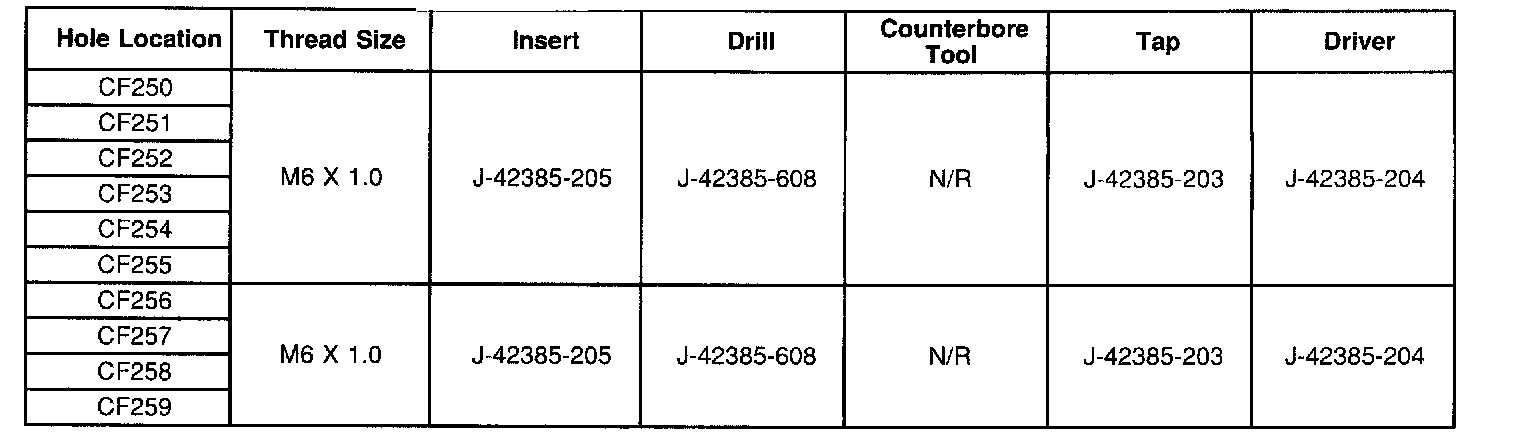

Left Cylinder Head Cam Cover Face

Part 1 of 3

Part 2 of 3

Part 3 of 3

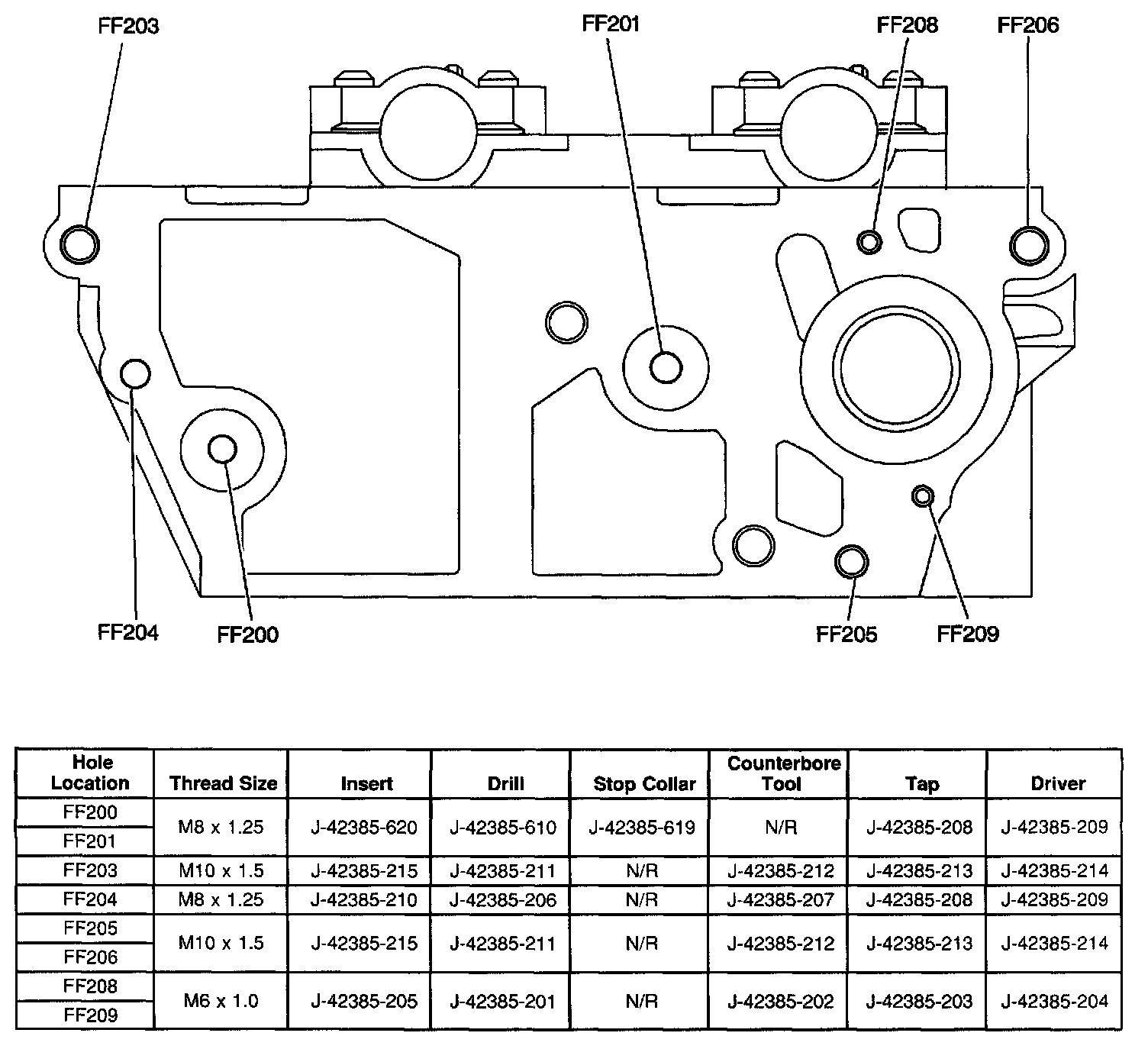

Left Cylinder Head Front Face

Part 1 of 2

Part 2 of 2

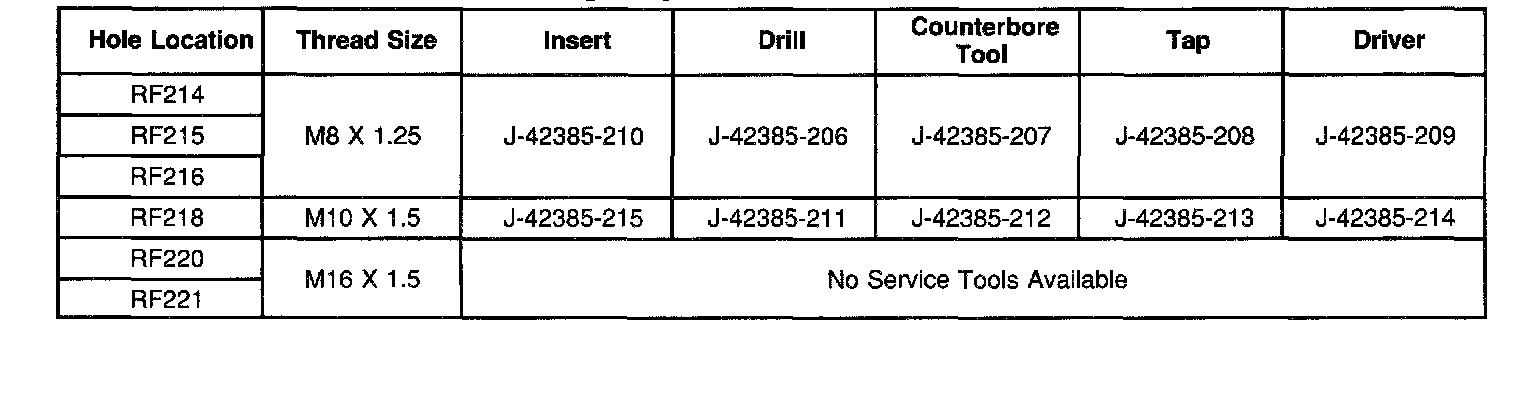

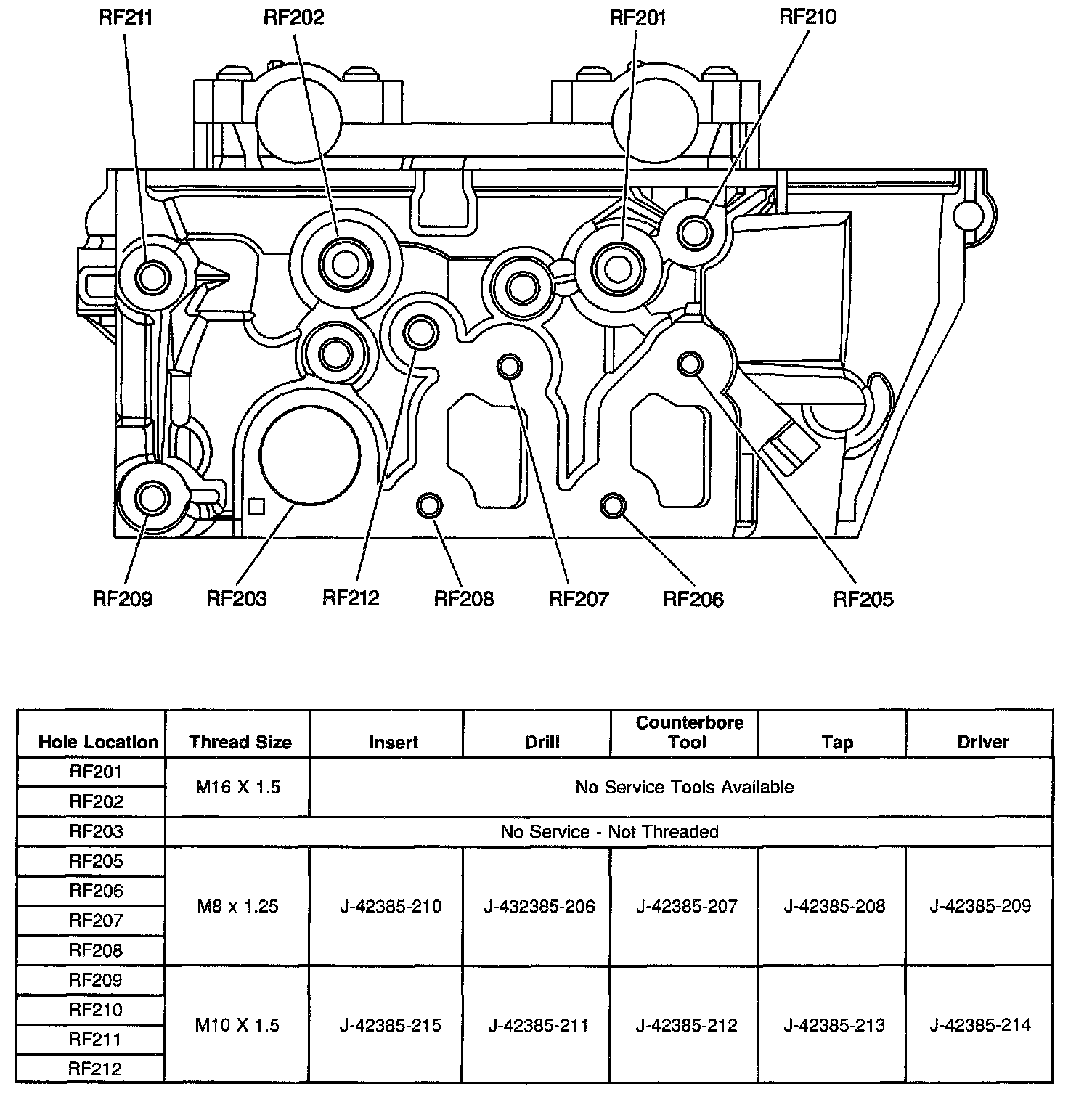

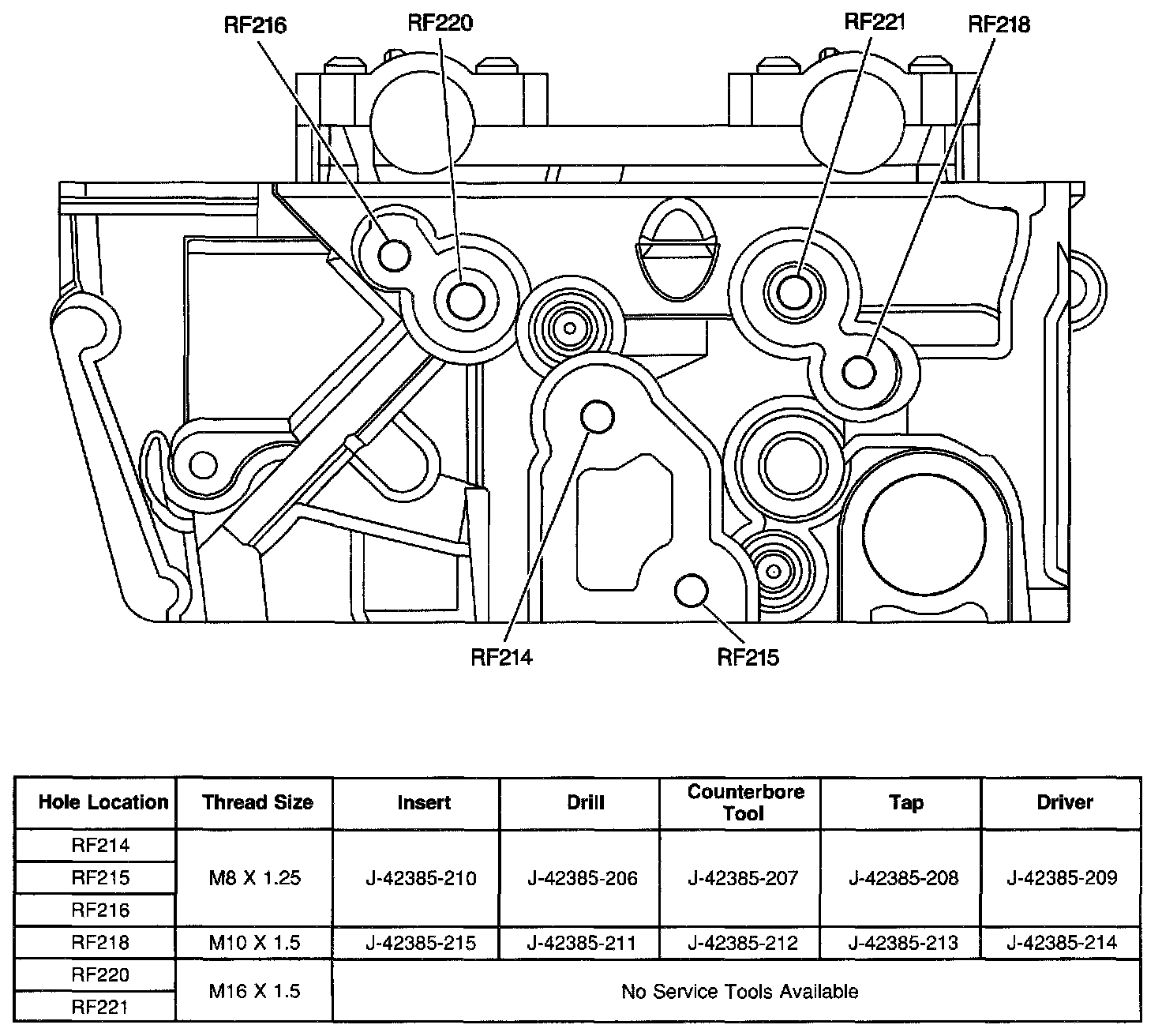

Left Cylinder Head Rear Face

Part 1 of 2

Part 2 of 2

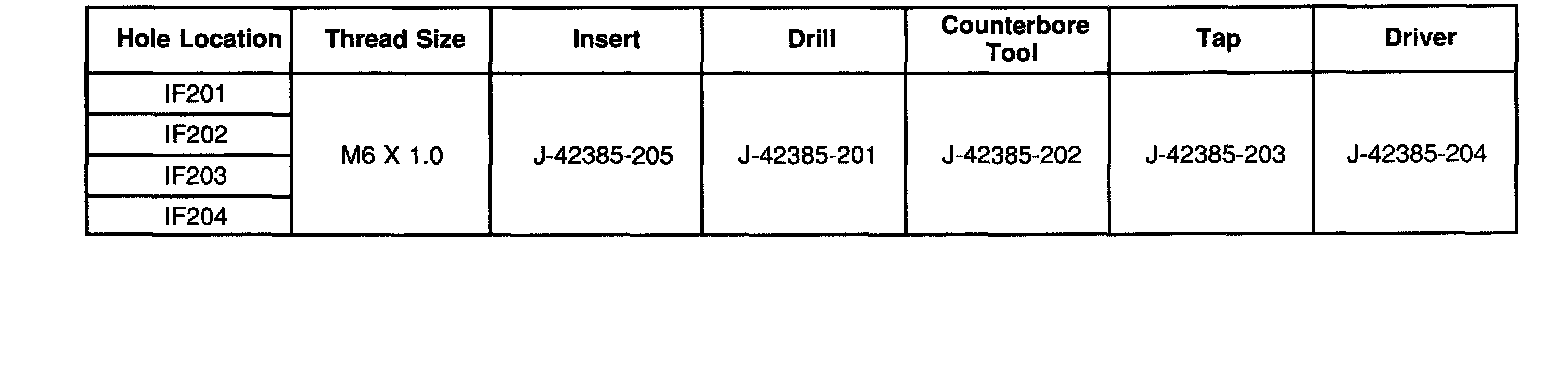

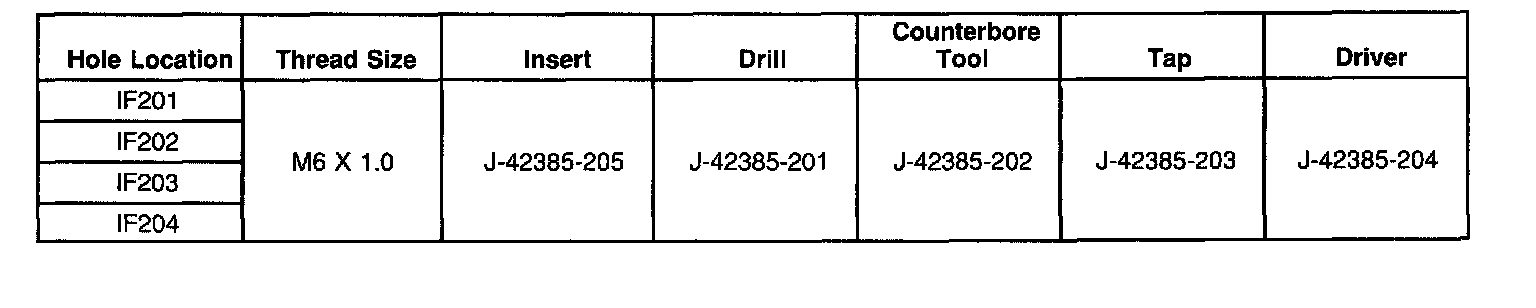

Left Cylinder Head Intake Face

Part 1 of 2

Part 2 of 2

Left Cylinder Head Exhaust Manifold Face

Part 1 of 2

Part 2 of 2

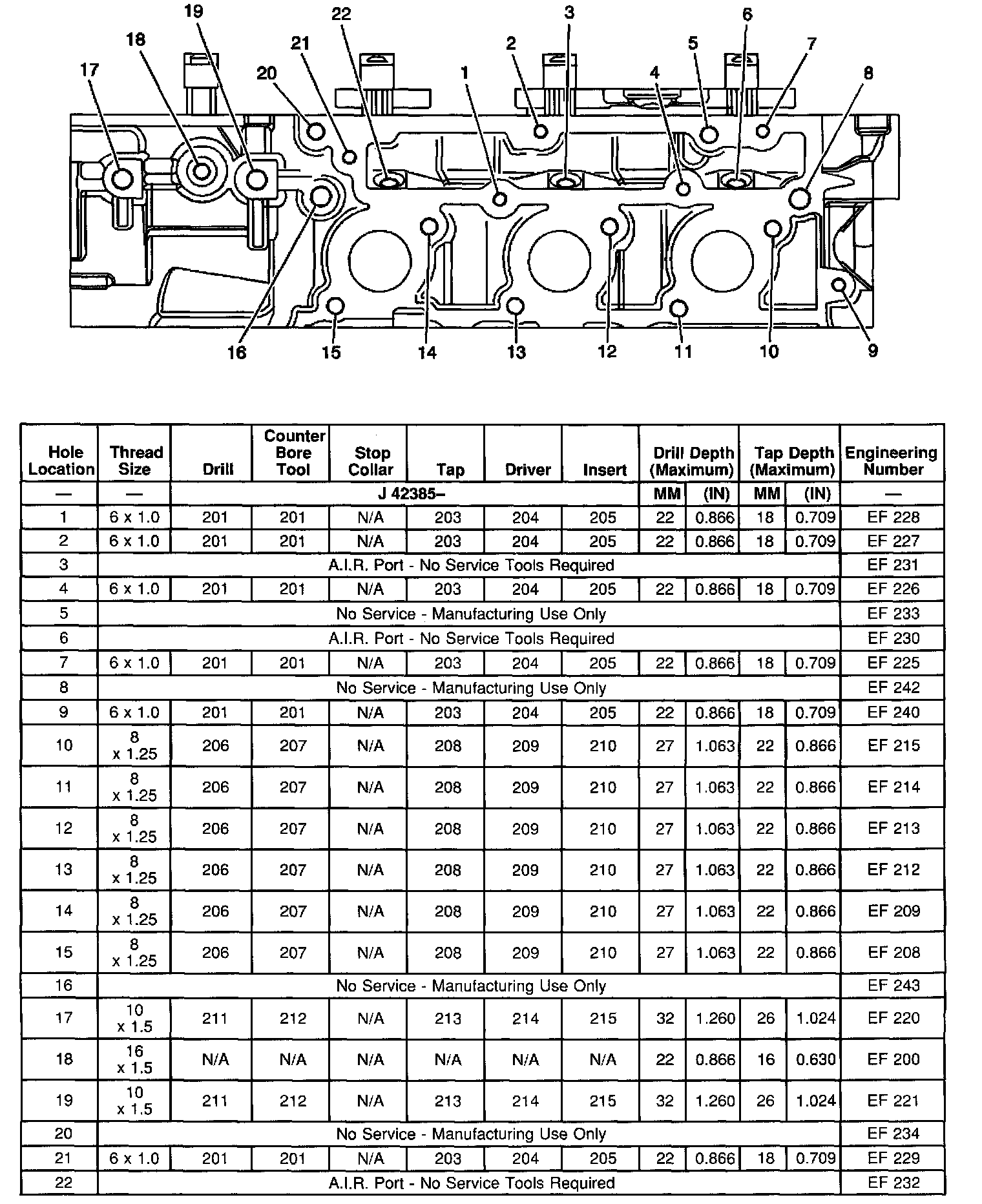

Left Cylinder Head Exhaust Manifold Face with A.I.R.

Part 1 of 2

Part 2 of 2

Right Cylinder Head Cam Cover Face

Part 1 of 3

Part 2 of 3

Part 3 of 3

Right Cylinder Head Front Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Rear Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Intake Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Exhaust Manifold Face

Part 1 of 2

Part 2 of 2

Right Cylinder Head Exhaust Manifold Face with A.I.R.

Part 1 of 2

Part 2 of 2
