Amplifier: Service and Repair
AMPLIFIER REPLACEMENTREMOVAL PROCEDURE
1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
2. Remove the rear seat back. Refer to Seat Back Replacement - Rear in Seats.

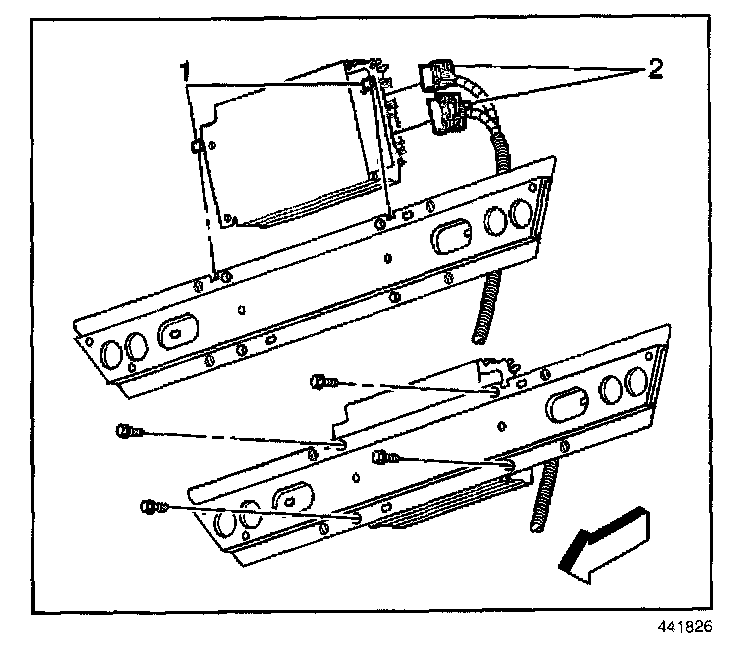

3. Disconnect the radio amplifier electrical connectors (2).
4. Remove the fasteners retaining the radio amplifier to the mounting bracket.
5. Lift the radio amplifier to remove.
INSTALLATION PROCEDURE
1. Install the alignment tabs (1) on the radio amplifier, over the mounting bracket.
2. Install the radio amplifier electrical connectors (2).
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the fasteners to retain the radio amplifier to the mounting bracket.
Tighten
Tighten the fasteners to 9 N.m (80 lb in).
4. Install the rear seat back. Refer to Seat Back Replacement - Rear in Seats.
5. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
