Driver Door Lock Actuator And Driver Door Lock Switch
Driver Door Lock Actuator And Driver Door Lock Switch

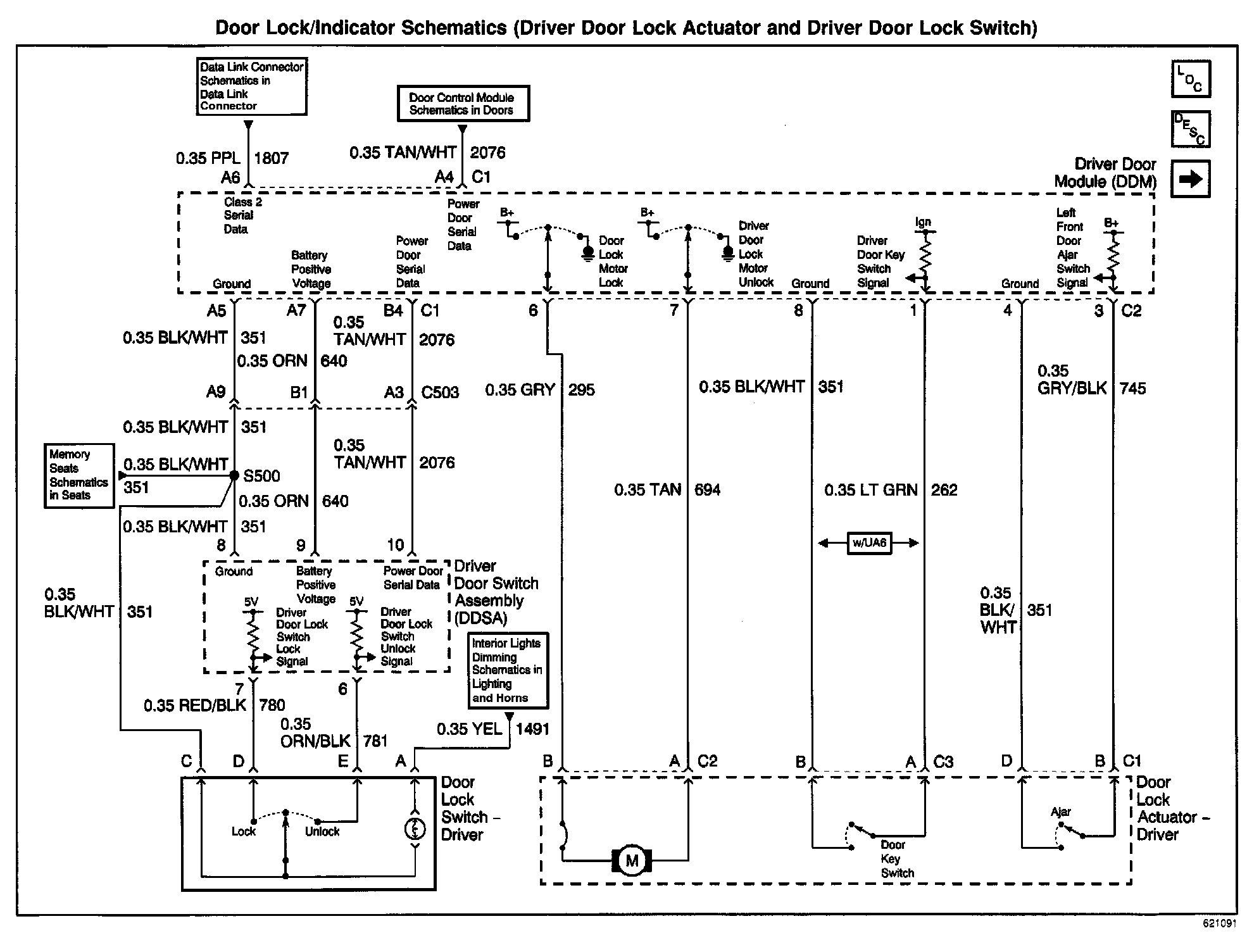

Door Lock/Indicator Schematics: Driver Door Lock Actuator And Driver Door Lock Switch:
