Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp >> Tail/Stop Lamp - Right

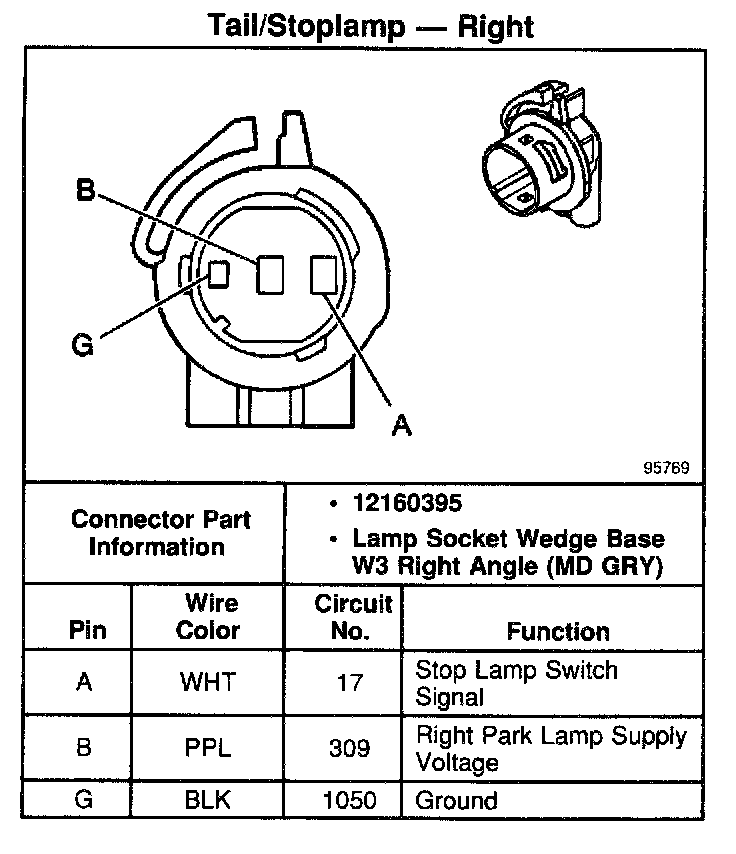

Tail/Stop Lamp - Right

Tail/stoplamp - Right:
