EVAP Vent Valve, EVAP Purge Solenoid, and EGR Valve
EVAP Vent Valve, EVAP Purge Solenoid, and EGR Valve

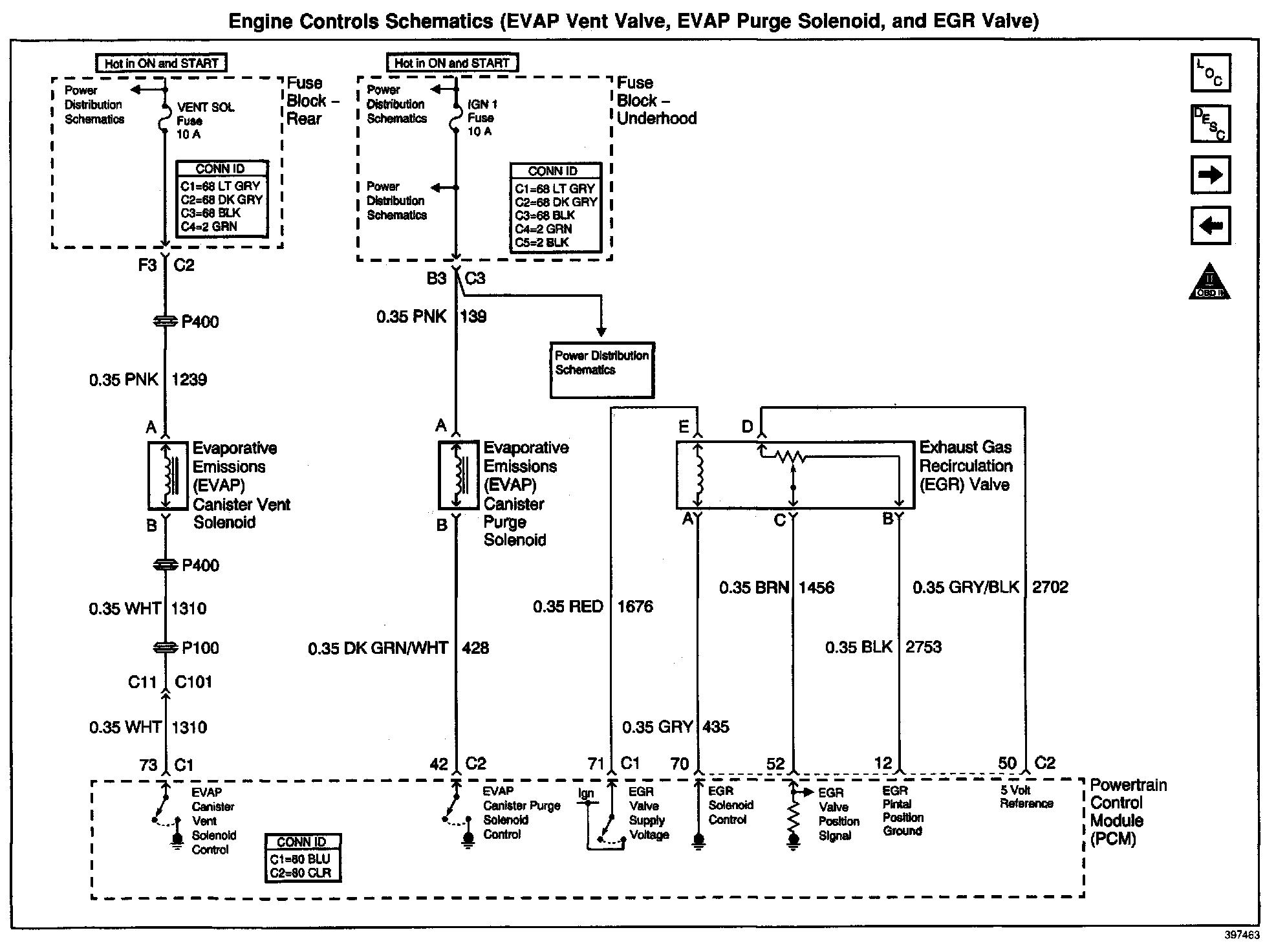

Engine Controls Schematics: EVAP Vent Valve, EVAP Purge Solenoid, And EGR Valve:
