Defroster Door Replacement

REMOVAL PROCEDURE




1. Remove the HVAC Module.
2. Remove the mode actuator.
3. Remove the left temperature actuator.
4. Remove the fasteners that retain the mode actuator bracket.
5. Remove the mode actuator bracket.
6. Remove the upper module case fasteners in order to access the door.
7. Open the module.
8. Remove the actuator cam from the door.

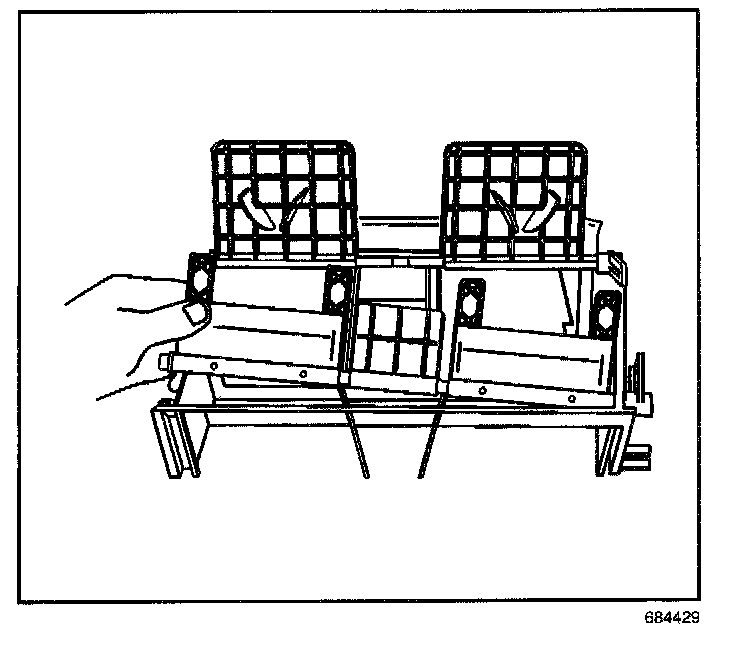

9. Remove the defroster door.

INSTALLATION PROCEDURE




1. Install the defroster door.
2. Install the actuator cam to the door.
3. Close the module case.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the module case fasteners.

Tighten
Tighten the fasteners to 1.4 N.m (12 lb in).

5. Install the mode actuator and bracket.
6. Install the HVAC module.
