Component Tests and General Diagnostics

Park Brake System Diagnosis





Step 1 - 9

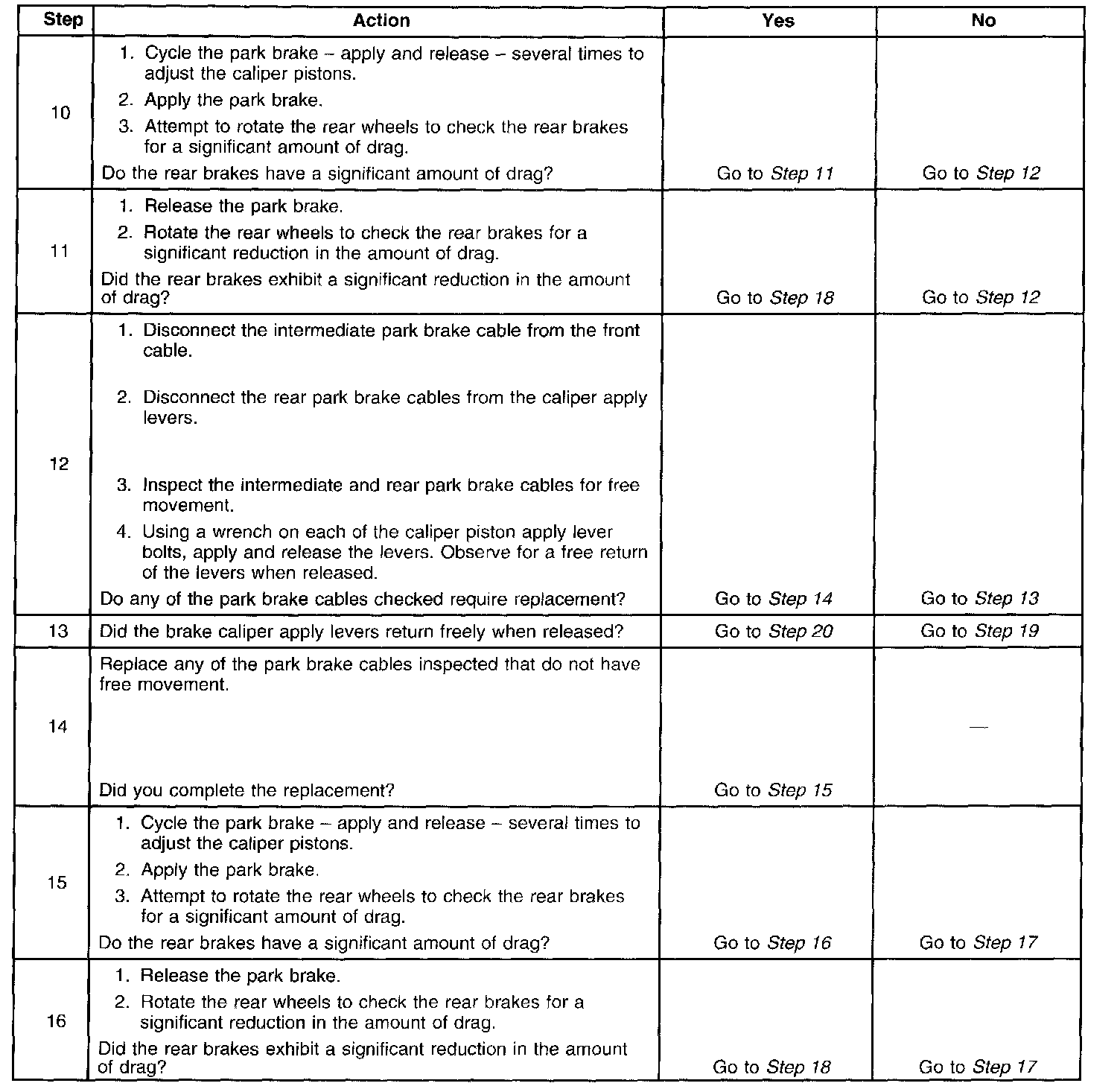

Step 10 - 16

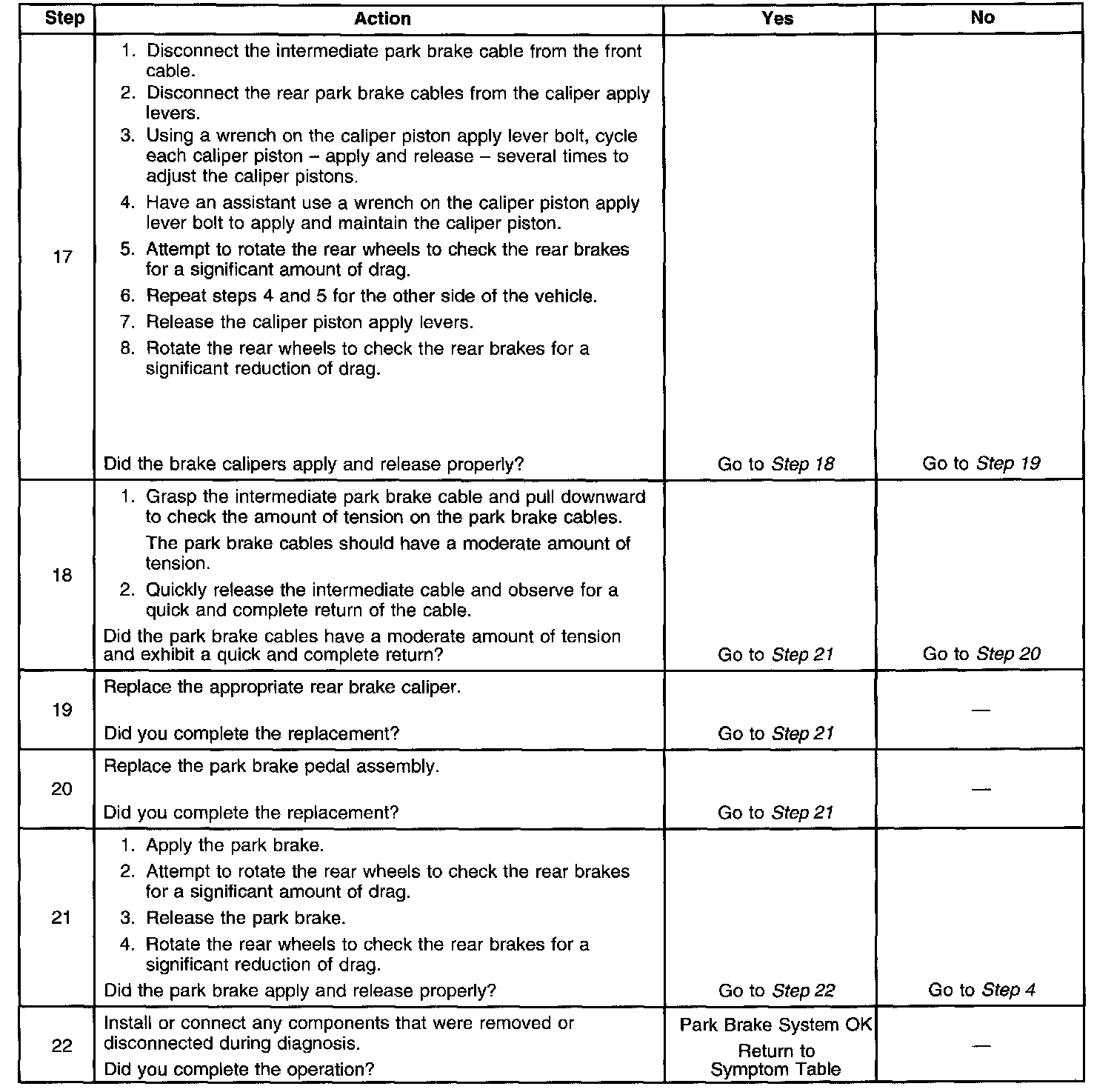

Step 17 - 22
