Shift Interlock, A/T

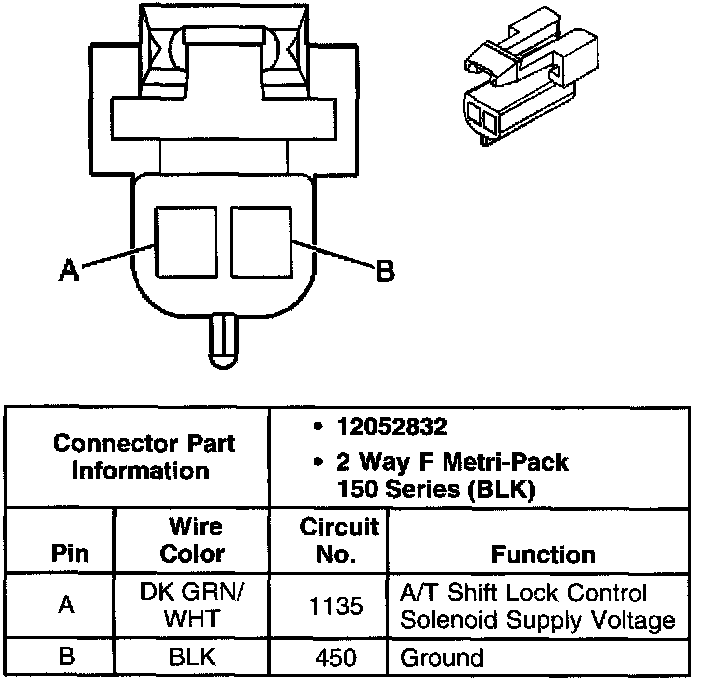

Automatic Transmission Shift Lock Control Connector End Views





Stop Lamp/AT Shift Lock Control, C1





Stop Lamp/AT Shift Lock Control, C2





Stop Lamp Switch
