C115-In Line Connector
C115-In Line Connector

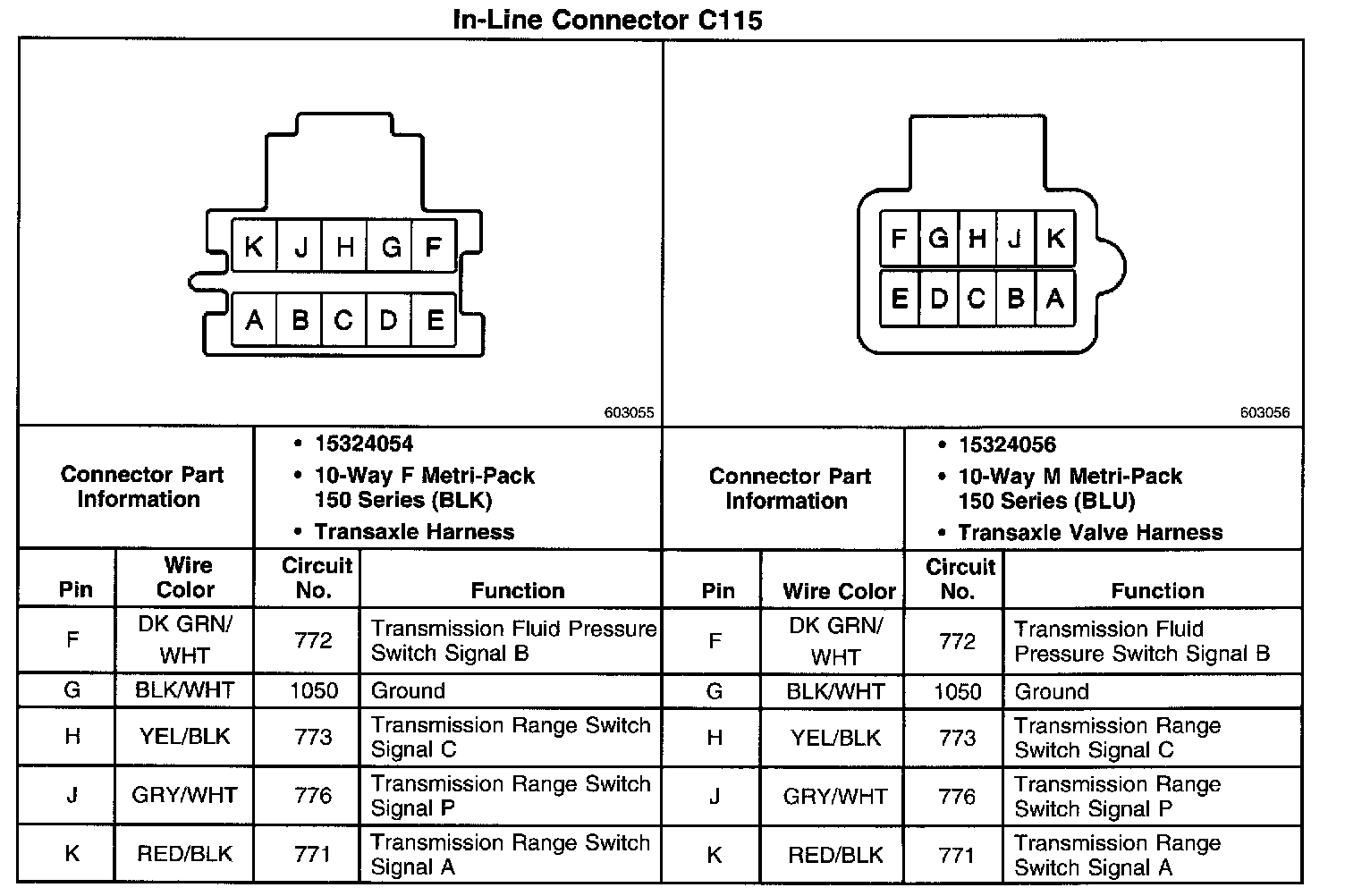

In-line Connector C115 Part 1:
In-line Connector C115 Part 2:
