C217-IP Harness Inline to LH Body Harness
C217-IP Harness Inline to LH Body Harness

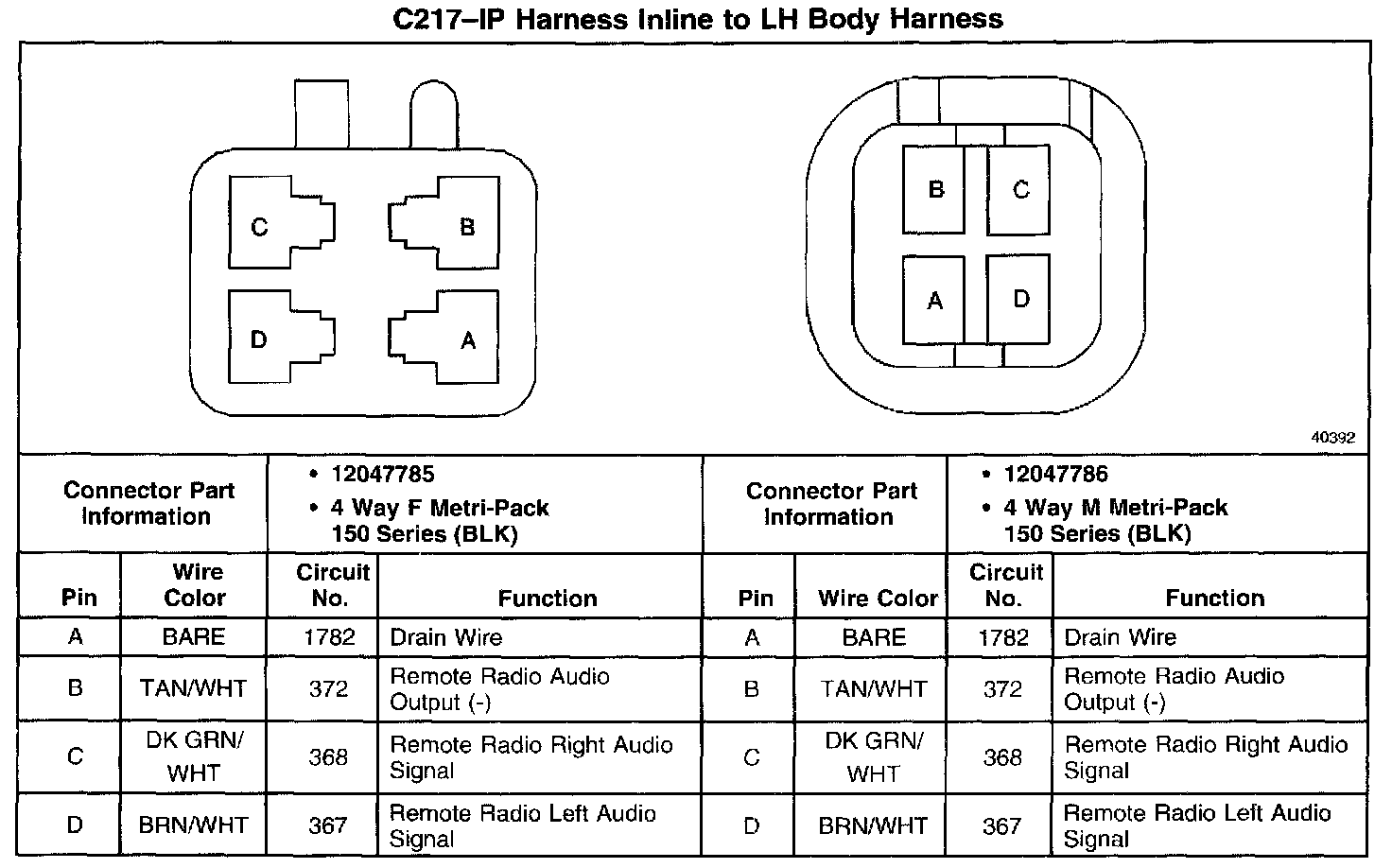

C217 - IP Harness Inline To LH Body Harness:
