C405-RH Body Harness Inline to Sunroof Harness
C405-RH Body Harness Inline to Sunroof Harness

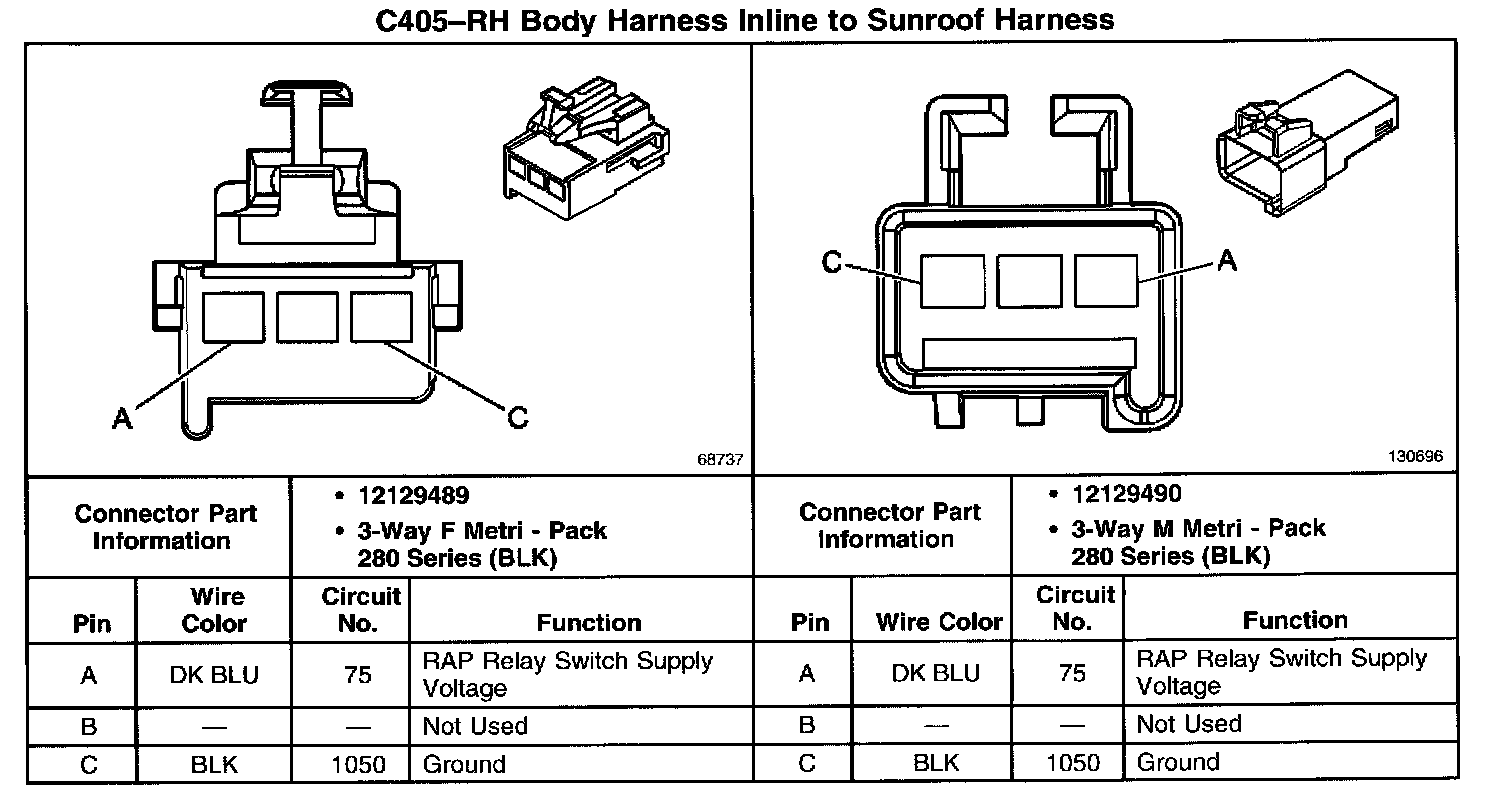

C405 - RH Body Harness Inline To Sunroof Harness:
