Aurora V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C500-C503
>>
C500-Left Front Door Harness Inline to Left Side Body Harness
C500-Left Front Door Harness Inline to Left Side Body Harness

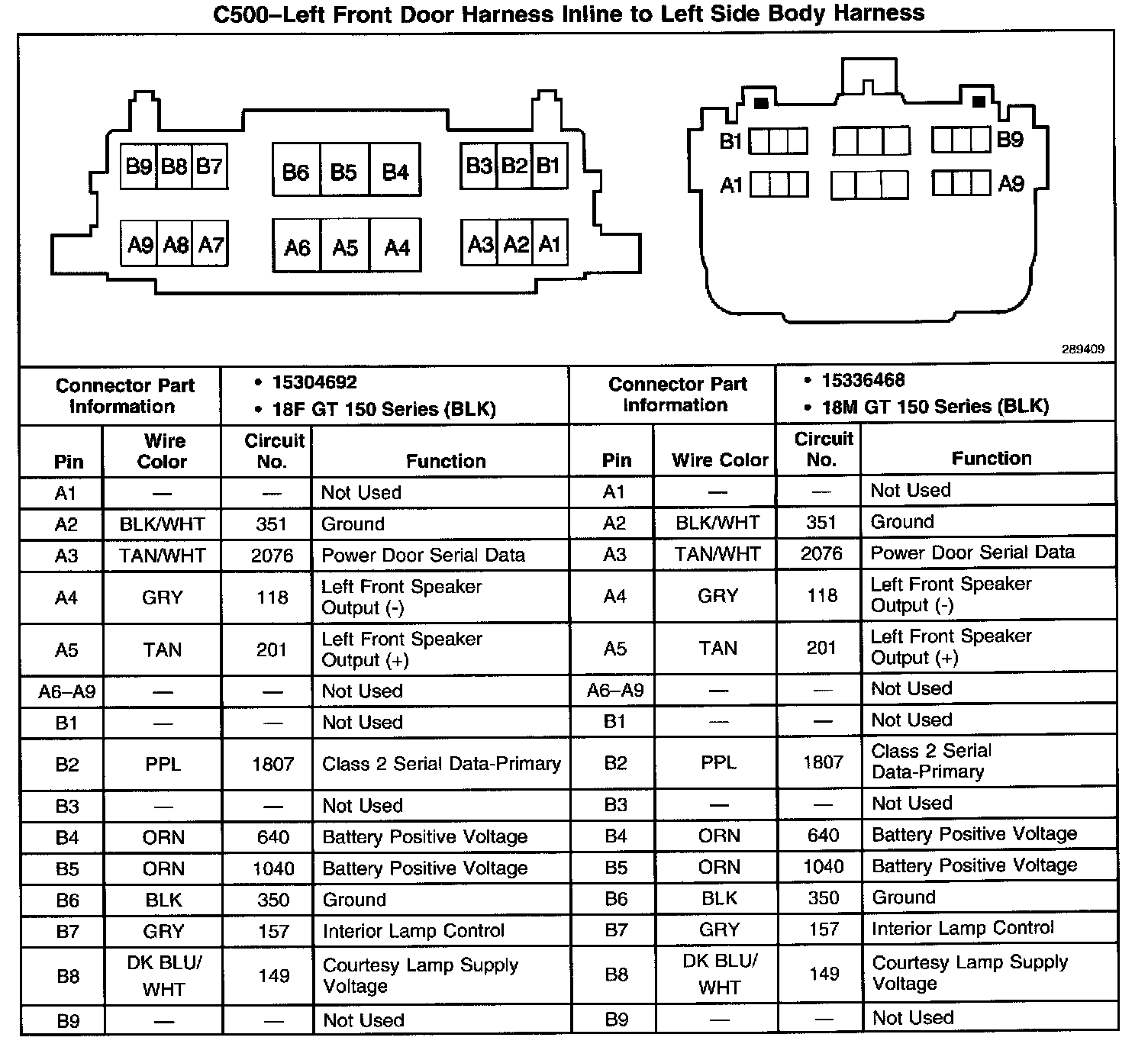

C500 - Left Front Door Harness Inline To Left Side Body Harness:
