C600-Right Front Door Harness Inline to Right Side Body Harness
C600-Right Front Door Harness Inline to Right Side Body Harness

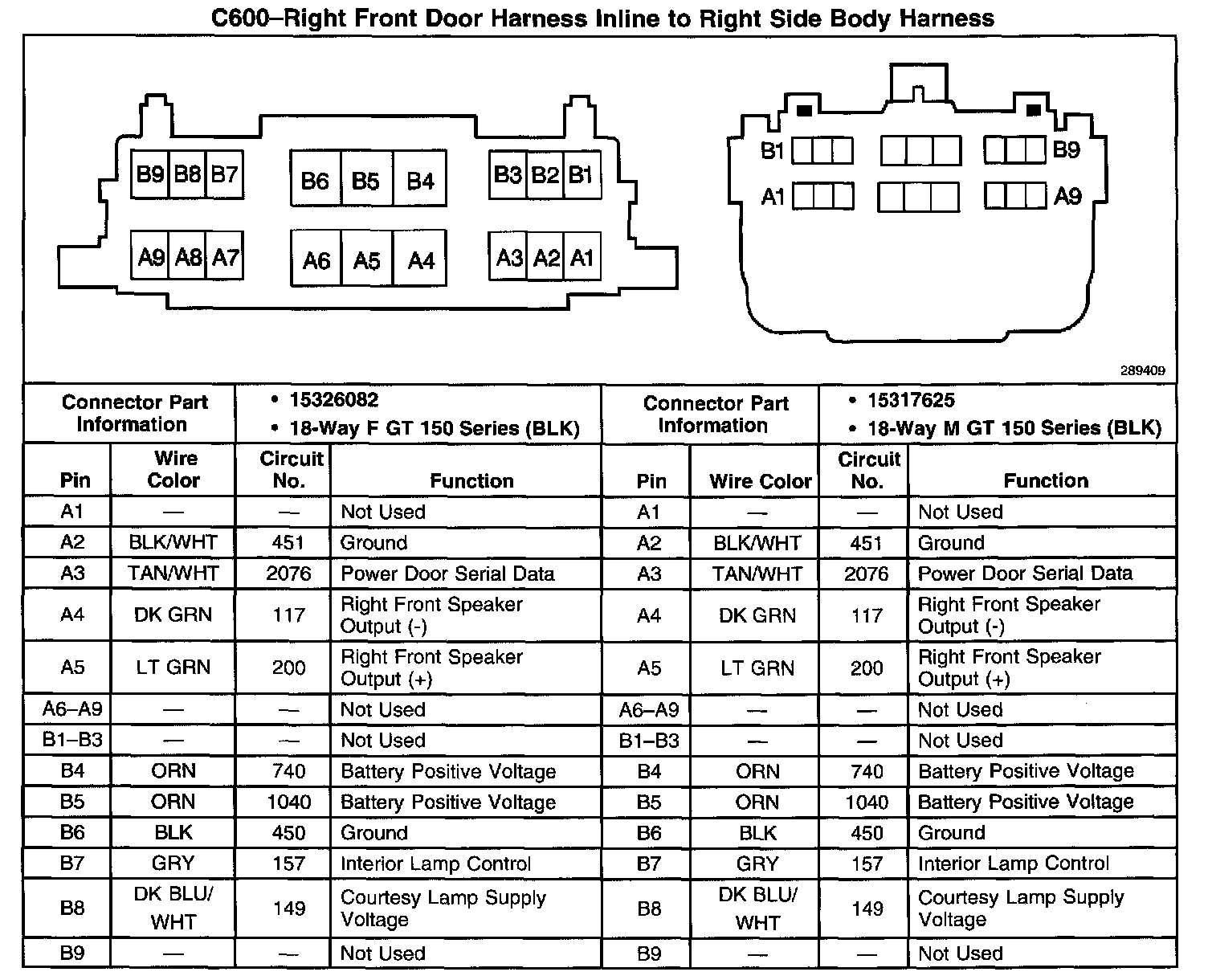

C600 - Right Front Door Harness Inline To Right Side Body Harness:
