C703-LH Rear Door Harness Inline to LH Rear Door Jumper Harness
C703-LH Rear Door Harness Inline to LH Rear Door Jumper Harness

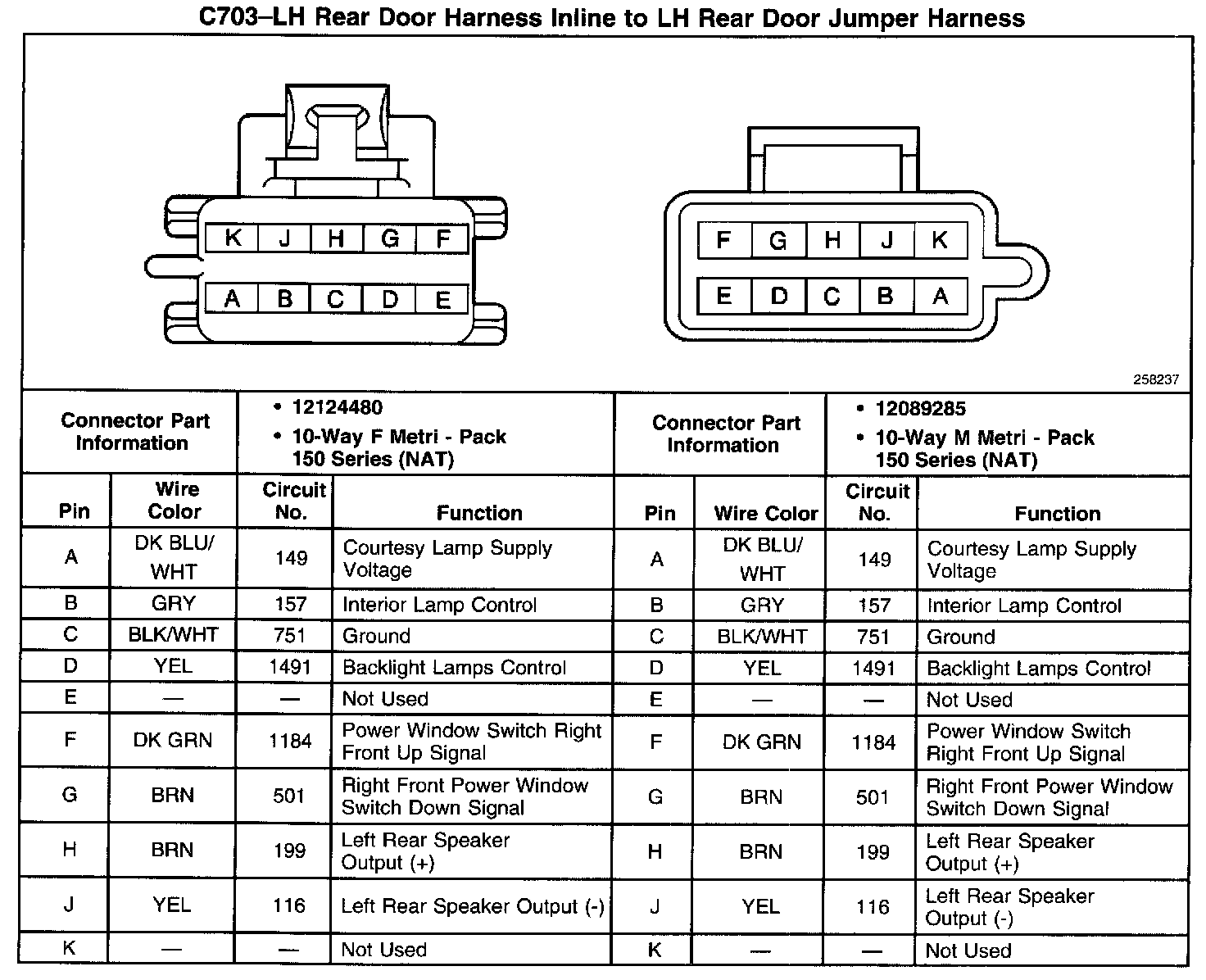

C703 - LH Rear Door Harness Inline To LH Rear Door Jumper Harness:
