C801-RH Body Harness Inline to RH Rear Door Harness
C801-RH Body Harness Inline to RH Rear Door Harness

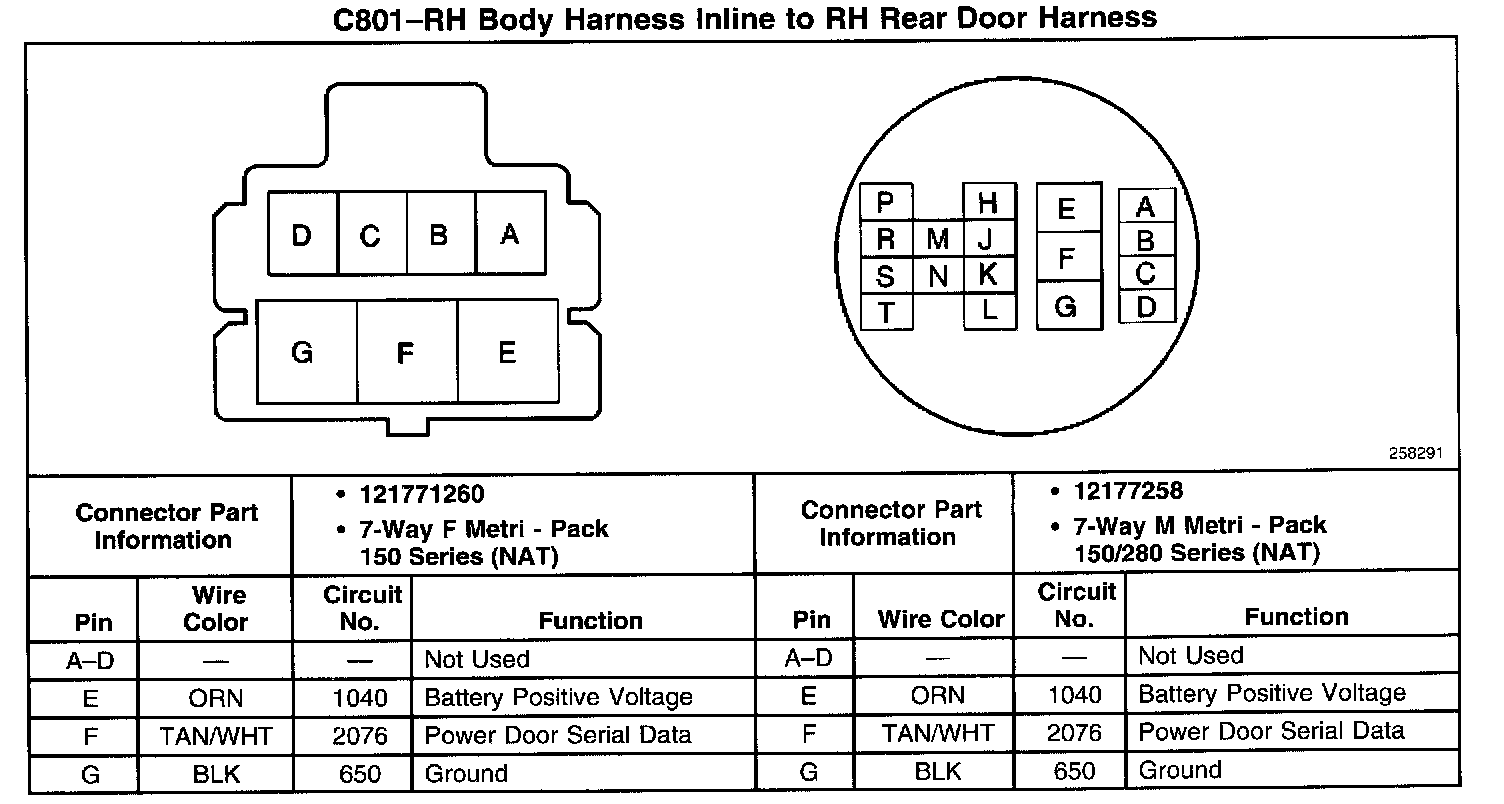

C801 - RH Body Harness Inline To RH Rear Door Harness:
